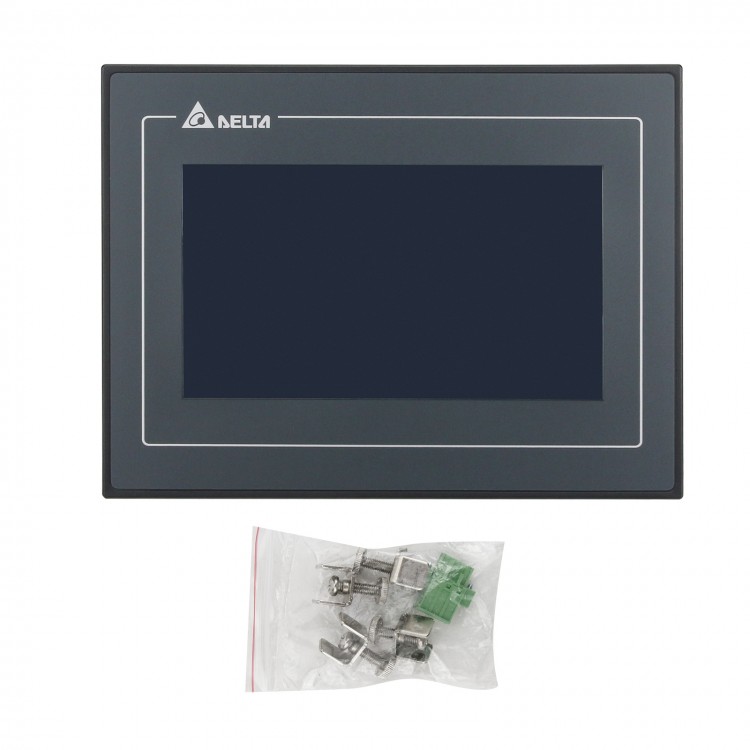

Delta DOP-107BV HMI Touch Screen Human Machine Interface 7 Inch Replace DOP -B07S411 DOP-B07SS411 B07S410

Model

DOP-103BQ

DOP-107EG

DOP-107BV

Display Type

4.3" TFT LCD (65,535 colors)

7" TFT LCD (65,535 colors)

7" TFT LCD (65,535 colors)

Resolution (Pixels)

480 x 272

800 x 600

800 x 480

LCD

MODULE

Back Light

LED Back Light

(less than 20,000 hours half-life at 25°C) (Note 1)

Display Size

95.04 x 53.856 mm

141.00 x 105.75 mm

154.08x85.92mm

luminance (cd/m2)

400 cd/m⊃2; (Typ.)

450 cd / m⊃2; (Typ.)

400 cd / m⊃2; (Typ.)

CPU

ARM Cortex-A8 (800MHz)

Flash ROM (Bytes)

256 MB

RAM (Bytes)

256 MB

Touch panel

Four-wire resistance type > 1,000,000 operated

Sound output

Buzzer

Multi-Tone Frequency (2K ~ 4K Hz)/80dB

AUX

N/A

Stereo output

N/A

Network port

N/A

1 Port, 10/100 Mbps

N/A

USB

1 USB Slave Ver 2.0,

1 USB Host Ver 2.0

SD

N/A

SD * 1

N/A

Serial COM

Port

COM1

RS-232(supports hardware flow control) / RS-485*2

RS-232 (supports hardware flow control)*2

RS-232 (supports hardware flow control) / RS485 *2

COM2

RS-422 / RS-485*2

RS-232 (supports hardware flow control) / RS-485*2

RS-422 / RS-485 *2

COM3

N/A

RS-422 / RS-485*2

N/A

Function Key

N/A

Perpetual

Calenda

Built-in

Cooling

Method

Natural air circulation

Safety Approval

CE / UL (Use shielded network cable with magnetic ring 300 ohm / 100 MHz filter)

Waterproof

Degree

IP65 / NEMA4 / UL TYPE 4X

Operation

Voltage (Note 3)

DC +24V (-15% ~ +15%) (please use isolated power supply )

 Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation)

Voltage

Endurance

AC500V for 1 minute (between charging (DC24V terminal) and FG terminals)

Power

Consumption (Note 5)

5.67W (Max)*3

8.4 W (Max) *3

8.6 W (Max) *3

Backup Battery

3V lithium battery CR2032 x 1

Backup Battery

Life

It depends on the temperature used and the conditions of usage, about 3 years or more at 25°C.

Operation

Temp

0oC ~ 50oC

Storage Temp

-20 oC ~ +60 oC

Ambient

Humidity

10% ~ 90% RH [0 ~ 40°C], 10% ~ 55% RH [41 ~ 50°C]

Pollution Degree 2

Vibration

Resistance

IEC61131-2 specifies continuous vibration 5 Hz ~ 8.3 Hz amplitude 3.5 mm; 8.3 Hz ~ 150 Hz amplitude 1G

Dimensions

(W) x (H) x (D) mm

137 x 103 x 37.1

184 x 144 x 50

215 x 161 x 35.5

Panel Cutout

(W) x (H) mm

118.8 x 92.8

172.4 x 132.4

196.9 x 142.9

weight

Approx.

 280 g

Approx.

800 g

Approx.

700 g
