DENAFRIPS ARES Ⅱ USB DAC Decoder Hifi Digital Audio Receiver High End DAC Support PCM DSD Formats

DENAFRIPS ARES Ⅱ USB DAC Decoder Hifi Digital Audio Receiver High End DAC Support PCM DSD Formats

Features:
- For ARM Asynchronous USB Sound Card Receiver: The self-developed USB sound card receiver chip has high-quality digital transmission and decoding capabilities
- SPDIF receiving scheme and FIFO buffer: Independent research and development of SPDIF, adding FIFO buffer to create first-class stability, decoding ability and adaptable range
- Adaptive synchronous up-conversion circuit: automatically converted to DAC chip appropriate sampling rate to ensure that all audio formats can be best decoded
- Original R-2R+DSD architecture: adopting 22BIT R2R+6BIT DSD architecture can not only separate architecture, but also convert DSD format audio well
- Simplified analog filter: The simplified filter allows the audio signal path to be significantly shortened, lower distortion, and improve the signal-to-noise ratio
- Using the main control chip for CYCLONE, the audio signal transmission is not distorted, and the sound quality can reach HIFI standard
- Surging power comes from its transformer: the single crystal copper wire is wound layer by layer to make the power supply stable and strong, and meet the strict speaker load conditions. The homemade transformer can effectively reduce the noise floor and low frequency
- Large capacity and stable output: Large-capacity audiophile capacitors can easily enhance dynamic capabilities, making every note behave vividly and vividly
- Classic appearance, rigorous internal structure, high-quality internal parts. Independent research and development, efficient and stable. Original R-2R+DSD architecture. Large-capacity capacitors improve dynamic capabilities
- Hard core inner core, strong decoding: DSD hard decoding of whole system supports DSD hard decoding of all USB devices, for IOS, Android, computer, etc., high-speed operation and smooth operation
- Optical/coaxial one-wire connection, with balanced output. Each channel is decoded by R-2R, with small linear error, fast decoding speed, low digital noise, less audio signal loss and very low background noise, allowing listeners to experience a more realistic music quality

Specifications:
- Product model: ARESⅡ
- AC power supply: 115-230V, 50/60HZ
- Power consumption: <30W
- Frequency response: ≤0.004% (1KHz, A-weighted)
- Analog output (RCA): 2.2(+/-10%) ⅤRMS (1KHz)
- Analog output (XLR): 4.4(+/-10%) ⅤRMS (1KHz)
- Support format (DSD): 2.8224MHz (DSD1X) All Input 5.6448MHz (DSD2X), 11.288MHz (DSD4X) USB Only
- Support format (PCM): 24bit/44.1, 48, 88.2, 96, 176.4, 192, 352.8 (USB), 384 (USB) kHz
- Signal to noise ratio: 115dB (RCA), 114dB (XLR)
- Dynamic range: >119dB (RCA), >120dB (XLR)
- Stereo crosstalk: ≤-124dB (RCA), ≤130dB (XLR)

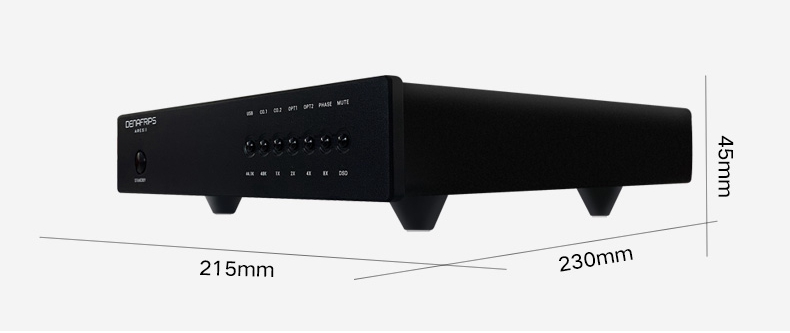

- Product size: 215*230*45mm (excluding the sizes of connectors nor base)
- Weight: 3.5kg

Package Included:
- 1 x Set of DAC Decoder

Note:
- It is assembled and ready to use.
