Denafrips Black ARES12th-1 DAC DSD1024 Digital Audio Decoder HiFi Enthusiasts R2R Digital Audio Converter

Denafrips Black ARES12th-1 DAC DSD1024 Digital Audio Decoder HiFi Enthusiasts R2R Digital Audio Converter

Features:
- I2S input
- Real NOS R2R digital audio converter

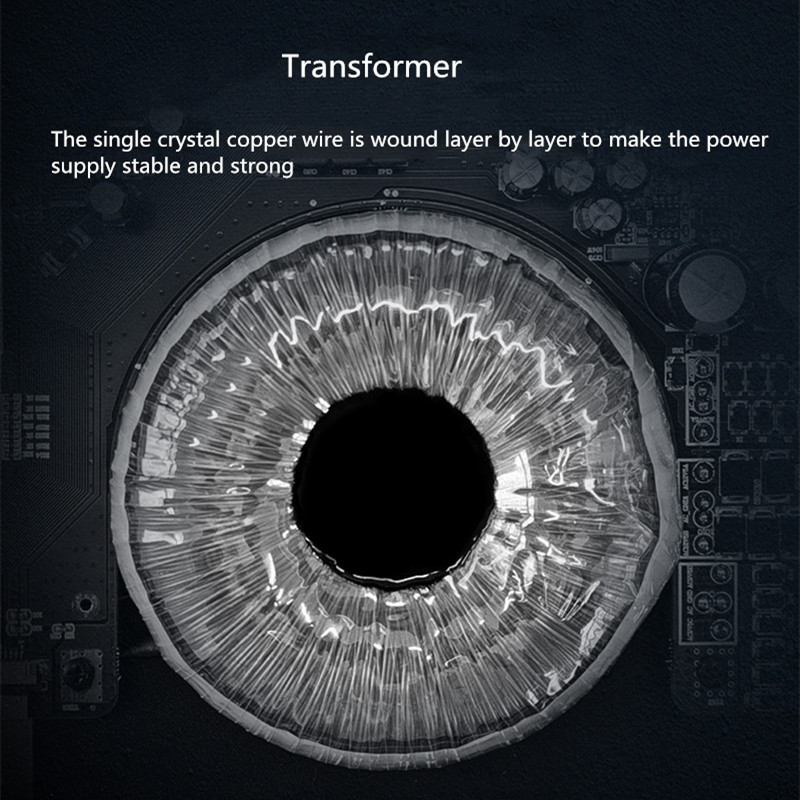

- Enhanced power supply, UPOCC copper cable
- Anodized aluminum chassis
- Specific R2R + DSD framework
- Real-balance 24bits R2R + 6bits DSD (32 level FIR filter)
- 0.01% resistor with low thermal effect and high-precision manual matching
- Nanosecond crystal 45.1548 MHz, 49.152 MHz
- Low noise power supply
- First in, first out buffer
- Digital signal processing through FPGA
- DSD1024 and for PCM1536 support USB input
- STM32F446 proprietary USB audio solution through advanced MCU based on AMR
- Licensed Thesycon USB Driver for Windows Platform
- Driverless for Mac&Linux
- DSD64-DoP connects all inputs
- DSD1024: USB input only
- 24bit/44.1, 48, 88.2, 96, 176.4, 192KHz for all inputs
- 1535kHz for USB input

Digital Input:
- Coaxial x 1
- OPT x 1
- I2S x 1
- USB2.0 B-type

Analog output:
- RCA: 2.0Vrms, 625ohm
- XLR: 4.0Vrms, 1250ohm

Specification:
- Frequency response: 20 - 70KHz, -3dB
- THD error value: 0.004%
- SNR: 115dB
- Dynamic range: >119dB
- Stereo crosstalk: -124dB
- AC power requirement: 100 - 240VAC, 50/60Hz
- Fuse: T2A/250VAC, 5 x 20mm 2A slow fuse
- Power consumption: ≤20W
- Size: W x D x H = 215 x 230 x 45mm
- Weight: 3.5kg

Package Included:
- 1 x DAC
- 1 x Power Cable
