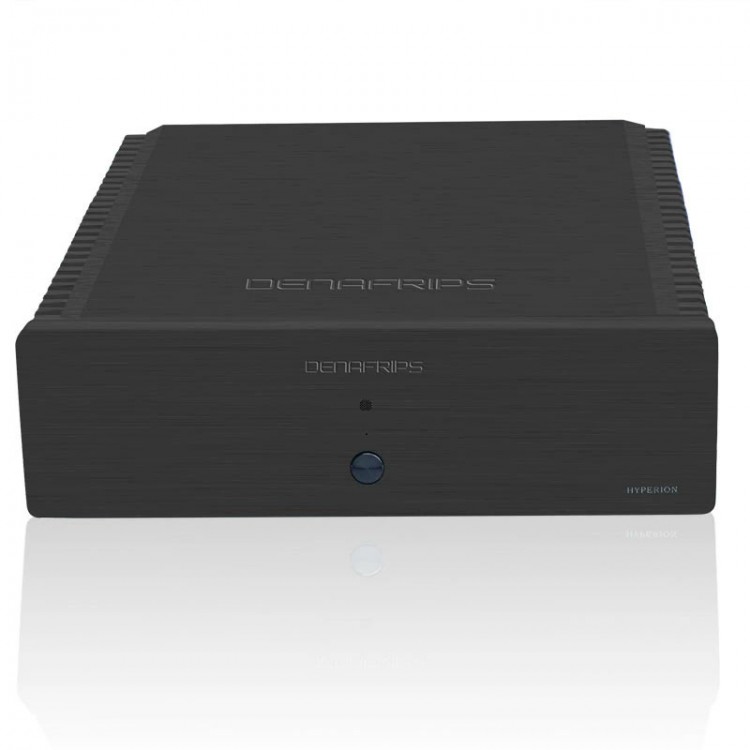

Denafrips Black HYPERION Class A High Power HiFi Audio Player Power Amplifier with 300W Transformer
Description:
- HYPERION is a completely discrete, low distortion, broadband, and high-speed pure Class A power amplifier.
- The power supply adopts a high-quality 300W ring transformer, with a specially selected A-grade iron core without breakpoints and high-purity copper wire fired. The power supply has low internal resistance, good transient response, and overall performance is better than the general 500W ring transformer.
- Equipped with 18 large energy storage capacitors (35V, 8200uF) and high-speed switching Schottky diodes, providing sufficient DC power for modular power amplifiers.
- HYPERION adopts a front and rear stage high and low voltage power supply method, and small signals are filtered electronically to ensure that the power supply of its amplification circuit is very pure, effectively isolating power noise. Through this power supply method, even close to the speaker, no high-frequency or low-frequency noise can be heard at all. The driver stage adopts for Toshiba transistor 2SC5171/A1930, which has excellent high-frequency characteristics. The output adopts for Sanken transistors 2SC2837/2SA1186BTL to form a power output circuit, which has a small power but wide frequency response.
Specification:
- AC power: 110/240VAC, 50/60Hz
- Power consumption: 35W (standby), 365 (operating)
- Frequency response: 10 - 80kHz (-2.2dB)
- THD + N: 0.00125%
- Gain: 30dB
- SNR: 118dB
- Dynamic range: > 121dB
- Stereo crosstalk: -110dB
- Input impedance: 22kohm
- Output port: 4mm speaker terminal x 4
- Input port: XLR
- Size: W x D x H = 320 x 380 x 125mm
- Weight: 12kg
Package Included:
- 1 x Power Amplifier
