DENAFRIPS GAIA USB Digital Interface Digital Player High Power High Definition DAC Decoder Silver
Features:
- Lossless decoding, lossless sound quality, multiple input, efficient decoding chip
- Main control EP4CE22 high-efficiency chip is adopted, the audio signal transmission is not distorted, and the sound quality can reach HIFI standard
- Surging power comes from the transformer: the single crystal copper wire is wound layer by layer to make the power supply stable and strong, and meet the strict speaker load conditions. The self-made transformer can effectively reduce the noise level and low frequency
- GAIA uses constant temperature dual crystal oscillators, which can accurately restore audio signals of different sampling rates, greatly reducing jitter and significantly improving stability
- Proprietary USB interface: GAIA is equipped with a proprietary USB audio solution driven by STM32F446, which supports 24bit/768KHz pcm data stream and DSD to DSD512 processed at this level
- Digital isolation achieves high signal-to-noise ratio: the digital signal is completely isolated by a 50Mbps high-speed optocoupler. Optical isolation can reduce the noise floor and achieve a high signal-to-noise ratio
- A tribute to the classic design: the body material is made of metal aluminum by CNC high-precision processing, and the grip is comfortable, injecting modern beauty into the industrial design, and paying tribute to the classic is also a good foundation for ensuring good sound
Parameters:
- Product model: GAIA
- AC power supply: 110-230V, 50/60HZ
- Power consumption: <30W

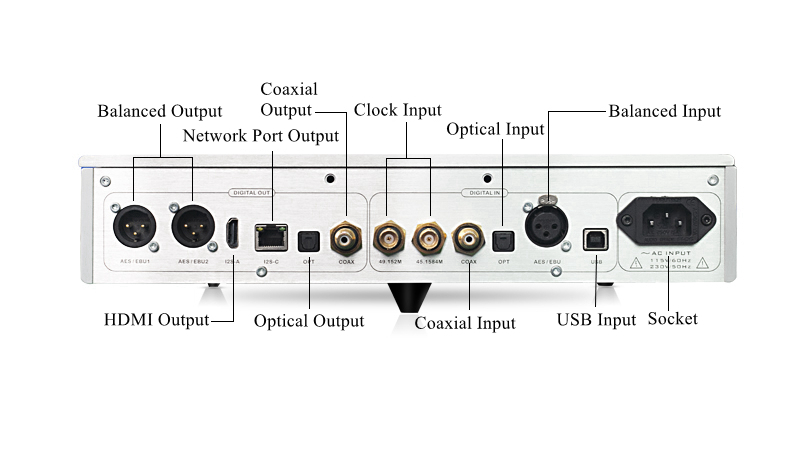

- Digital input: Coax SPDIF via RCA, TOSLink x 1, AES/EBU x 1, USB
- External clock input: 49.152MHz, 45.1584MHz
- Digital output: Coax SPDIF via RCA, TOSLink x 1, AES/EBU x 2, I2S HDMI LVDS Standard, I2S RJ45 LVCMOS Standard
- Support format (DSD): DSD64 All Input, DSD64-DSD512 USB & I2S Only
- Support format (PCM): 24bit/44.1, 48, 88.2, 96, 176.4, 192kHz All Input 44.1-768kHz USB & I2S Only
- Product size: 33.6 x 24.7 x 6.5cm (excluding terminal and base size)
- Net weight: 6.0kg
Package Included:
- 1 x Set of Digital Interface Digital Player
