| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $1,970.95 | $1,930.72 | $1,870.39 | $1,789.94 | Contact US |

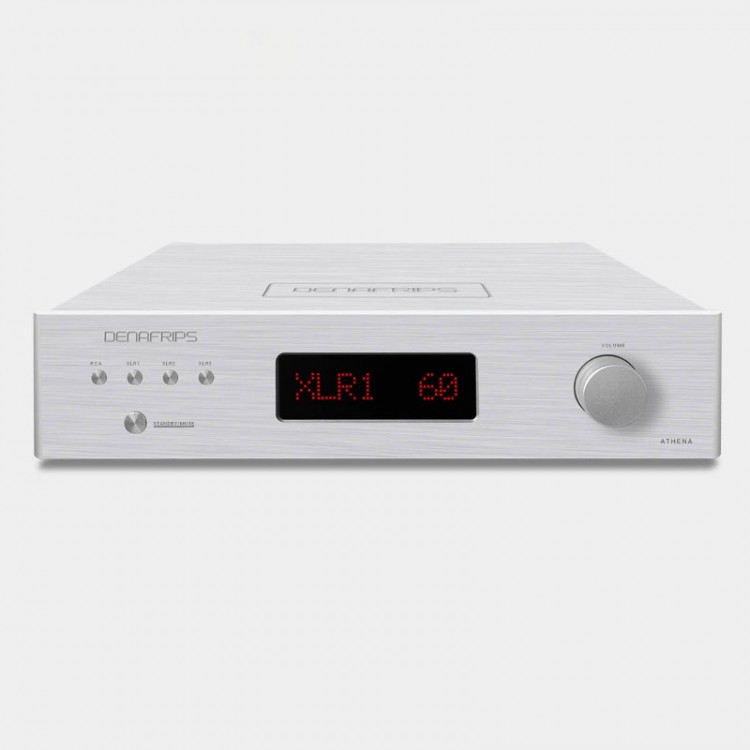

Denafrips Silvery ATHENA12th Full Balanced DAC HiFi Speaker Power Amplifier Audio Decoder Preamplifier
Features:
- The metal panel is made of traditional aluminum alloy material with wire drawing process, effectively protecting the internal electronic components of the machine.
- The encapsulated power box is located at the lower layer of the main control board, with a double layer MU metal sheet shielding in the middle, effectively suppressing harmful EMI/EMF generated by the PSU. Multi stage low voltage drop (LDO) regulators and large capacitor banks can easily provide clean power for Class A circuits.
- Large capacity capacitor easily improved the dynamic ability.
- The main control board is equipped with 77 relays for Omron, current driven Darlington array network and precisely matched military standard metal film resistors, which can achieve outstanding channel balance.

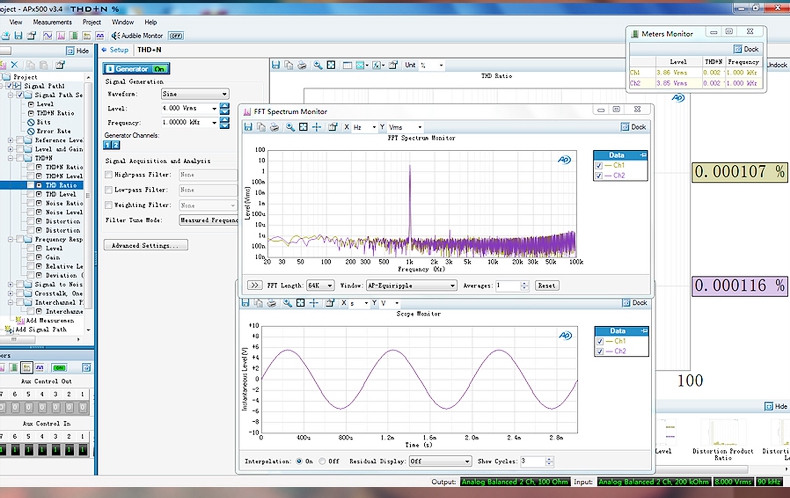

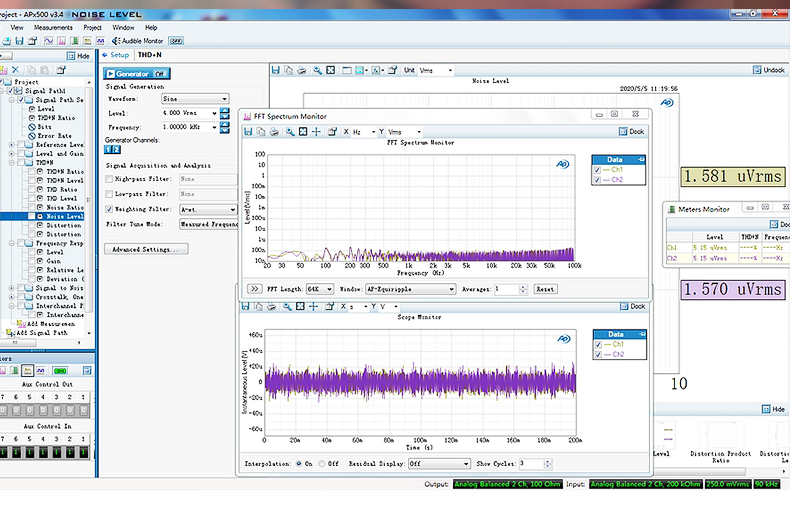

- Each machine has undergone AUDIO PRECISION APX500 testing to ensure that all machines shipped are intact and undamaged.
Specification:
- Model: ATHENA12th
- AC power: 110 - 240V, 50/60Hz
- Power consumption: 1W (standby), 25W (operating)
- Frequency response: 10 - 85kHz (-0.3dB)
- THD + N: 0.00012%
- SNR: 127dB
- Dynamic range: >121dB
- Stereo crosstalk: -110dB
- Input impedance: 12.2ohm
- Output impedance: 200ohm

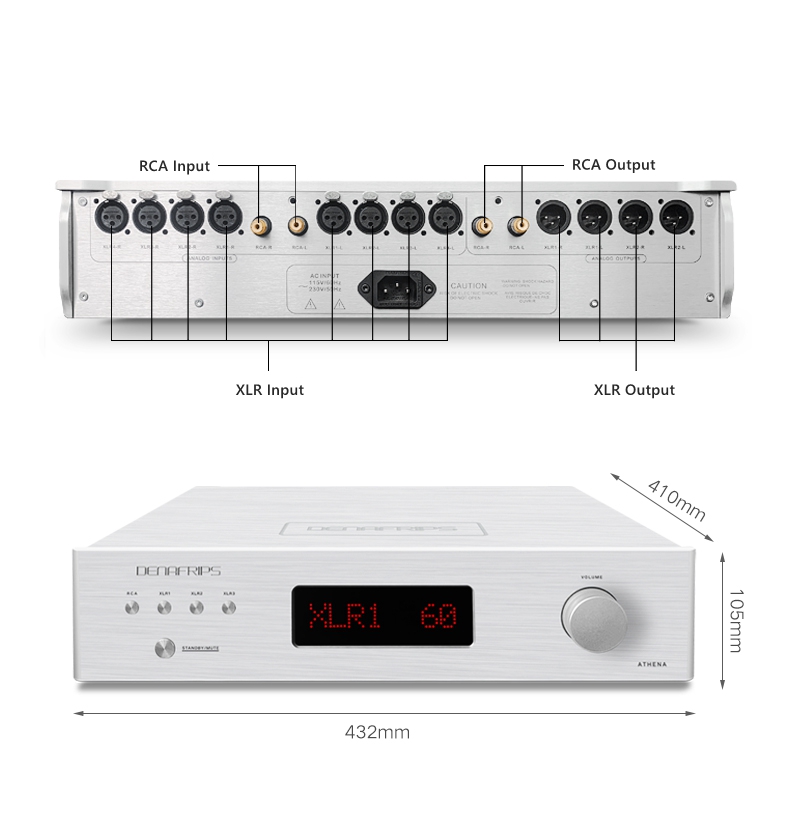

- Output: IN1 - XLR / IN2 - XLR / IN3 - XLR / IN4 - RCA
- Input: RCA 2.0Vrms / XLR 4.0Vrms
- Size: 432 x 410 x 105mm
- Weight: 18kg
Package Included:
- 1 x Host
