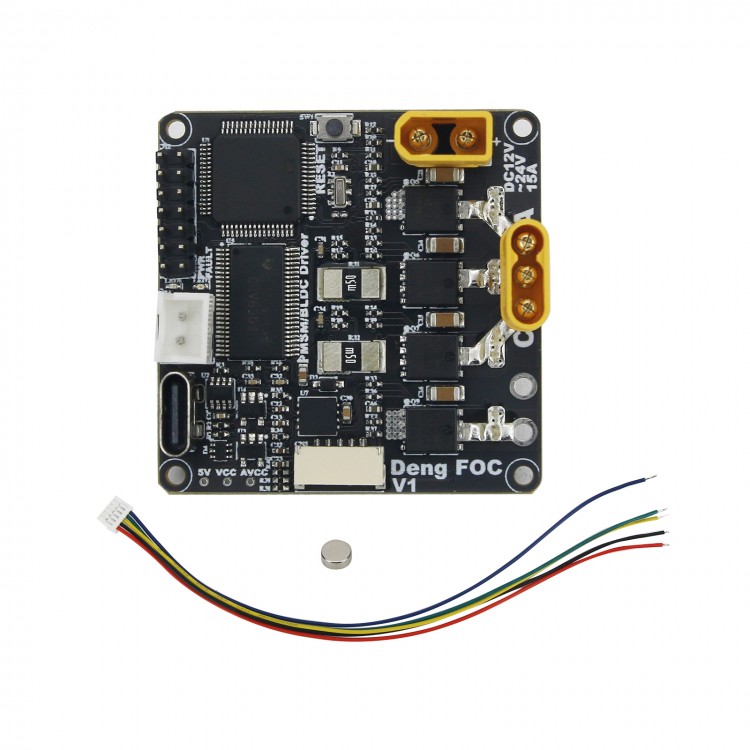

Deng FOC V1 FOC Driver PMSM BLDC Driver Board ODrive High Current Version Single Channel w/ Encoder
Description:
Deng FOC, a highly integrated FOC driver, is suitable for three-phase brushless DC motors and permanent magnet synchronous motors. Based on the powerful and stable open source project O Drive, we optimized the circuit, reduced the size, and optimized the interface to improve the expandability of the driver. Deng FOC driver supports driving high-current motors, and can realize closed-loop control of FOC position, speed, and torque. The encoder supports ABZ mode and SPI mode (onboard), which can detect the temperature of the drive in real time. Further more, Deng FOC reserves a variety of interfaces, including USB, CAN, GPIO expansion, and FPC serial port (which can realize screen display or wireless control), allowing users to develop freely. More importantly, we also further reduce costs and are committed to creating the most cost-effective FOC motor driver.
Characteristics:
- Size: 42 x 42mm/1.7 x 1.7"
- Working voltage: 12V~24V. Support 3S, 4S, 5S, 6S power lithium battery
- Support current: maximum peak current 50A, maximum continuous current 30A
- Encoder: AS5047P onboard (optional) GH1.25 5P incremental encoder interface
- Vertical USB Type-C
- Support SWD program download/debug
- Indicator light: power status indication (VCC), fault status indication (nFAULT)
- Based on ODRIVE development, you can directly use tools such as odrivetool to configure the driver with M0
Interfaces:
- XT30 connector power supply input interface
- MR30 motor output interface
- XT30 connector power resistor interface
- XH2.54 2P CAN interface
- GH1.25 ABZ encoder interface
- FPC 8P screen interface
- 2*7P 2.0mm pin header expansion interface, 8 with analog input
Applications:
- Brushless DC motors and permanent magnet synchronous motors
- Fan and pump
- Electric bicycles and electric skateboards
- Drones and robots
Package Included:
- 1 x Set of FOC Driver Board
Note:
- Batteries are not included.
