Description:
This is an open-source card computer. We provide comprehensive and open software and hardware materials, and are willing to work with like-minded partners to promote the development and innovation of technology. The compact board is equipped with a high-end processor, a wealth of external resources, and a variety of SDKs, giving creativity unlimited possibilities. The combination of software and hardware and project-based learning help solve difficult problems in project implementation, turning every idea into reality.

Hardware Parameters:
RK3566 main control chip:
- CPU: Quad-core Cortex-A55
- GPU: For ARM G52 2EE; Supports for OpenGL ES 1.1/2.0/3.2, OpenCL 2.0 and Vulkan 1.1; embeds high-performance 2D acceleration hardware
- Frequency: Up to 1.8GHz
- Manufacturing process: 22nm
- NPU: up to 1.0TOP computing power
- Video decoding: Support 4K 60fps H.265/H.264/VP9
- Video encoding: support 1080P 60fps H.265/H.264
- ISP: 8M ISP and HDR

Memory chips:
- LPDDR4/4X: 1/2/4/8GB
- EMMC: 8/16/32/64/128GB

Power Supply:
- USB_Type_C socket: 5V 3A input
- GH1.25 power supply socket: 5~18V 2A input

Display Interface:
- MICRO HDMI-compatible screen interface: 1080P at 120Hz and 4K at 60Hz
- EDP screen interface: 2560X1600 at 60Hz
- MIPI DSI screen interface: 1080P at 60Hz

Camera:
- MIPI CSI camera interface: 30PIN 4Lane camera

Communication Network Interfaces:
- USB2.0 socket: Type-A socket
- WIFI & Bluetooth module: Frequency: 2.4GHz; Transmit power: 16dBm; Receiver sensitivity: 90dBm

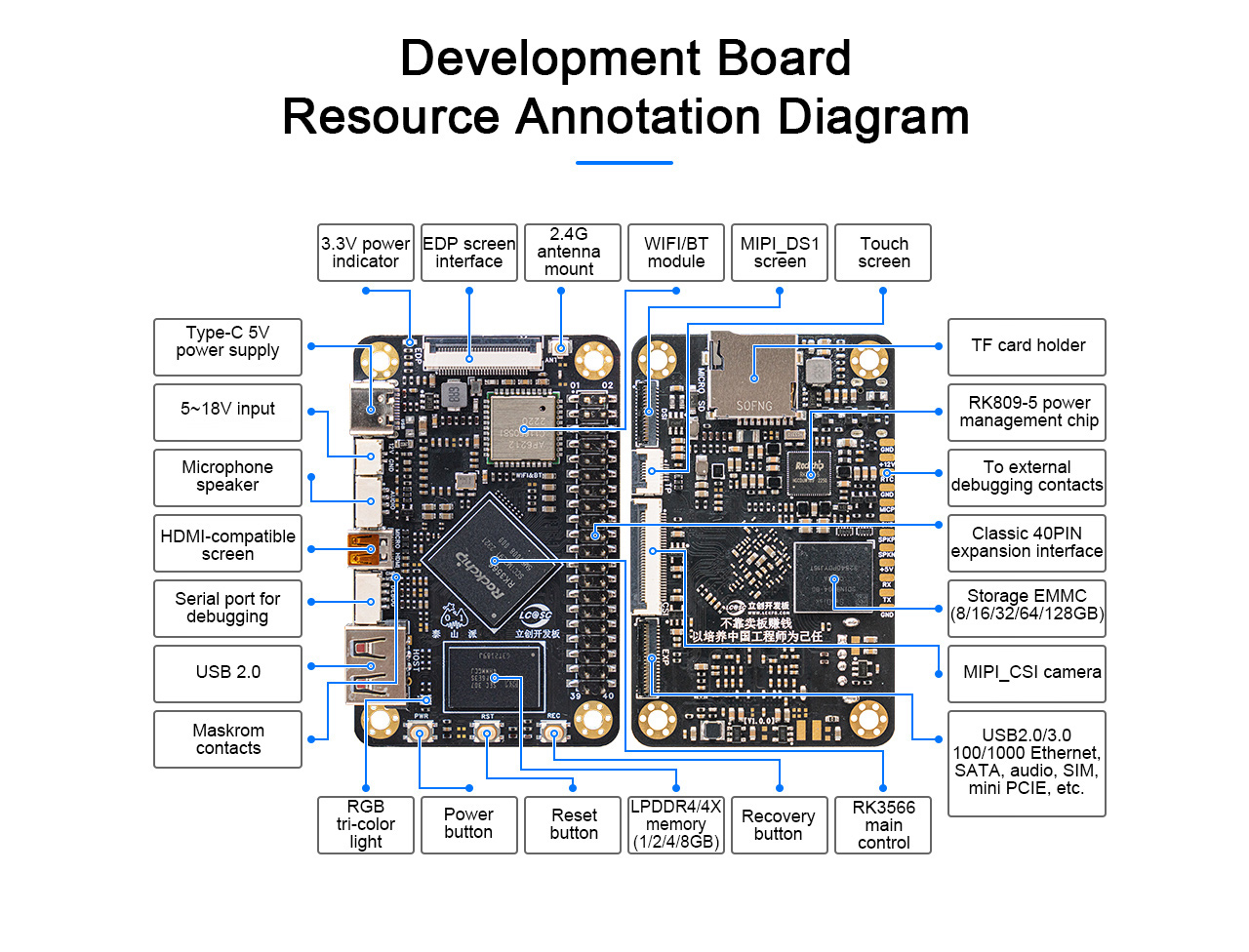

Other Interfaces or Modules:
- Serial port for debugging: Debugging serial port
- TF card holder: Supports TF card (up to 512GB) to boot the system

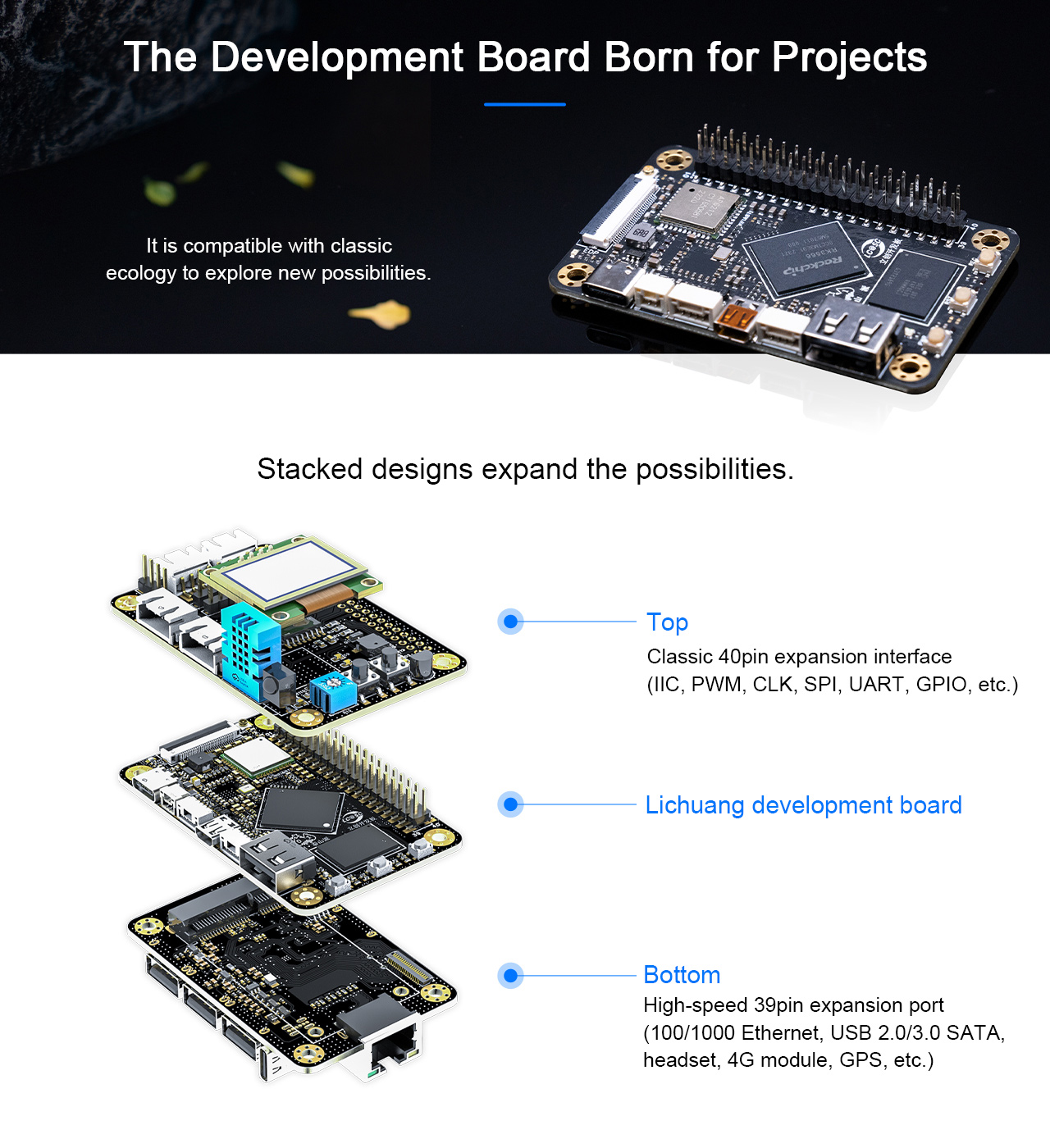

- 40Pin GPIO: Compatible with classic 40pin interface and supports PWM, I2C, SPI, UART, GPIO functions
- 39Pin high-speed signal expansion interface: USB2.0/3.0, 100/1000 Ethernet, SATA, audio, SIM, mini PCIE, etc.
- Speaker and microphone interface: RK809-5 built-in 1.3W speaker; RK809-5 built-in microphone
- Button: RK809 reset button, system reset button and recovery button
- Light: RGB tri-color LED light

Package Included:
- 1 x Development Board

Packaging Details:
- G.W.: 0.45kg

Note:
- Type-C power supply and TF card are not included.
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
