DFB-B-DB9 Adapter Board Distributed Feedback Laser Fixture Pommeled Horse Socket 14Pin Mounting for DFB Driver
Description:

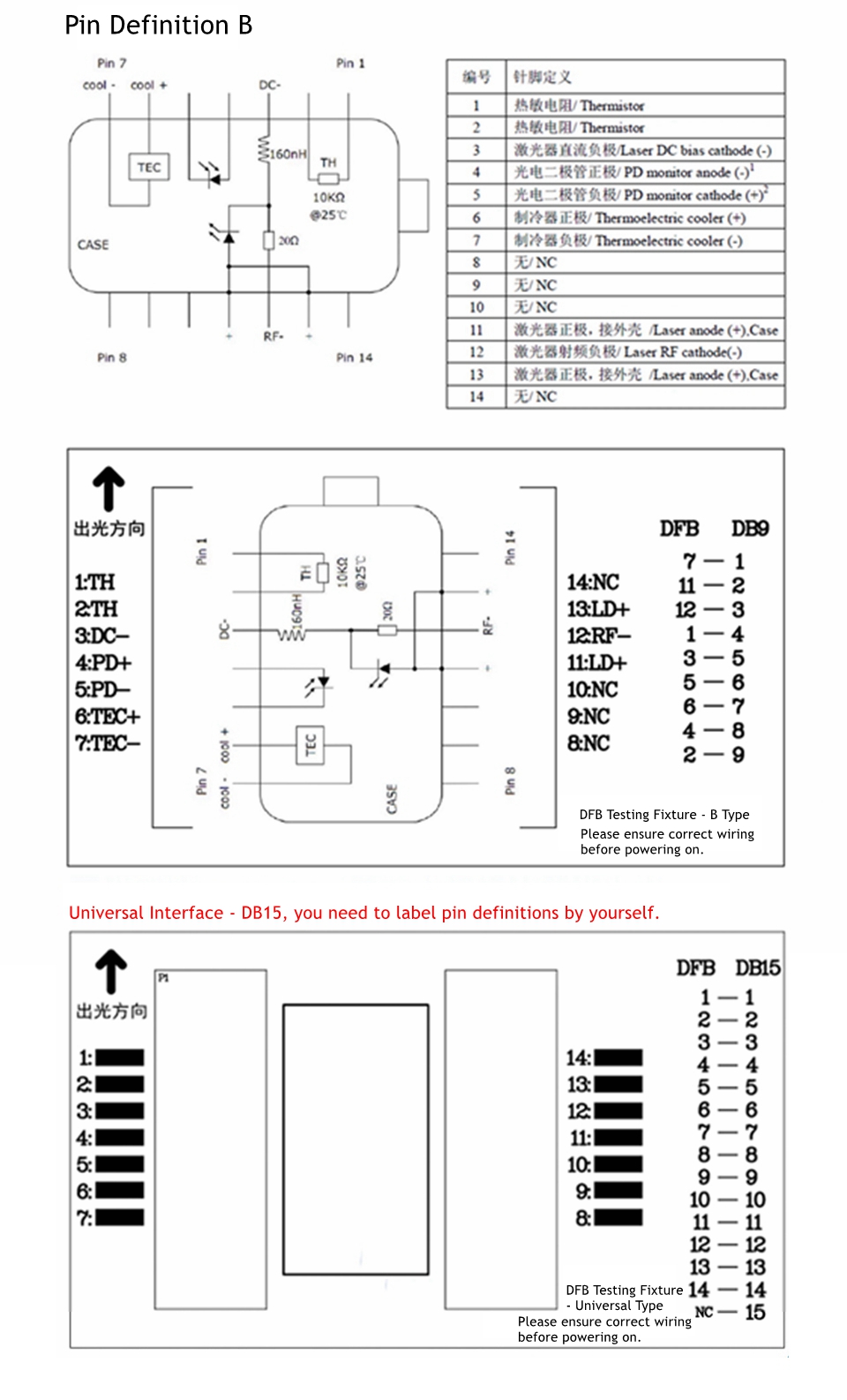

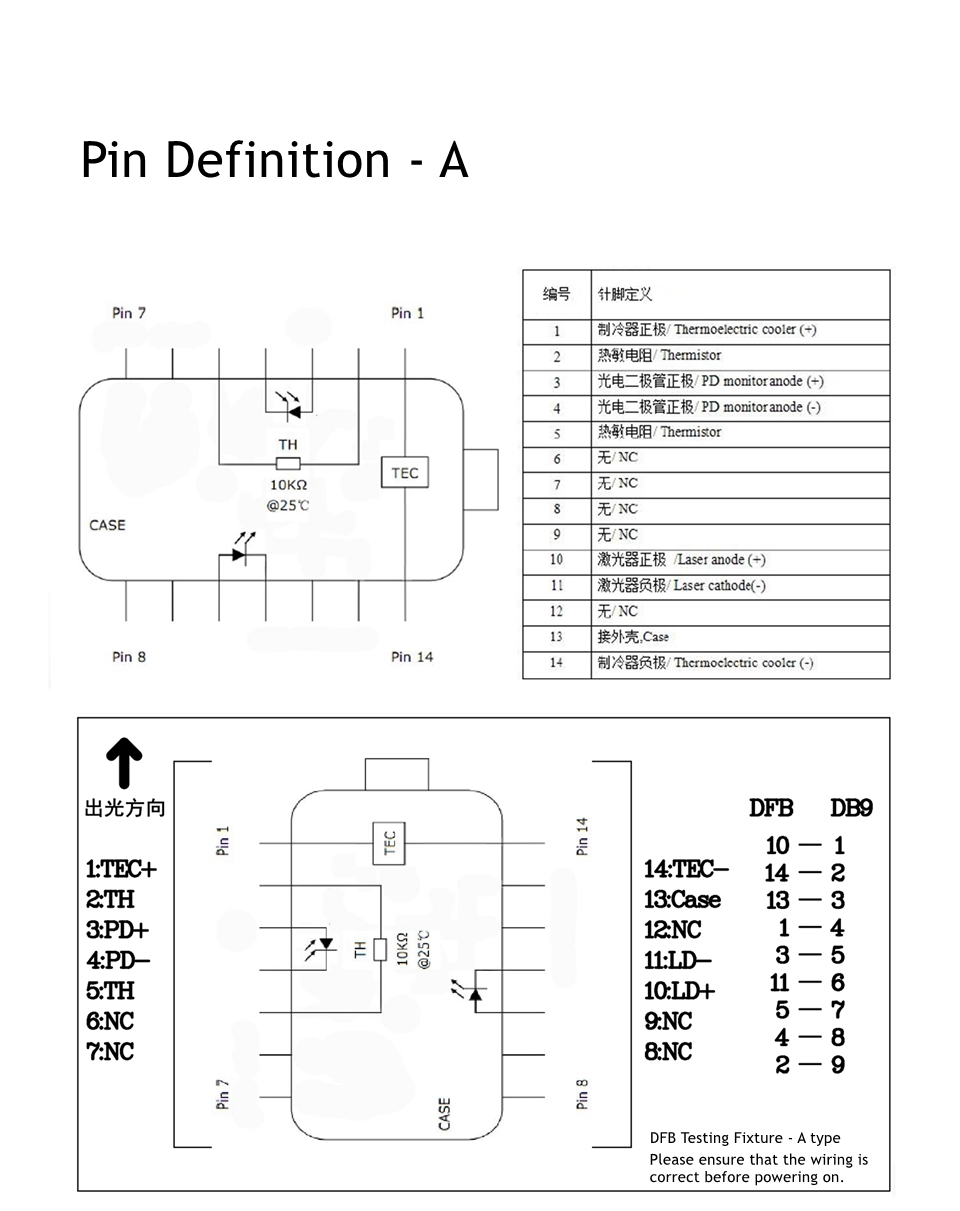

- The fixture is developed and designed for the standard distributed feedback laser DFB, suitable for commonly used 14PIN small butterfly packaged lasers. The fixture provides two commonly packaged pin definitions, and for special pin definitions, a universal adapter (DFB-E-DB15) can be used. The use of DFB fixtures allows for testing, debugging, and experimentation of the laser without the need for welding, avoiding damage and failure of the laser caused by pin misconnection. Suitable for use by a wide range of research institutes, universities, and related production enterprises.
- The fixture pins are plated with gold on the surface of spring steel to reduce contact impedance. The DB9 interface is convenient for connecting with testing instruments. The fixture is in contact with the aluminum block of the laser base for effective heat dissipation. The housing positioning design is easy to fix with the optical platform. The main application of DFB related test benches is to build fixtures for laser detection during mass production.
Specification:
- Model: DFB-B-DB9
- Module type: testing fixture
- Application: quick connection and lossless testing
- Fixture slot width: 0.5mm
- Laser type: DFB
- Laser pin space: 2.54mm
- Output interface: DB9 female
- Heat dissipation interface: heat dissipation aluminum block
- Module net weight: 96g
- Module protection: there is no current limit protection, please pay attention to the wiring

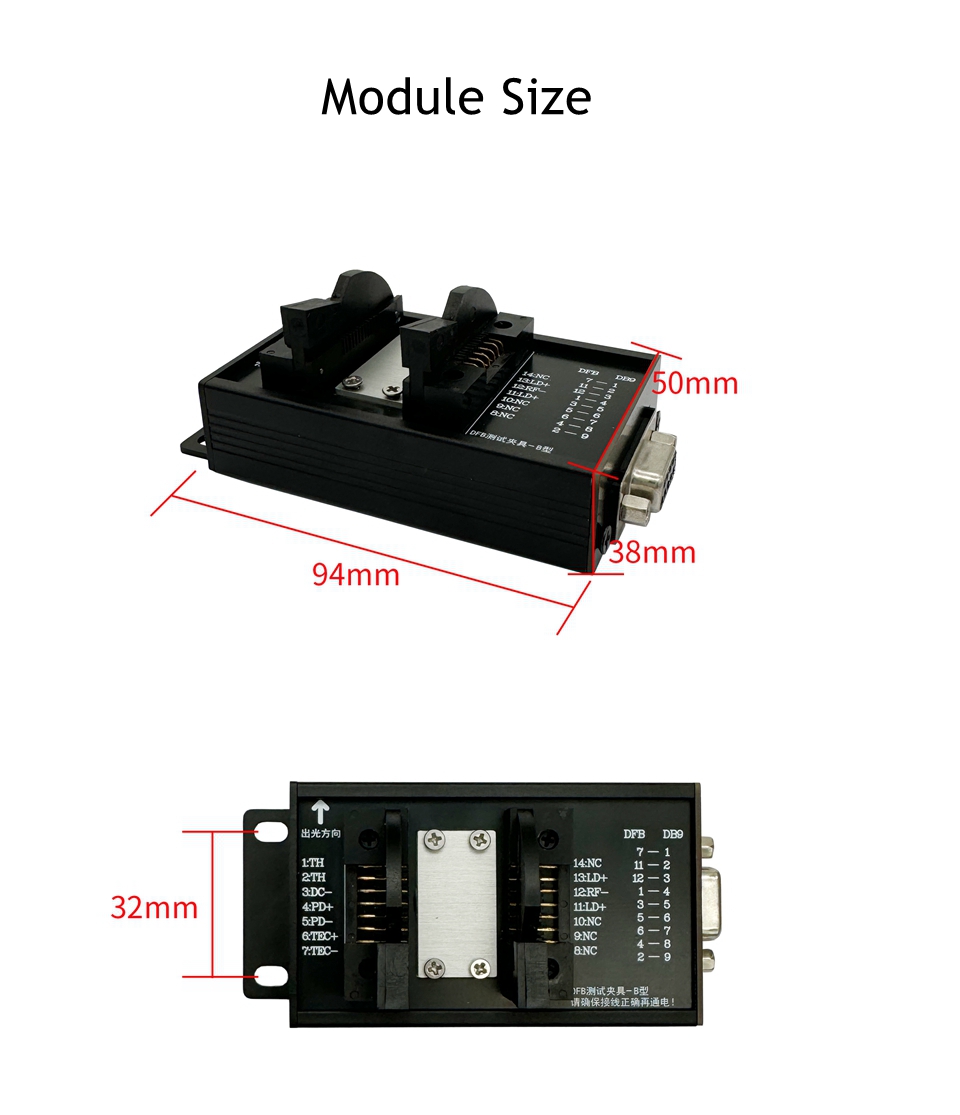

- Module size: 94 x 50 x 38mm
- Module positioning: 2 x 4mm screw hole
- Module features: No welding is required to protect the original state of the laser pins, and the fixture is in contact with the laser base, and the aluminum block effectively dissipates heat.
- Application: construction of DFB related test bench, laser detection.
Package Included:

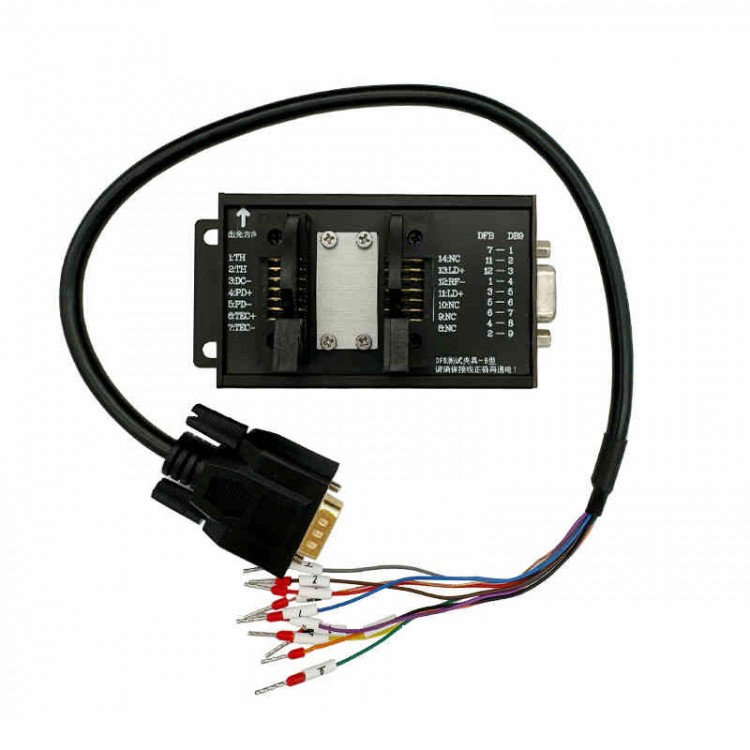

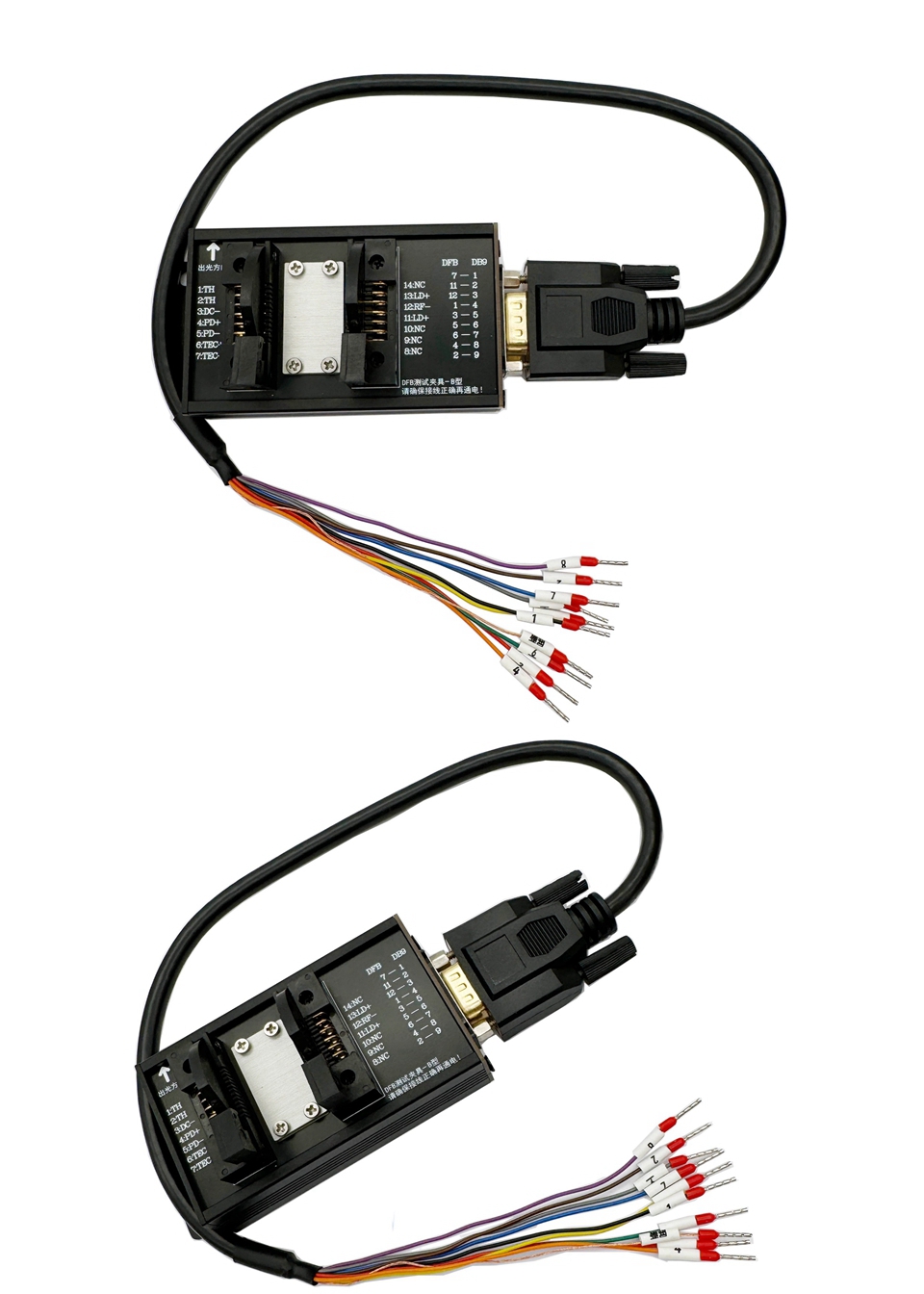

- 1 x DFB-B-DB9 Adapter Board
- 1 x 50cm Cable
