DFRobot Breadboard Plugin Components Resistor Capacitor for Arduino Learning Testing
Product instructions: Click here
Description:
- Breadboard-Plugin Components Pack is a new kit designed for breadboard experiments. It provides all kinds of components, such as resistors, capacitors, diodes, transistors .etc in just one pack. The module pins are made with gold-plating technology, so solid and durable that can be plugged onto the breadboard directly. Easy, reliable and reusable, this is the Breadboard-Plugin Components Pack.
- This innovative approach will solve the following issues caused by using DIP type of components:
- Hard to read the value (Resistor color codes)
- Severe deformations of the pin after used, non-reusable, not environment-friendly
- The pin diameter is too thin or too thick, poor match with the breadboard hole
- Confused the order of transistor “e”, “b”, “c” pins
- Usage problem: Most of sensors and actuators require 3 interfaces: Signal/VCC/GND, you have to use the jumper wire for the connection, messy and unreliable.
- Designed by Maker LeoYan, manufactured and sold by DFRobot.
- Note: Breadboard is not included in the pack.
Features
- Easy to Recognize : Resistance value, capacitance values, positive/negative polaron and pin functions are marked clearly.
- Easy to Learn : The circuit symbol is clearly visible, directly match the circuit diagram
- Easy to Use : Direct-plug pin
- Easy to Plug/unplug : The 0.64mm diametral pin matches the breadboard hole perfectly
- High-Reliability : ENIG technology, the circuit connection is reliable and durable
- Environment-Friendly : Reusable and Environment-friendly
Application: For arduino Learning and Testing
Specification
- Operating Voltage: 3.3 ~ 5.5 VDC
- Output Voltage: 0 ~ 3.0VDC
- Interface: PH2.0-3P
- Dimension: 98mm * 23mm (3.86in x 0.905in)
Shipping List
- Resistor 220R x4
- Resistor 1K x4
- Resistor 4.7K x4
- Resistor 10K x4
- Capacitor 22pF x2
- Capacitor 100nF x2
- Capacitor 47uF x2

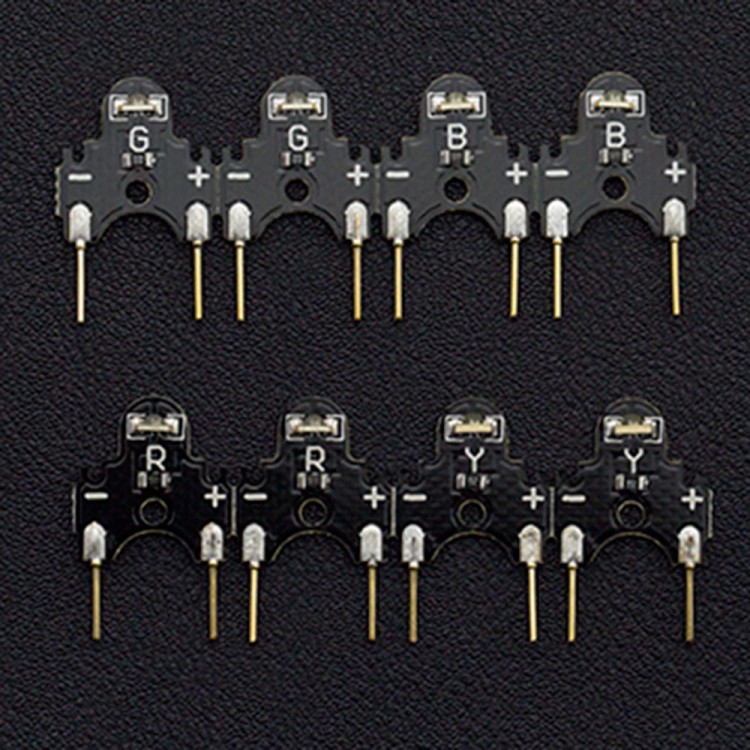

- LED--R x2
- LED--Y x2
- LED--B x2
- LED--G x2
- Diode x4
- NPN transistor x2
- PNP transistor x2
- Breadboard PluginConnector x2
