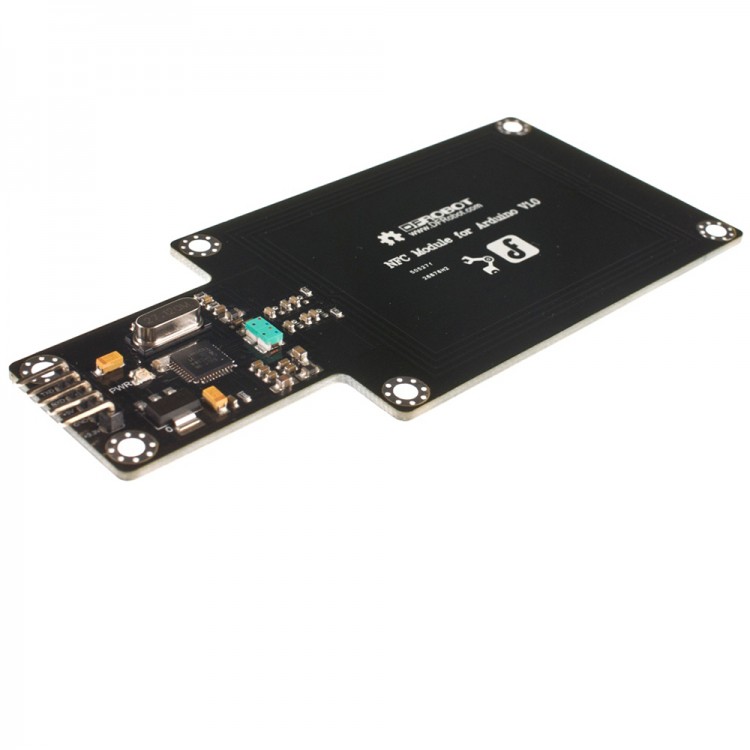

DFrobot RFID Deelopment Board PN532 NFC Communication Module for Arduino DIY
Introduction:
Near Field Communications (NFC), a contactless, Wi-Fi-lite style tech that could already be in your smartphone, and could soon be a regular feature of your commute.
Near Field Communications(NFC) is a set of short-range wireless technologies, typically requiring a distance of 10cm or less, for two devices such as smartphones or the similar things very close to each other to establish communication. Communication is also possible between a NFC device and unpowered NFC chips such as tags, stickers, key fobs and cards which do not require batteries.
The NFC Module for Arduino is designed to extend this powerful feature for your project or application based on Arduino.It integrates a PN532 NFC controller from Philips.The driver interface for this product is UART interface of the microcontroller. So it's possible for you to test it via a USB to UART converter directly. On the other hand, for the applications with microcontroller, the module provides an event for your processor when detects the NFC tags, stickers, key fobs, or cards via high speed serial uart.
Applications
- Contactless payment systems
- Bluetooth and Wi-Fi connections
- Social networking situations, such as sharing contacts, photos, videos or files
- Electronic identity documents and keycards
- Smartphone automation and NFC tags
Specification
- Working Voltage: 3.3v or 5v
- Host interface: UART
- Default Band rate: 115200 bps
- Integrate PN532 NFC controller
- Supports ISO 14443A/MIFARE
- Supports ISO 14443B in reader/writer mode only
- Typical max operating distance for detecting NFC tags from 20 to 50mm depending on the antenna size of the tag
- Serve for contactless communication at 13.56MHz
- Size: 11*5cm
Note:
UNO R3 cannot be with this NFC module.
It is better with mega2560 or Leonardo and the other two or more devices
Module and Leonardo connection detailed tutorial: Click here
Product database (with test code): Click here
Schematic diagram: Click here
Component location diagram: Click here
PN532 parameters: Click here
PN532 instructions: Click here
Arduino connection diagram: Click here
Package included:
- 1 x Module
- 1 x Smart identification card
