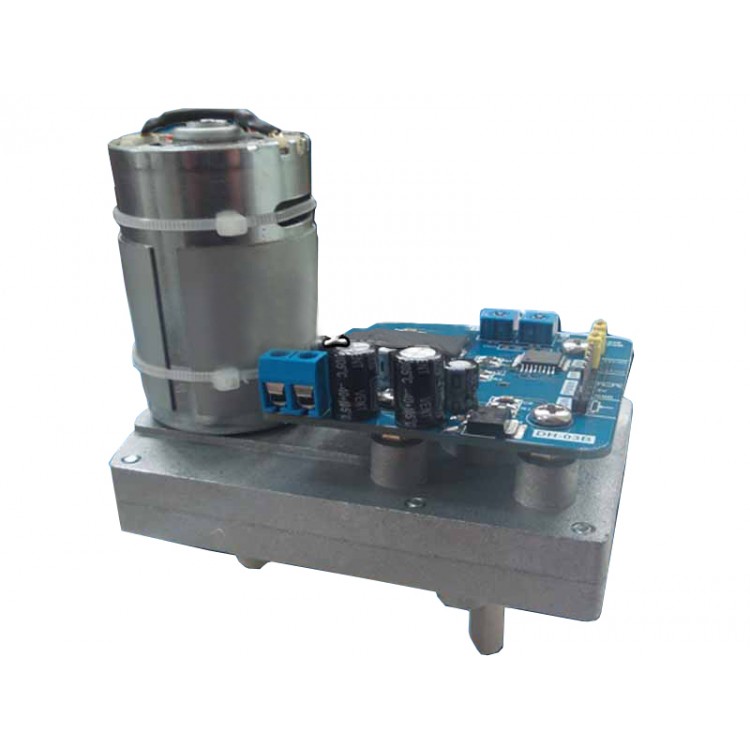

DH-03B 110KG/CM Large 360 Degree Servo Rotary Servo 12V-24V Large Torque
Description:
- 43A large current driving chip
- 12V-24V wide voltage power supply
- Servo model: DH-03B
- Unload current: <500mA
- Large torque: 110kg.cm(24V), 1078N.cm(24V), 55kg.cm(12V), 539N.cm(12V)
- Max speed: 24V 60RPM
Note:
- 360 degree continuous rotary servo, it can CW CCW continous roatate, speed is adjustable. But the angle can not be controlled. It's different from 180 / 270/ 330 degree servo
Input mode:
- PWMIN is PWM pulsing signal (remote controller, multi channel servo controller, single chip machine)
- ADIN is analog voltage signal (potentiometer)
Pulsing signal input range:
- 0.5ms-2.5ms is suitable for all multi channel servo controller, 1ms-2ms multicopter remote controller, single chip programme, Arduino
Specs:
- Voltage signal input range: 0-5V
- Weight: 530g
- Gear material: steel
- Size: 95.5mm X 60.5mm X 102.6mm
- Suitable for medium large size robot, mechanical arm, or large power large torque controlling aera
