  • DH-03S Super Large Torque Alloy Servo 12V/ 24V/ 110KG.CM for Large Robot Mechanical Arm

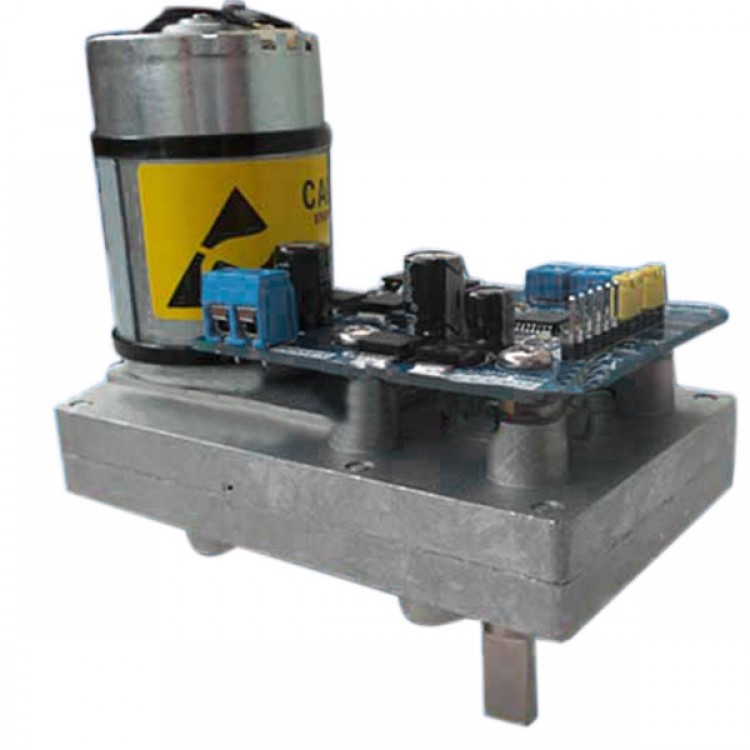

DH-03S Super Large Torque Alloy Servo 12V/ 24V/ 110KG.CM for Large Robot Mechanical Arm

Availability: In stock, usually dispatched in 1 business day

  • Price:$75.93
  • Price in reward points: 759 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $74.41 $72.89 $70.61 $67.58 Contact US
Quantity:
Buy it now Add cart

You might like

WINGXINE 400Kg.cm Bus Servo High Torque Servo ASMG-MDB with RS485 CAN Communication Control Ports

WINGXINE 400Kg.cm Bus Servo High Torque Servo ASMG-MDB with RS485 CAN Communication Control Ports

$89.31

(0)
DHEA-CB Large Servo High Torque Digital Servo Alloy Gears Magnetic Encoding 360° 12-24V 260KG/CM

DHEA-CB Large Servo High Torque Digital Servo Alloy Gears Magnetic Encoding 360° 12-24V 260KG/CM

$52.24

(0)
ASME-05A 260Kg.cm Digital Servo High Torque Servo Robot Servo for Large Robot Robotic Arm Gimbal

ASME-05A 260Kg.cm Digital Servo High Torque Servo Robot Servo for Large Robot Robotic Arm Gimbal

$54.66

(0)
ASME-01A Super Large Torque Alloy Servo High-power Servos 260KG.cm Robot Mechanical Arm

ASME-01A Super Large Torque Alloy Servo High-power Servos 260KG.cm Robot Mechanical Arm

$129.54

(0)
Unassembled 6 DOF Full Set Mechanical Arm with Clamp Claw Rotating Mechanical Robot with Servos & Controller

Unassembled 6 DOF Full Set Mechanical Arm with Clamp Claw Rotating Mechanical Robot with Servos & Controller

$185.80

(0)
DHEA-CB Large Servo High Torque Digital Servo Alloy Gears Magnetic Encoding 360° 12-24V 380KG/CM

DHEA-CB Large Servo High Torque Digital Servo Alloy Gears Magnetic Encoding 360° 12-24V 380KG/CM

$49.15

(0)
WINGXINE ASME-SDA 70Kg.cm Self-locking Worm Servo RS485 Bus Servo Supports PWM and Voltage Control

WINGXINE ASME-SDA 70Kg.cm Self-locking Worm Servo RS485 Bus Servo Supports PWM and Voltage Control

$47.87

(0)
DHLG-03X 1000KG/CM High Torque Servo for Unmanned Vehicle Intelligent Steering and RC Model Robot

DHLG-03X 1000KG/CM High Torque Servo for Unmanned Vehicle Intelligent Steering and RC Model Robot

$407.13

(0)

DH-03S Super Large Torque Alloy Servo 12V/ 24V/ 110KG.CM for Large Robot Mechanical Arm

Parameters:
- Working voltage: 12V-24V DC
- Unload current: <500mA
- Max torque:
110kg.cm(24V)
1078N.cm(24V)
5kg.cm(12V)
539N.cm(12V)
- Angular speed:
0.12/60°(0.12s for turning 60 degree), 24V
0.24s/60°(0.24s for turning 60 degree), 24V
- Rotary angle: 300 degree MAX
- Input mode: PWMIN is PWM impulse signal, ADIN is analog voltage signal
- Impulse signal input range: 0.5ms---2.5ms suitable for all multiple channel servo controller, 1ms-2ms remote controller, single chip machine, Arduino

Voltage signal input range: 0---5V
- Controlling precision: 0.5 degree
- Weight: 530g
- Material: steel
- Size: 95.5*60.5*102.6mm
