DH-03X 180KG/CM Steering Gear with D Shaft Potentiometer Feedback DC12-24V For RC Robot Arm

DH-03X 180KG/CM Steering Gear with D Shaft Potentiometer Feedback DC12-24V For RC Robot Arm

Features:
- Adjustable current limit protection and 12V-24V wide voltage power supply. The lower the voltage, the slower the speed and the smaller the torque.
- Unique power stability technology to ensure that the steering gear continue to work, which is different from fuse protection on other products. Our steering gear is operating within safe torque.
- Improvements makes it work stably and smoothly, featuring super anti-interference ability
- Suitable for steering gear controller, RC remote control & analog voltage control
- High torque motor with alloy gear
- Aluminum alloy gearbox ultra light weight
- Easy to install, sturdy and durable, reliable and stable performance

Applications:
- For large robots, robotic arm joints
- For industrial robotic automation
- For precise control of valve angle
- For large camera PTZ
- For large remote control car model, remote control ship model
- For a variety of occasions requiring high torque angle control

Technical Parameters:
- Model No.: 180KG/CM
- Starting Torque: 180KG/CM
- Holding Torque: 160KG/CM
- Rated Speed @24V: 0.5S/60°
- Rated Voltage: DC 12-24V (12V/MIN-30V/MAX)
- No-load Current: <500MA (Current limit 5A. It is recommended to use a switching power supply greater than 5A)
- Angle Limit:
  1.0-2MS Control Mode: 260° (electronic limit adjustable)
  0.5-2.5MS Control Mode: 300° (electronic limit adjustable)
  0-5V Analog Voltage Control: 330° (electronic limit adjustable)
- Control Methods:
  1.0-2.0MS Pulse Mode: Suitable for RC remote control receiver control
  0.5-2.5MS Pulse Mode: suitable for multi-way steering gear controller
  Analog Voltage Mode: 0-5V analog voltage input control
  (Pulse Frequency: 50-333Hz)
- Material: Gear and Shaft: Alloy steel; Gearbox: cast aluminum
- Mechanical Life Span: >1000000 times / conventional torque
- Dimensions: 95*60*110mm
- Weight: 510-560g

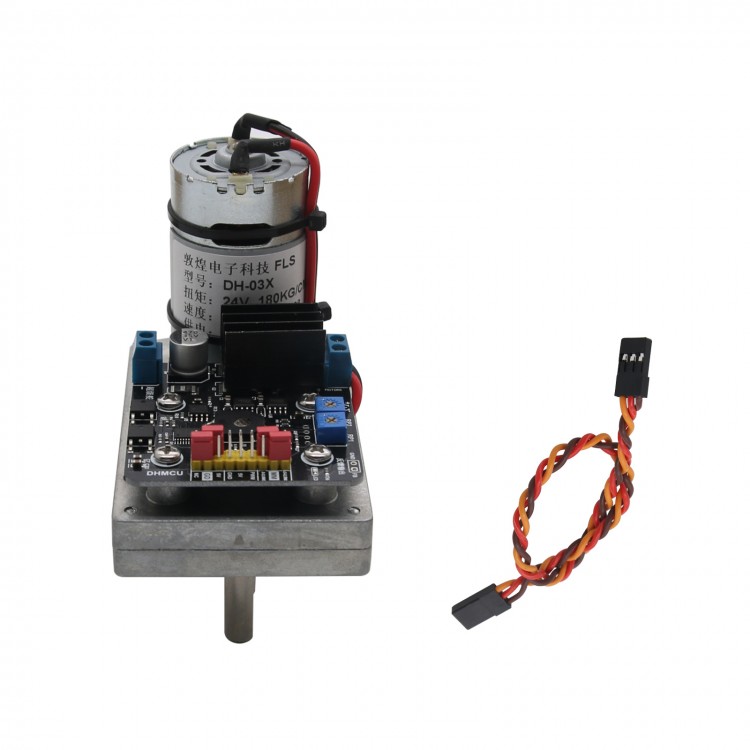

Package Included:
- 1 x Steering Gear
- 1 x Signal Cable

Note:
- Bracket and steering gear plate are not included.
- When the over-current protection is triggered, it will stop runing for 3-4s. Before the steering gear resumes operating, please turn it off in time to avoid damage. Please stay out of the operating range of steering gear swing arm to avoid being hit.
