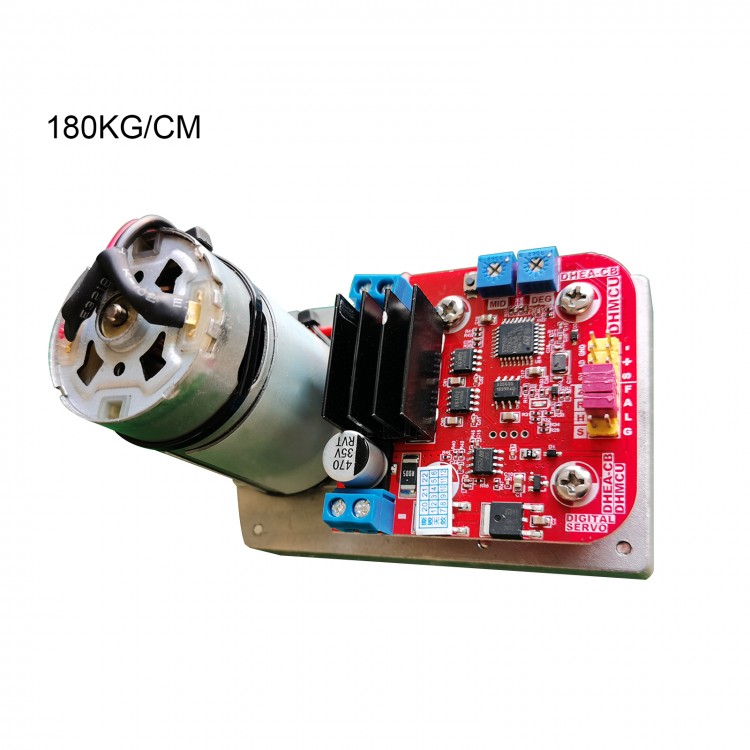

DHEA-CB Large Servo High Torque Digital Servo Alloy Gears Magnetic Encoding 360° 12-24V 180KG/CM
Download Product Information:
http://pan.baidu.com/s/1kUZusM7 Password: apdt
Video Instruction:
1. PWM control mode and angle adjustment, neutral adjustment
https://v.youku.com/v_show/id_XNDg1NzA2MTg1Ng==.html
2. AD control mode and jumper cap explanation
https://v.youku.com/v_show/id_XNDg1NzA2MTg1Ng==.html
Features:
* For robots, manipulators, pan-tilts, valves, production line manipulators, car models, etc.
* Suitable for steering servo controller, model airplane remote control, analog voltage control
* Alloy gear high torque motor
* Aluminum alloy gearbox is ultra-lightweight
* Easy to install, durable, reliable, stable and practical
Applications:
* Large robots, mechanical arm power joints
* Industrial robot automation
* Precise control of valve angle
* Large camera PTZ
* Large remote-control car model, remote control ship model
Attention:
Please
test various application scenarios by yourself and use them after
passing the tests. For various application scenarios, please test them
on a large scale before using them. We are not responsible for the
consequences of this! Thank you for your understanding!
Technical Parameters:
- Rated voltage: DC 12-24V (12V MIN.-30V MAX.)
- No-load current: <500MA (current limit 5A, recommended to use 10A switching power supply or battery)
- Limit angle:
* L: 1.0-2MS control mode: 360 degrees (electronic limit adjustable)
*
H: 0.5-2.5MS control mode: 360 degrees (electronic limit adjustable);
0-5V analog voltage control: 360 degrees (adjustable electronic limit)
- Ways to control:
* 1.0-2.0MS pulse mode: suitable for model airplane remote control receiver control
* 0.5-2.5MS pulse mode: suitable for multi-channel steering gear controller control
* Analog voltage mode: 0-5V analog voltage input control (pulse frequency: 50-333HZ)
- Materials: Gear and shaft: alloy steel; gear box body: cast aluminum
- Product weight: 0.595KG
- Dimensions: 95 x 60 x 110mm/3.7 x 2.4 x 4.3"
- Mechanical life: >6,000,000 cycles/normal torque
- Maximum torque: Optional 110KG/CM, 180KG/CM, 260KG/CM, 380KG/CM
- Speed:
* 110KG/CM: 24V, 0.12S/60°
* 180KG/CM, 260KG/CM, 380KG/CM: 24V, 0.5S/60°
Package Included:
- 1 x Set of Steering Servo
Note:
- Battery is not included in the package.
