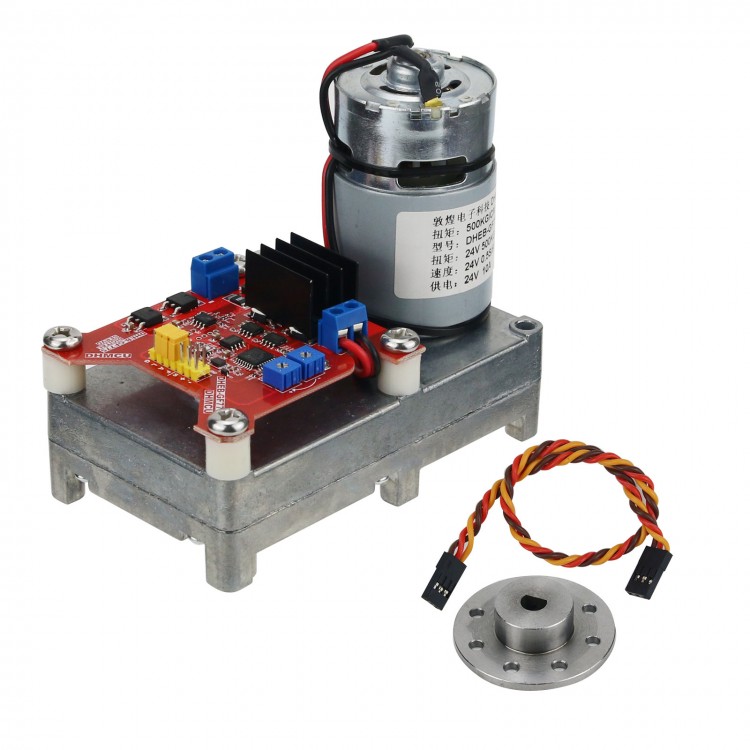

DHEB-GF775 500KG/CM Large Servo Metal High Torque Digital Servo Precise Large Angle With Servo Horn

DHEB-GF775 500KG/CM Large Servo Metal High Torque Digital Servo Precise Large Angle With Servo Horn

Video Instruction:

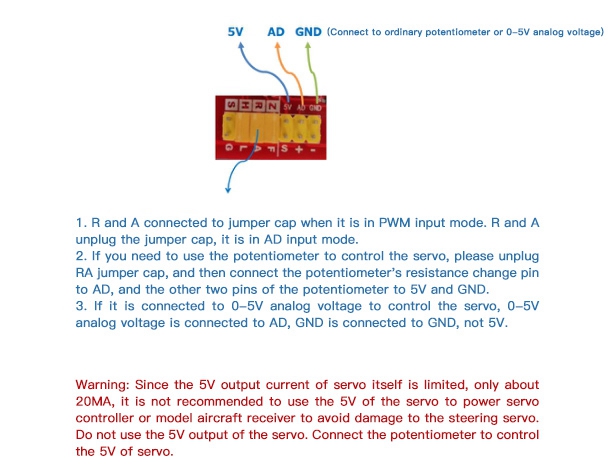

1. Potentiometer Wiring: https://v.youku.com/v_show/id_XNDg2MjA2NTkwMA==.html
2. Steering Servo Controller Wiring: https://v.youku.com/v_show/id_XNDg2MjA2MTg0OA==.html

Read Instructions Before Using:
http://pan.baidu.com/s/1kUZusM7  Password: apdt

Features:
* For robots, manipulators, pan-tilts, valves, production line manipulators, car models, etc.
* Suitable for steering servo controller, model airplane remote control, analog voltage control
* Alloy gear high torque motor
* Aluminum alloy gearbox is ultra-lightweight
* Easy to install, durable, reliable, stable and practical

Applications:
* Large robots, mechanical arm power joints
* Industrial robot automation
* Precise control of valve angle
* Large camera PTZ
* Large remote-control car model, remote control ship model

Attention:
Please test various application scenarios by yourself and use them after passing the tests. For various application scenarios, please test them on a large scale before using them. We are not responsible for the consequences of this! Thank you for your understanding!

Technical Parameters:

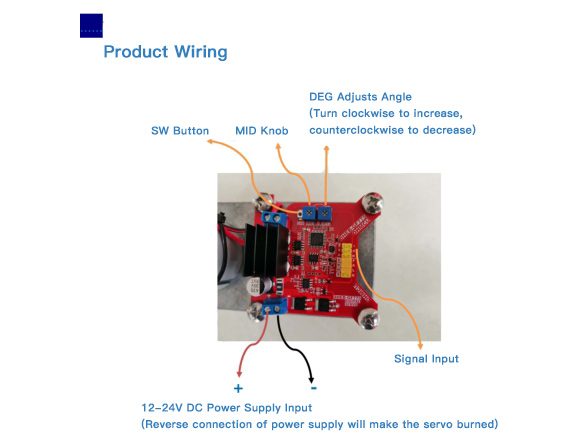

- Rated voltage: DC 12-24V (12V MIN-30V MAX)
- No-load current: <500MA (current limit 5A, recommended to use 10A switching power supply or battery)
- Limit angle:

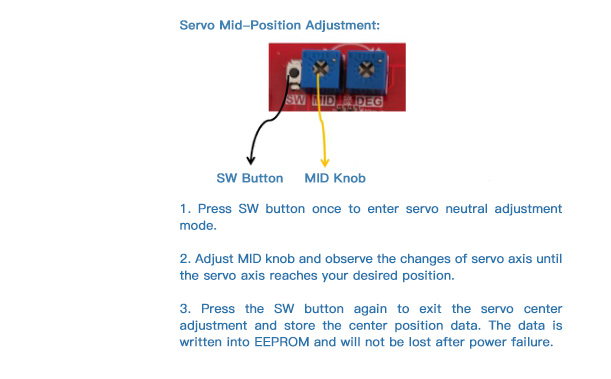

* L: 1.0-2MS control mode: 360 degrees (electronic limit adjustable)
* H: 0.5-2.5MS control mode: 360 degrees (adjustable electronic limit); 0-5V analog voltage control: 360 degrees (adjustable electronic limit)

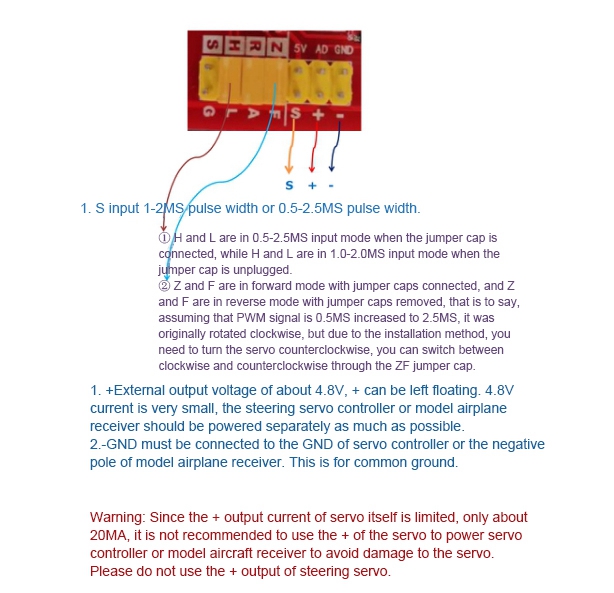

- Ways to control:
* 1.0-2.0MS pulse mode: suitable for model airplane remote control receiver
* 0.5-2.5MS pulse mode: suitable for multi-channel steering gear controller
* Analog voltage mode: 0-5V analog voltage input control (pulse frequency: 50-333HZ)

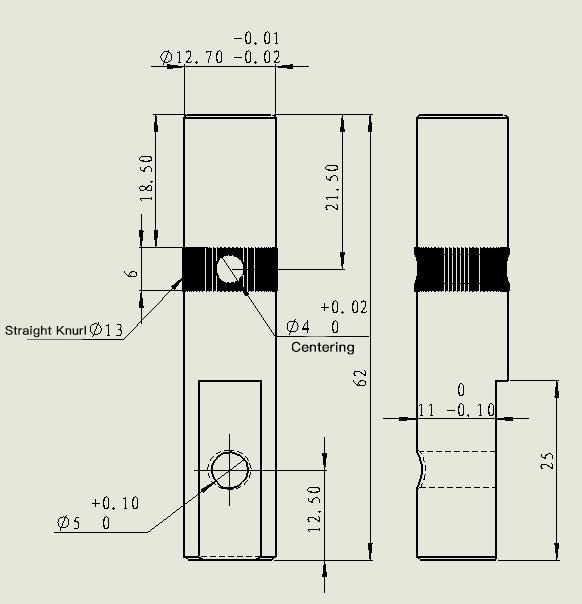

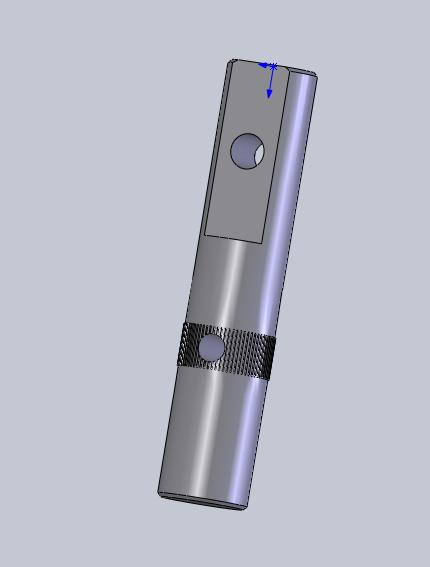

- Material: gear and shaft: alloy steel; gear box body: cast aluminum
- Product weight: 1.065KG

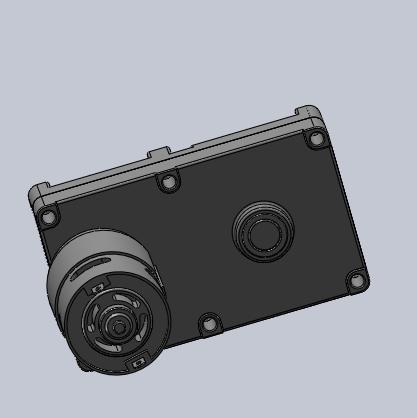

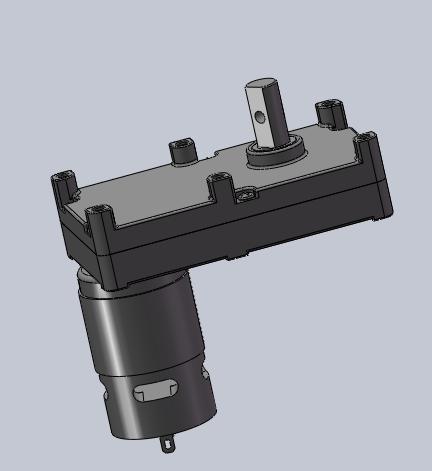

- Dimensions: 123 x 70 x 124mm/4.8 x 2.8 x 4.9"
- Mechanical life: >6,000,000 cycles/normal torque
- Maximum torque: 500KG/CM
- Starting torque: 500KG/CM
- Holding torque: 500KG/CM
- Rated speed: 0.5S/60° at 24V

Package Included:
- 1 x Steering Servo with Servo Horn

Note:
- Battery is not included.
- Servo drive board can be customized. Brushed motor and brushless motor drivers can be made for you. If customization service is needed, please contact us to pay extra money.
