Diesel Generator Controller Genset Control Module for Diesel Gasoline Genset SGC501

Diesel Generator Controller Genset Control Module for Diesel Gasoline Genset SGC501

Description:
This series of controllers is designed for start-up, stop, parameter monitoring and fault monitoring of small diesel, gasoline and gas generator sets and has parameter setting functions.

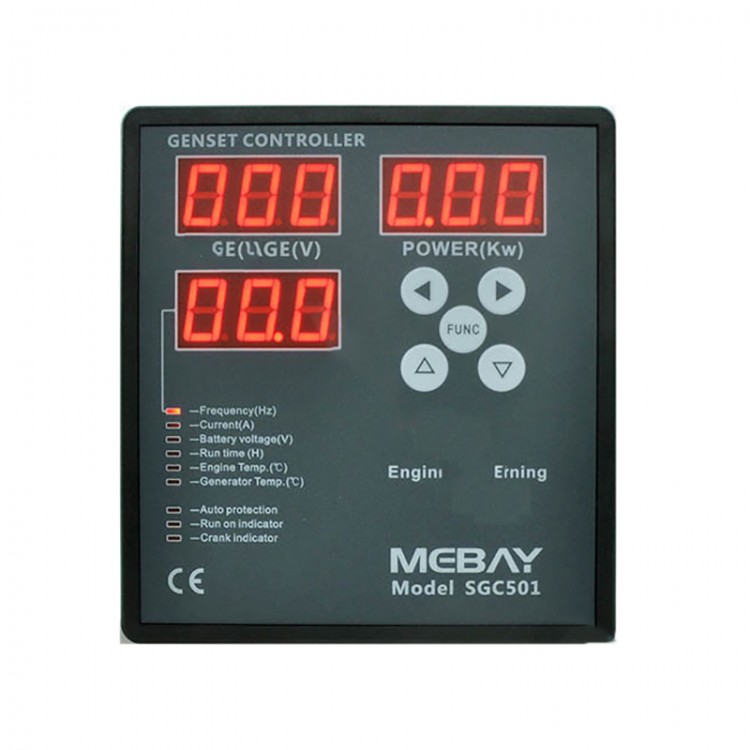

The controller adopts three-screen three-digit large-size LED display, which can simultaneously display various parameters such as generator voltage, power and frequency. All parameters of the controller can be adjusted through the controller panel buttons or through the communication interface using a PC.

Features:
- Controlled by 32-bit imported high-performance single-chip microcomputer;
- Three-screen three-digit 0.56-inch LED display, which can be changed by pressing the button;
- PC material panel, effective waterproof, oil proof, UV protection, long service life;
- With TTL communication interface, PC controller software can be used to set and monitor controller parameters in real time;
- Measure and display genset voltage, power, frequency, current, battery voltage, accumulated running time, engine temperature, generator temperature and other parameters;
- With undervoltage, overvoltage, underfrequency, overfrequency, overload, high temperature protection;
- Temperature sensor analog input can be configured; a variety of temperature sensor curves can be selected;
- All parameters can be set via the panel buttons;
- Modular design: All wiring is completed through European-style terminal blocks. It is very easy and convenient to assemble, connect, repair and replace the equipment.

Parameters Display:
- Generator phase voltage L-N;
- Generator active power KW;
- Generator frequency Hz;
- Generator current A;
- Engine battery voltage;
- Cumulative running time of the unit;
- Engine temperature;
- Generator temperature.

Protections:
- Power generation overvoltage
- Under-voltage
- Under-frequency
- Over frequency
- overload
- High engine temperature
- High generator temperature

Specifications:
- Operating voltage: DC8V to 18V continuous power supply
- Overall power consumption: Standby: MAX 1W; Operation: MAX 2W
- Generator AC voltage input:
  One-phase two-wire (L-N input) 30VAC-360VAC (ph-N);
  Two-phase three-wire (L-N input) 30VAC-360VAC (ph-N);
  Three-phase four-wire (L-N input) 30VAC-360VAC (ph-N).
- Generator AC frequency input: 50/60Hz
- Maximum cumulative running time: 999 hours (minimum storage time 6 minutes)
- Fuel output: 7Amp DC + VE supply voltage output
- Motor output: 7Amp DC + VE supply voltage output
- Current transformer secondary current: Rated: 62.5mA
- Working conditions: -25 to 70°C
- Storage conditions: -30 to 80 ° C
- Protection level: IP42
- Insulation strength: AC1.5kV voltage is applied between the AC high voltage terminal and the low voltage terminal, and the leakage current is not more than 3mA within 1min.
- Dimension: 118mm*128mm*36mm
- Hole Spacing: 112mm*122mm
- Weight: 0.25Kg

Package Included:
- 1 x Genset Controller
