| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $167.62 | $164.20 | $159.07 | $152.23 | Contact US |
550W Intelligent Solar Grid Micro Inverter Ultra-thin Version 22V-48V MPPT Aluminum Alloy Wide Voltage Inverter
$113.77
500W Intelligent Solar Grid Micro Inverter Ultra-thin Version 22V-48V MPPT Aluminum Alloy Wide Voltage Inverter
$111.82
400W Intelligent Solar Grid Micro Inverter Ultra-thin Version 22V-48V MPPT Aluminum Alloy Wide Voltage Inverter
$104.05

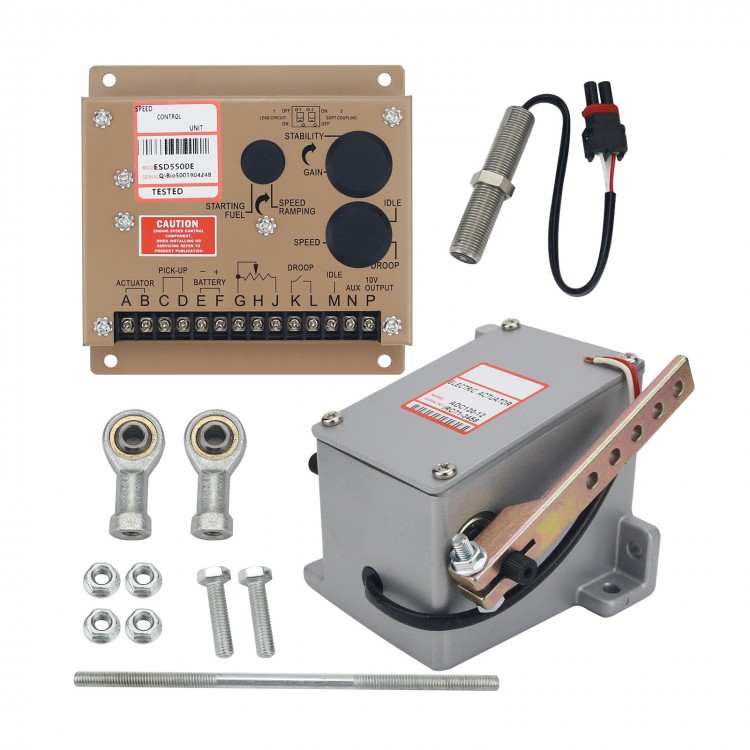

Diesel Generator Governor ADC120 Electric Actuator 24V+ ESD5500E Speed Controller + 3034572 Sensor
Advantages:
* Actuator ADC120 12v/24v optional
* 1set= 1PCS Electric Actuator 12V or 24V + 1PCS ESD5500E Speed Control Unit + 1PCS 3034572 Sensor
* Good universal performance, longevity, stability
PERFORMANCE:
* Available Torque Max1.0Lb-ft (1.4Nm)
* Maximum Operating Shaft Angular Travel 25±1degree CW/CCW
POWER INPUT:
* Operating voltage 12VDC
* Normal Operating Current 2A at 12VDC, 1A at 24VDC
* Maximum Current Continuously Rated 6A at 12VDC, 3A at 24VDC
ENVIROMENTAL:
* Temperature Range -54℃ to 95℃
* Relative Humidity up to 100%
* All Surface finishes Fungus proof and corrosion resistant
PHISICAL:
* Weight2.3 kg
* Mounting Any position, electrical connector at the top preferred
RELIABILITY:
* Vibration up to 20G at 50-500 Hz
* Testing 100% Tested
MATING HARDWARE:
* Connector Supplied With Actuator
* Lever LE1500-2
* Rod End Bearings (to attach a 12#20 HD linkage rod to lever), BR100 (Right Hand), BR101 (Left Hand)
* Wiring Harness ADC120 4ft. Harness supplied with actuator, other length available from Actuator
Package Included:
* 1 x Electric Actuator
* 1 x Speed Control Unit
* 1 x Sensor
Note:
* Battery is not included.
