Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $76.54 | $74.98 | $72.63 | $69.51 | Contact US |

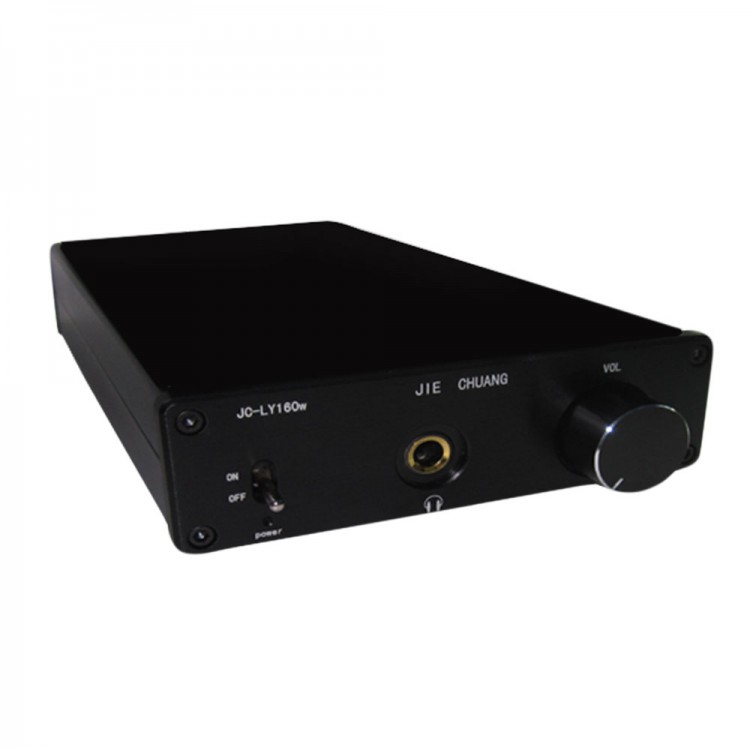

Digital Audio Amplifier TPA6120 HIFI Headphone AMP 160W+160W Bluetooth 4.0 Support APT-X Black
Description:
- With bluetooth and external analog audio , bluetoot htakes priority
- This amplifier integrated headphone amplifier, chip is TPA6120
- Headphone amplifier output with protection corcuit
- CSR bluetooth 4.0, CSR8645
- Differential transfer single end OP AMP chip for bluetooth module
- Super power, 160W+160W
- Add wireless bluetooth receiving and decoding function
Perfrormance:
- When DC36V 160W+160W, RL=4Ohm, THD=10%
120W+120W, RL=6Ohm, THD=10%
100W+100W, RL=8Ohm, THD=10%
- Signal input: RCA gold-plated RCA signal input
- Signal output: 4tvl signal output
- Power supply: DC15-36V 3A and above
- PCB: Thickness 1.6mm, glass fiber
Specifications:
- Dimension: 178*114*33mm
- Color: Black
- Material: Aluminum
Package list (no power supply) :
- 1 x Digital Amplifier
