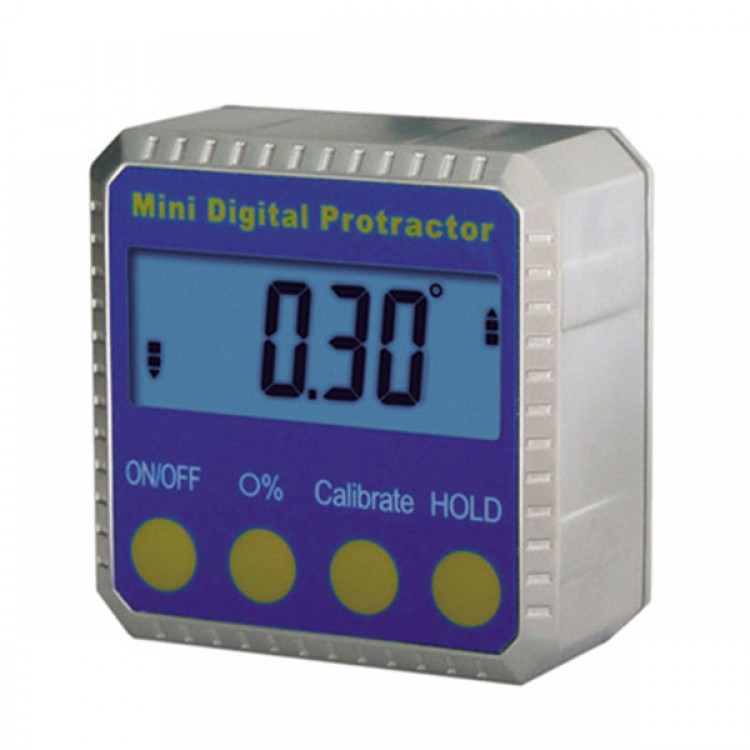

Digital Bevel Box Inclinometer Angle Gauge Meter Protractor 360 Degree
Descriptions:
- This inclinometer (angle measuring device) can be used to measure angles within ±180° (0 ~ 360°) range in wide variety of applications. You can simply place the meter on a reference surface zero, then it will give a result of measured angle within 0.1° accuracy.
- The built-in strong disk magnets on the bottom can firmly attach the meter to the surface you are going to measure, so that you can easily and quickly set the bevel angle. The reading is always displayed as upright. This meter works great for miter and table saws, detailed applications are listed as follows.
Applications
- Drainage angles and run-off slopes
- Tool setting on Lathes
- Setting blade angle of Circular Saws
- Setting blade angle of Miter Saws
- Setting work piece angle for milling
- Grader and tractor work alignment
- Platform monitoring
- Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table
Features
- Small and portable design
- Fast and accurate measurement
- Degree and Percentage of slope in conversion
- Measuring range of 4 x 90° with ±0.1° repeatability
- Large and clear LCD display with 0.1° resolution
- Hold Measured data
- Calibrate button to calibrate the meter to any reference surface
- Three built-in magnets on the base can attach any magnetic surfaces
- The unit will directly enter the state of absolute angle measurement every time be turned on (No matter change the batteries)
- Absolute and relative measurement conversion
Specifications
- Measuring Range: 4 x 90°
- Resolution: 0.1°
- Repeatability: ±0.1°
- Operating Temperature: 0 ~ 40 °C
- Operating Humidity: 40 ~ 80%
- Power: 3 x 3V CR2032 Batteries (Included)
- Dimensions: approx. 51 (L) x 51 (W) x 27 (D) mm (2.01’ x 2.01’ x 1.06’ inch)
- Weight: 122 g
Package Includes
- 1 x Bevel box
- 3 x 3V CR2032 Batteries
- 1 x Instruction Manual
- Standard Factory Package
