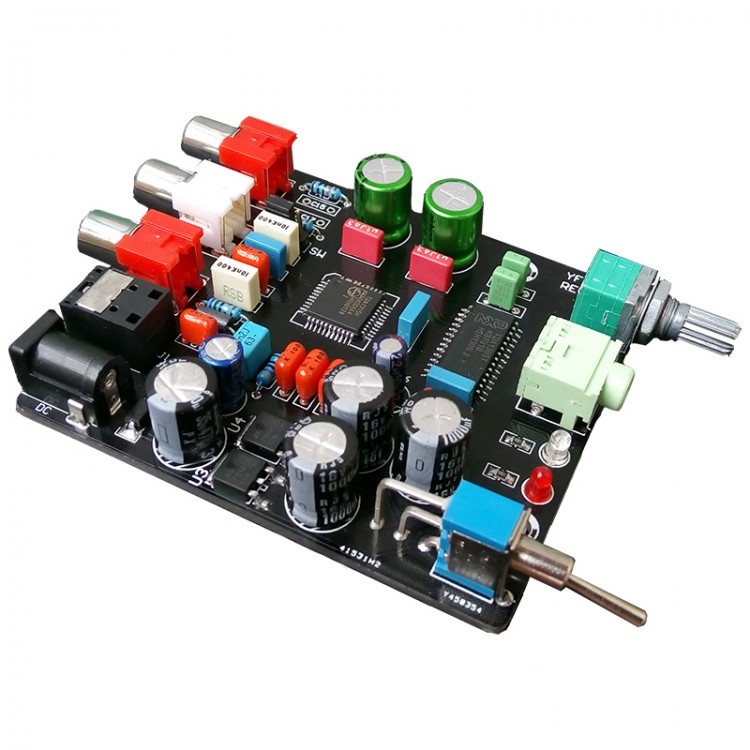

Digital Decode Board Optical Fiber Coaxial DAC TDA1305 Decoding Board w/ Amp Output Plug Hole

Digital Decode Board Optical Fiber Coaxial DAC TDA1305 Decoding Board w/ Amp Output Plug Hole

Description:
- This DAC decoder can convert digital sound source with co-axis output into analog audio signal, such as CD, DVD, Set Top Box, car audio, computer sound card. To make the voice sounds better
- All the resistance capacitors on the encoder board are fever components. Signal light is at off state when there has signal, on the contrary, the light will be on. This board has excellent sound quality, can be used as earphone amplifier ouput, the great partner of low end sound for upgrading
- Analog audio output interface is not controlled by sound potentiometer, sound isn't adjustable, output default largest sound. Potentiameter can only control earphone output interfance sound, and the earphone sound voice can be adjusted
- Digital signal input chooing mode: If jump cap is plugged in optical input near the output end, it is available. Or the jump cap pluged in co-axis input near potentiometer is available.
- Wide voltage input, DC8V-20V can guarentee the normal work

Many fever amplifier adopts TDA1305 this chip as DAC decoder
   CAMBRIDGE AUDIO CD6     TDA1305T
   CYRUS dAD3                      TDA1305
   MICROMEGA STAGE6          TDA1305
   MISSION dAD3                   TDA1305
   NAIM AUDIO CD3.5            TDA1305
   NAIM AUDIO CD5               TDA1305
   PINK TRIANGLE NUMERAL   TDA1305T
   ROKSAN CASPIAN               TDA1305
   ROTEL RCD-970BX              TDA1305T
   ROTEL RCD-975                  TDA1305T

Specification:
- Power supply voltage: DC 8V-20V.
- Dimension size: 80mm*70mm
