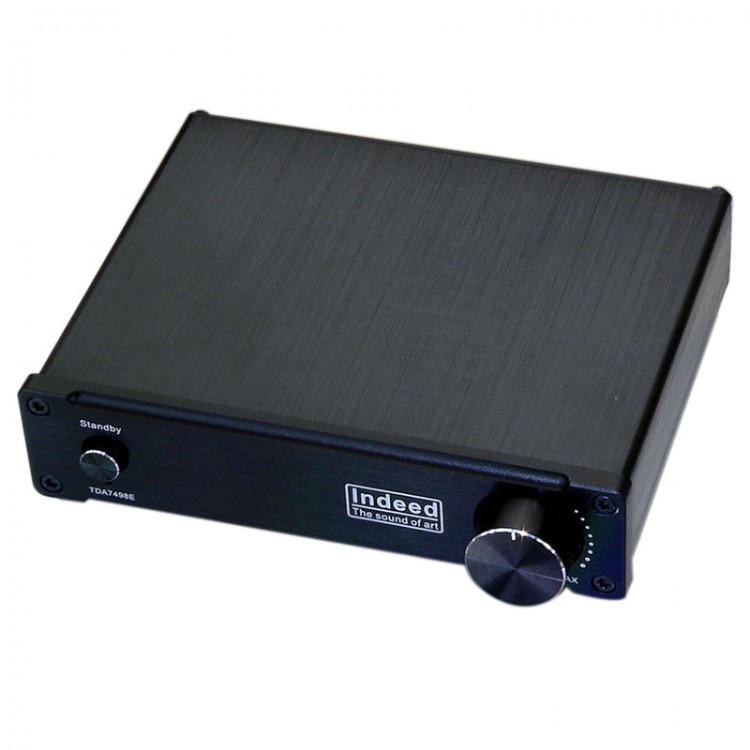

Digital High Power Indeed Class D DC12-36V HiFi Amp TDA7498E 160WX2 Stereo Amplifier + 36V5A Adapter BLK

Digital High Power Indeed Class D DC12-36V HiFi Amp TDA7498E 160WX2 Stereo Amplifier + 36V5A Adapter BLK

Description:
- The Indeed TDA7498E is a so-called Class D integrated amplifier, based on the STMicroelectronices chipset.
-The chip makes use of a kind of "Digital Power Processing",this is, more or less, a Class D amplifier with high rate switching properties.
- High Power and digital Indeed TDA7498E 160 Watts X 2 R.M.S (4 Ohm) Amplifier!

What’s new come from this Indeed TDA7498E amplifier?
1. The DC power reserve up to 2 X 8200MFd 50V with Japan nichicon capacitors, deep bass as punch in sound reproduction.
2. High cost OFC Copper Air Coils will get good Q-values than ferromagnetic core base coil, frequency response is very good linearity in both high/low end and less losses; the sound effect is smooth and sweet to hear like as analog LP records.
3. Indeed TDA7498E amplifier can be drive the low sensitive speaker more dynamic and excite even loading to 4 Ohm impedance, either the speaker has 83dB only!
4. We can period 1 year warranty since you buy it, because we are Indeed HiFi Lab.

Specification of Indeed TDA7498E amplifier:
- Input power: DC 12-36V <4A
- Power socket : (5.5mm outlet / 2.5mm centre pin) x 1
- Audio Input: RCA input (Left/Right) X1  / 3.5mm stereo socket X1
- Input sensitive: 200mV
- Speaker OUT (Left) x 1 pair (+ / -)
- Speaker OUT (Right) x 1 pair (+ / -)
- Single LED Indicator : Red (stand by) Green( Power ON)
- Power Output (DC36V power supply) ：
  160W+160W R.M.S : RL = 4Ω，THD =10%
  120W+120W  R.M.S:  RL = 6Ω,  THD = 10%
  100W+100W  R.M.S:  RL = 8Ω,  THD = 10%
- Amplifier Efficiency：90%
- SNR:100dB
- Front Panel: Silver or Black
- Case Material: Fully Aluminum Alloy
- Over all dimension:(W)140mm x (H)40mm x (D)140mm
- Net Weight: 0.56Kg

Specification of Indeed SDK-3605 DC adapter:
- AC input power: AC90-265V 50-60Hz >3A / IEC socket
- DC output: DC 36V 5000mA (5A)
- DC Power jack (5.5mm outlet / 2.5mm centre hole)
- Dimension:(W)82mm x (H)40mm x (D)170mm
- Length of DC cable: 950mm
- No any AC power cord / plug including

Package contents:
- 1 x  Indeed TDA7498E Black panel version Amplifier
- 1 X  Indeed adapter SDK-3605 AC90~265V 50/60Hz  to DC36V5A (without any AC power cord in package)
