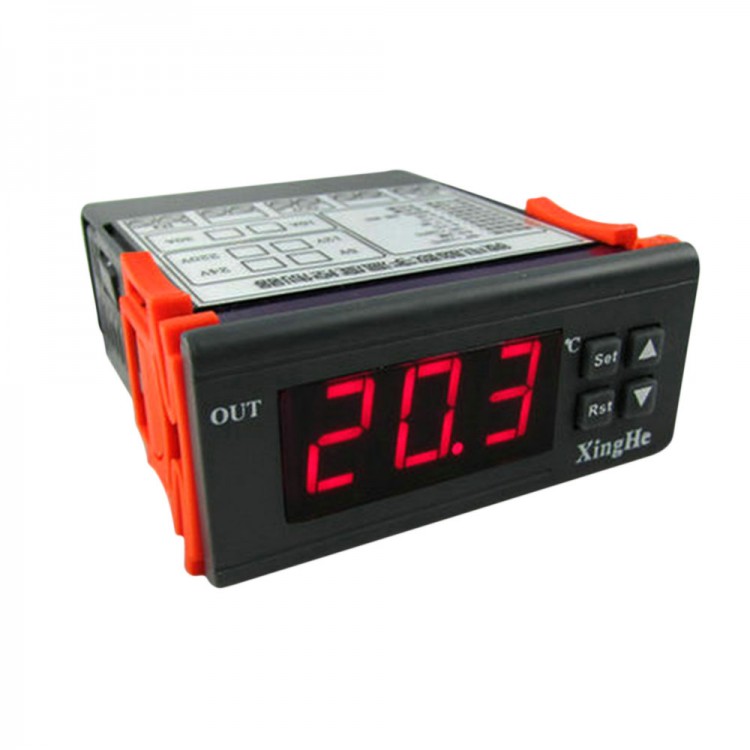

Digital Intelligent Temperature Controller Microcomputer DC12V -55 to 120 Degree C Thermostat Cool Heat Switch XH-W2020

Digital Intelligent Temperature Controller Microcomputer DC12V -55 to 120 Degree C Thermostat Cool Heat Switch XH-W2020

Specification:
- Model:XH-W2020
- Supply voltage:12V
- Output voltage:12V
- Temperature control range: -55~120 Degree Celsius
- Resolution:0.1Degree Celsiu(-9.9~99.9Degree Celsius );
- Other Temperature:1Degree Celsius
- Temperature measurement accuracy:0.2%FS
- Refresh rate:0.5s
- Thermostat probe: NTC 3950 / B = 10K 0.5%(waterproof type 1M)
- Output:directly output; Maximum capacity 10A
- Environmental Requirements: -30 ~ 60  Degree Celsius Humidity 20% -85%
- Dimensions: 77 * 35 * 88mm
- Mounting holes dimension: 70.5*29mm

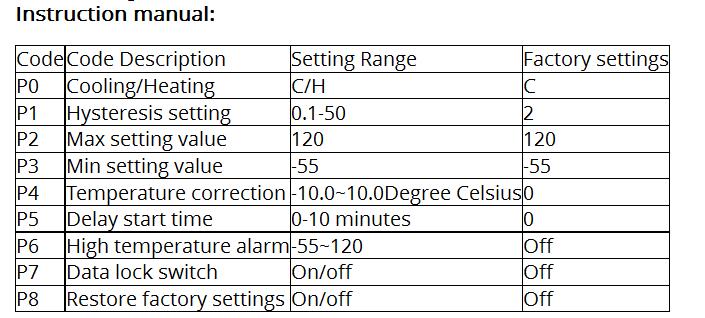

P0:Cooling/Heating mode
High temperature start cooling mode:C
low temperature start heating mode:H

P1:Hysteresis setting
heating mode(H):measured value<=set value - hysteresis start output heated to set value to stop
cooling mode(C):measured value>=set value - hysteresis start output cooled to set value to stop

P2:Max setting value
the setting maximum temperature does not exceed this value

P3:Min setting value
the setting minimum temperature does not lower than this value

P4:Temperature correction
When measuring the temperature and the standard deviation of temperature, you can use this function to correct.Corrected temperature = Temperature before correction + Correction value

P5:Delay start time (minute)

P6:High temperature alarm
When the measured temperature exceed this value,the screen will flash and send out warning beeps,at the same time forced turn off output.

P7:Data lock switch
Turn on the data lock switch,can keep the current setting is not altered.If you need to alter,please turn off the data lock switch.

P8:Restore factory settings
Long press SET button to swith P8,and press SET button again,set to on,then press RST button to restore factory settings.

Package list:
- 1 x Temperature Controller
