Digital LCR Bridge Tester Resistance Inductance Capacitance Meter ESR Test Type-C Power Supply Version

Digital LCR Bridge Tester Resistance Inductance Capacitance Meter ESR Test Type-C Power Supply Version

Specification:
Display: main display 1999.9 count, secondary display 999.9 count
Measuring frequency: 100HZ/1KHZ/7.8KHZ
Measuring voltage: 0.2Vrms
Output impedance: 40Ω
Basic accuracy: 0.3%

Features:
-Hardware version V3.0, software version V5.5
-Range L 0.05uh--2000h R 0.1 milliohm-20 megabytes C 1p-200,000 microfarads
-LCR automatic recognition / manual measurement
-Open/short calibration compensation

Main parameter display / Secondary parameter display / Secondary parameter display range
Cp: capacitor parallel mode / Q: quality factor / Q: 0.000-999.0
Cs: capacitor series mode / D: loss factor/ D: 0.000-9.999
Lp: inductor parallel mode / θ: phase angle / θ: -179.0-+179.0
Ls: inductor series mode / Rp: equivalent parallel resistance
Rp: resistance parallel mode / ESR: equivalent series resistance
Rs: resistance series mode / Xp: equivalent parallel reactance
Xs: equivalent series reactance

Package List:

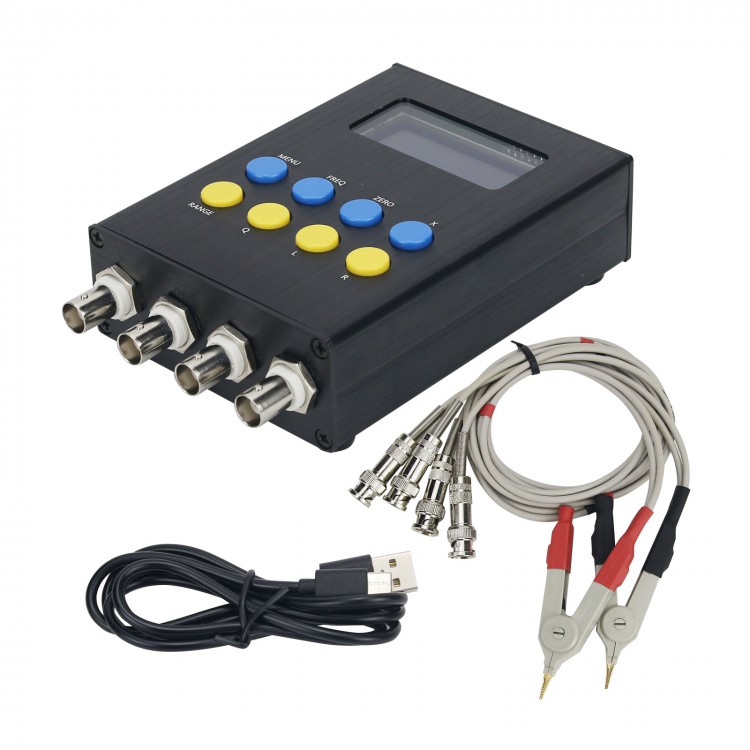

-1 x LCR Bridge Tester
-1 x Test Wire Kit
-1 x Type-C Charging Cable

Note:
-This bridge tester is a finished product, using 12V 1A power adapter.
-For the battery version, three 1860 batteries are connected in series with a 0.3V voltage drop diode and a 10 ohm current limiting resistor plus a 0.5 ampere fuse. Prevent the power supply chip from being burnt out at the moment when the leakage current is too large.
-HC HP is a group, connected to the red clip. LC LP is a group, connected to the black clip. It's an AC test regardless of positive or negative.
-Do not test live components, be sure to discharge the capacitor before testing the capacitor.
-Please don't connect the case to the earth, and don't touch other charged objects.
