Digital Microscope Endoscope Electronic Magnifer Continuous Magnification for Industry Cell Measurement
Description:

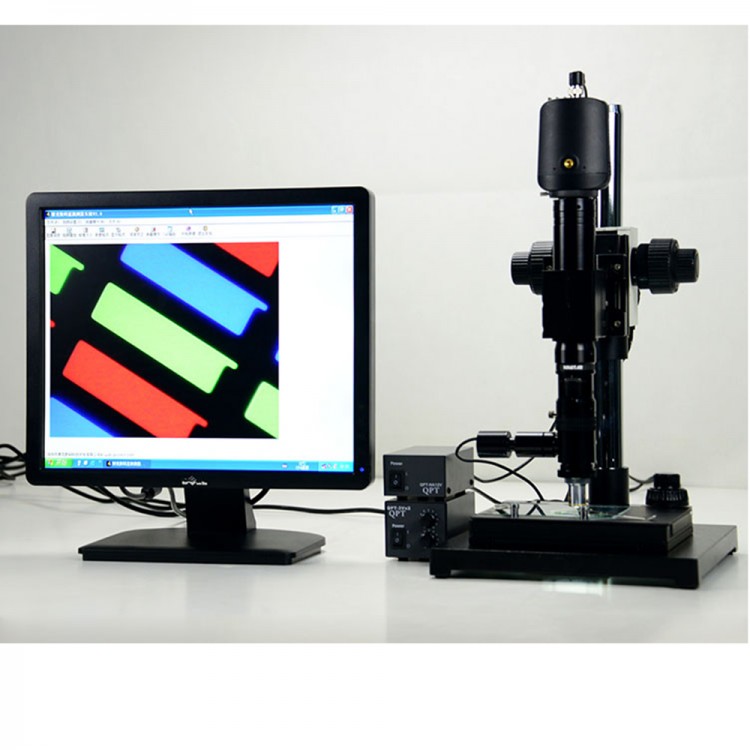

Infinite zoom lens with 5x, 10x and 20x infinity lens is composed of high times long working distance and large depth of field for the high resolution imaging system . With the zoom lens, 10x objective, point source and controller, mobile sources,, mobile platform, does not contain a camera and a display. Other objective lens and light source and professional measurement software. This is a highly versatile show slightly, widely used in wafer, material, powder, fiber, chemical, molecular cell.
Specification:
- Platform size: 280*250*25mm
- Mobile platform: horizontal 75mm vertical 55mm
- Zoom Objective: 0.7-4
- Zoom ratio: 1:5.7
Optical power:
- 5X Objective: 35X-230 times of continuous magnification
- 10X Objective: 70X-460 times zoom (standard)
- 20X Objective: 140X-920 times of continuous magnification
Above the equivalent optical magnification
Electron multiplying power:
- 5X Objective: 175X-1150 times of continuous time
- 10X Objective: 350X-2300 times zoom (standard)
- 20X Objective: 700X-4600 times of continuous magnification
electronic magnification = 14 inch display size / size
- Pixel magnification:
- 5X Objective: 5250X-34500 times the continuous zoom
- 10X Objective: 10500X-69000 times zoom (standard)
- 20X Objective: 21000X-138000 times of continuous magnification
- Working radius: 130mm
- Object Max height: 80mm
Package included:
- 1 x Microscope
