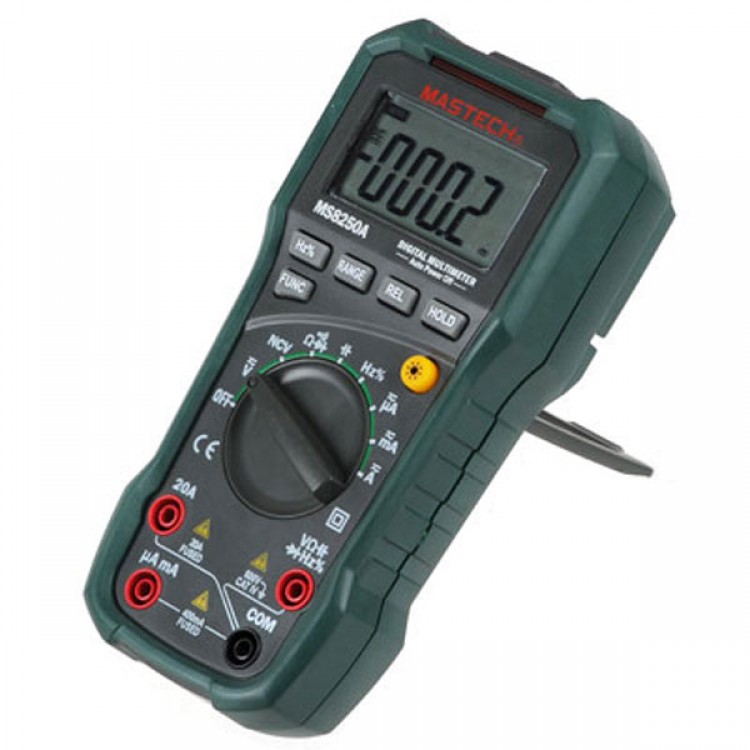

Digital Multimeter MASTECH MS8250A
Features:
- Conform to the CAT.Ⅳ600V
- Non-contact voltage detect
- True Root Mean Square Measurement
- Low Battery indication
- Windows OS USB interface
- Rel Function
- Auto Power Off
Specifications:
| Specification | Range | Accuracy | ||
| MS8250A | MS8250B | MS8250C | ||
| DC Voltage | 400mV/4V/40V/400V/1000V | ±(0.5% +2) | ±(0.5% +2) | |
| 660mV/6.6V/66V/660V | ±(0.5% +2) | |||
| AC Voltage | 400mV/4V/40V/400V/750V | ±(0.8% +2) | ±(0.8% +2) | |
| 660mV/6.6V/66V/660V | ±(1.0% +2) | |||
| DC Current | 400µA/4000µA/40mA/400mA | ±(0.8% +2) | ±(0.8% +2) | |
| 4A/10A | ±(1.2% +2) | ±(1.2% +2) | ||
| 660µA/6600µA/66mA/660mA | ±(0.8% +2) | |||
| 10A | ±(2.0% +2) | |||
| AC Current | 400µA/4000µA/40mA/400mA | ±(1.5 % +2) | ±(1.5 % +2) | |
| 4A/10A | ±(3.0 % +2) | ±(3.0 % +2) | ||
| 660µA/6600µA/66mA/660mA | ±(1.2 % +2) | |||
| 10A | ±(3.0 % +2) | |||
| Resistance | 400Ω/4kΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(1.2% +2) | ±(1.2% +2) | |
| 660Ω/6.6kΩ/66kΩ/660kΩ/6.6MΩ/66MΩ | ±(0.8% +2 | |||
| Capacitance | 50nF/500nF/5µF/50µF/100µF | ±(3% +5) | ±(3% +5) | |
| 6.6nF/66nF/660nF/6.6µF/66µF/660µF/6.6mF/66mF | ±(3% +2) | |||
| Frequency | 0~ 5MHz | ±(0.5% +2) | ±(0.5% +2) | |
| 0~ 66MHz | ±(0.3% +2) | |||
| Duty Cycle | 5%~ 95% | ±(2% +2) | ±(2% +2) | ±(2% +2) |
| Features | ||||
| Display | counts | 4000 | 4000 | 6600 |
| Auto Ranging | √ | √ | √ | |
| Manual Ranging | √ | √ | √ | |
| REL | Relative Measurement | √ | √ | √ |
| True RMS | True root mean square measurement | √ | ||
| NCV | Non-contact voltage detection | √ | √ | √ |
| Diode | 2.7V | √ | √ | √ |
| Continuity Buzzer | <50Ω | √ | √ | √ |
| MAX/MIN | √ | √ | √ | |
| Data Hold | √ | √ | √ | |
| APO | Auto power off | √ | √ | √ |
| LBD | Low battery display | √ | √ | √ |
| Display Backlight | √ | √ | √ | |
| USB Interface | Windows OS | √ | √ | |
| General | ||||
| Power Supply | 1×9V6F22 Battery | √ | √ | √ |
| Product Size | 180mm×86mm×52mm/7.1”×3.4”×2.0” | √ | √ | √ |
| Product Weight | 250g/0.6lb | 250g/0.6lb | 350g/0.8lb | |
| Category | CAT.IV600V | CE ETL | CE ETL | CE ETL |
