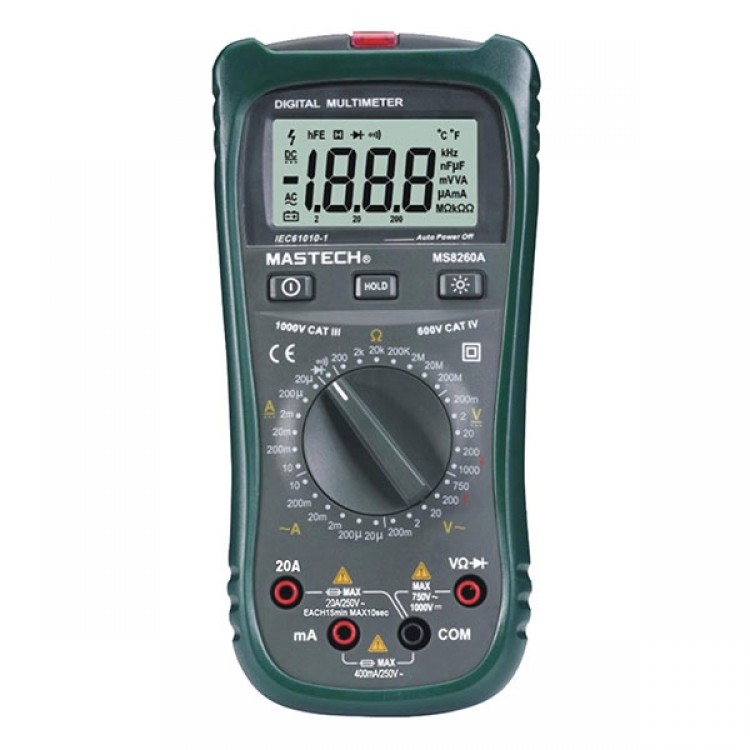

Digital Multimeter Professional Mastech MS8260A DMM VOLT STICK Tester Electrical AC/DC Ammeter Voltmeter LCR Meter Detector
Features:
Large 2000 counts LCD display
Built-in non-contact voltage detector
Tests AC/DC voltage and current, resistance
diode and continuity test
Data hold and display back light
Allowed maximum voltage between the measuring terminal and the earth: 1000V DC or 750V AC RMS
Fuse Protection: mA file: Fuse FF 400mA/250V; A file fuse F 20A/250V
Overload Protection
Safety rating up to CAT.IV 600V
Specification:
DC Voltage: 200mV/2V/20V/200V(0.5%+1) 1000V(0.8%+2)
AC Voltage: 200mV(1.2%+3) 2V/20V/200V(0.8%+3) 750V(1.2%+3)
DC Current: 20uA(2%+5) 200uA/2mA/20mA(0.8%+1) 200mA(1.5%+1) 20A(2.0%+5)
AC Current: 20uA(2%+5) 200uA/2mA/20mA(1.0%+5) 200mA(1.8%+5) 20A(3.0%+7)
Resistance: 200/2k/20k/200k/2M0.8% 20M(1.0%+2) 200M(5.0%+10)
Audible continuity: < 30 ohm
Diode test: 1 mA , 2.8V
Battery: 9Vx1, NEDA 1604/6F22 (NOT INCLUDE)
Size: 188 mm(L)x 92 mm(W)x 50mm(H)
Weight: 13 Oz
Package includes:
1 * MS8260A Digital Multimeter (with 1 set test leads)
1 * User Manual
