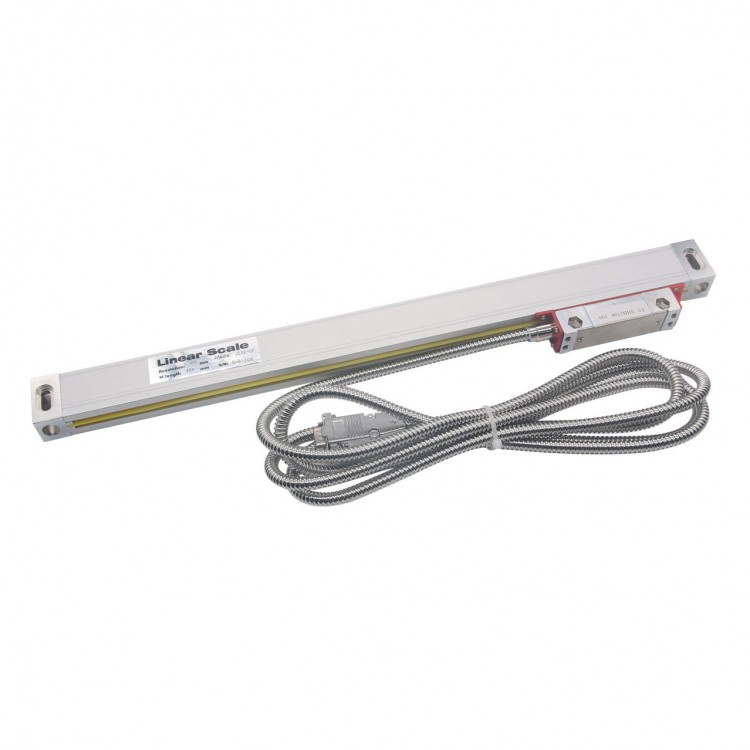

Digital Readout Linear Scale Linear Glass Scale Optional Travel Length 550-900mm for Milling Machine

Availability: In stock, usually dispatched in 1 business day

  • Price:$83.17
  • Price in reward points: 832 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $81.51 $79.84 $77.35 $74.02 Contact US
Quantity:

Digital Readout Linear Scale Linear Glass Scale Optional Travel Length 550-900mm for Milling Machine

Description:

Glass scales:
- Optional Travel Length: 550-900mm. (Pls kindly tell us your needed travel length after placing an order)
- TTL output, 5um/0.0002” resolution, anti-dust, anti-coolant, double-sealing design at IP53 insulation/protection level;
- Various international quality accreditations including CE certification, ISO9001 certification, JT25/JT26 certification, JT20 certification, JX13 certification.
- Are our scales well-sealed and protected against dust and coolant? We believe that claiming “double sealing” by ourselves is not enough at all. We have the IP53 insulation/protection certificate to prove! Are other sellers providing you the internationally recognized certificate?

IMPORTANT: We guarantee that we supply authentic SINPO scales to you. The model number of SINPO scales should start with “JCX”, and the manufacturer is “CHFOIC”. Please look carefully at our photos and check if you have gotten the real SINPO products.

Linear Glass Scales Features:
1. High Precision linear scale
2. Resolution: 5um (0.005mm) 0.0002”
3. Signal: TTL square /wave EIA-442
4. Grating pitch: 0.02mm (50LP/min)
5. Accuracy: ±0.005 mm or 0.0002" (at 20 deg C)
6. Reference marks at interval of 50mm
7. Response Speed: 60m/min or 40ins/sec
8. Cable length: 2.5 Meter (can lengthen)

Package Included:
- 1 x Digital Readout Linear Scale
