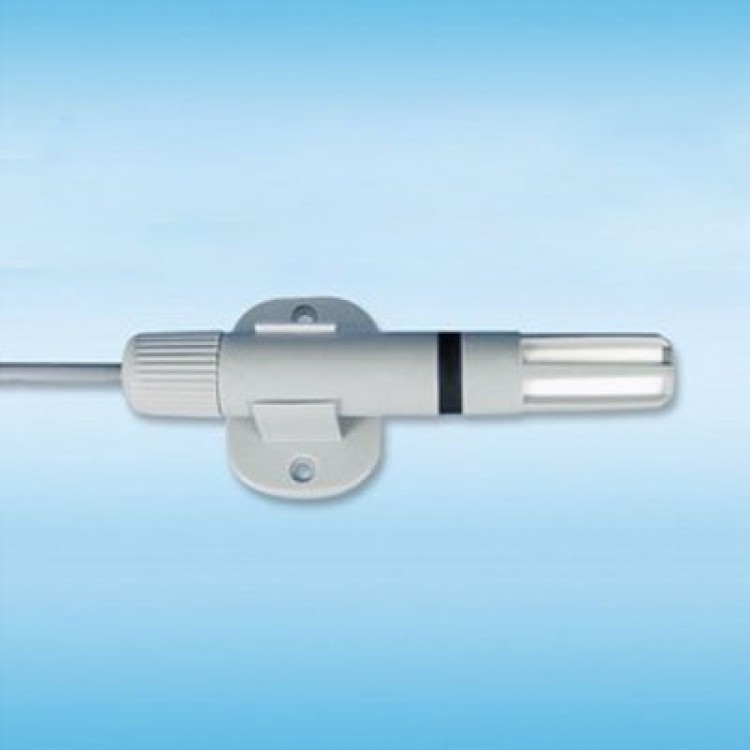

Digital Relative Humidity Temperature Sensor AM2305

Digital Relative Humidity Temperature Sensor AM2305
 Features:
- High precision
- Capacitive type
- Outstanding long-term stability
- Full range temperature compensated
- Relative humidity and temperature measurement
- Calibrated digital signal
- Extra components not needed
- Long transmission distance, up to 100 meters
- Low power consumption
- Three-core shielded cable as outgoing line
Description:
- Am2305 output calibrated digital signal. It applys exclusive digital-signal-collecting-technique and humidity sensing technology, assuring its reliability and stability. Its sensing elements is connected with 8-bit single-chip computer.
- Every sensor of this model is temperature compensated and calibrated in accurate calibration chamber and the calibration-coefficient is saved in type of programme in OTP memory, when the sensor is detecting, it will cite coefficient from memory.
- Small size & low consumption & long transmission distance(100m) enable AM2305 to be suited in all kinds of harsh application occasions. Single-row packaged with four pins, making the connection very convenient.
Specification:
- Model: am2305
- Power supply :3.3-6V DC
- Output signal :digital signal via 1-wire bus
- Sensing element for RH : Polymer humidity resistor
- Sensing element for T :Apply Dallas DS18B20 for detecting temperature
- Operating range : humidity 0-100%RH;
- temperature: -40~120Celsius
- Accuracy : humidity +-2%RH(Max +-5%RH);  temperature +-0.3Celsius
- Resolution or sensitivity:  humidity 0.1%RH; temperature 0.1Celsius
- Repeatability : humidity +-1%RH; temperature +-0.2Celsius
- Humidity hysteresis :+-0.3%RH
- Long-term Stability :+-0.5%RH/year
- Interchangeability: fully interchangeable
- Dimension :2*2*10cm
- net weight:  0.03kg
