Digital RF Power Meter -75～+16dBm Ultra-Small LCD Auto Backlight

Digital RF Power Meter -75～+16dBm Ultra-Small LCD Auto Backlight

Technical Parameters:
- Measuring power range -75 to +16 dBm (external RF attenuator can be extended to 100dBm)
- Measuring power resolution 0.1 dBm
- Measurement frequency range 1 to 600 MHz
- Output interface SMA_K
- Operating Voltage 6～12 VDC
- Operating Current <45 mA (Backlight On)
- Operating Temperature -40°C～65°C Celsius
- Storage Temperature -40°C～65°C Celsius
- Size 57*58*14 mm Length X Width X Height

Interface Display & Operation Instructions:
1. The Main Display:
 The first line shows RF Power Meter
  The second line shows P power dBm; AT attenuation dB
  (The main menu is the measurement result which can not be changed. )
 2. Function Menu:
   A. Attenuation Settings Menu:
       The first line shows Attenuation Menu
       The second line shows ATTN: XXdB
Enter menu function key: Long press ENTER and then press quit ADD SUB to execute +,- operation
   B. Internal Compensation Settings:
        First Line ADC Offset Menu
        Second line Offset : +/- xx
Enter menu function key : Press ADD+SUB ENTER at the same time to exit ADD SUB execution +, - operation
   C. Automatic Backlight Function : When there is no backlight Press any key to turn on the backlight
        The main key ENTER confirm or exit ADD number plus SUB for digital reduction

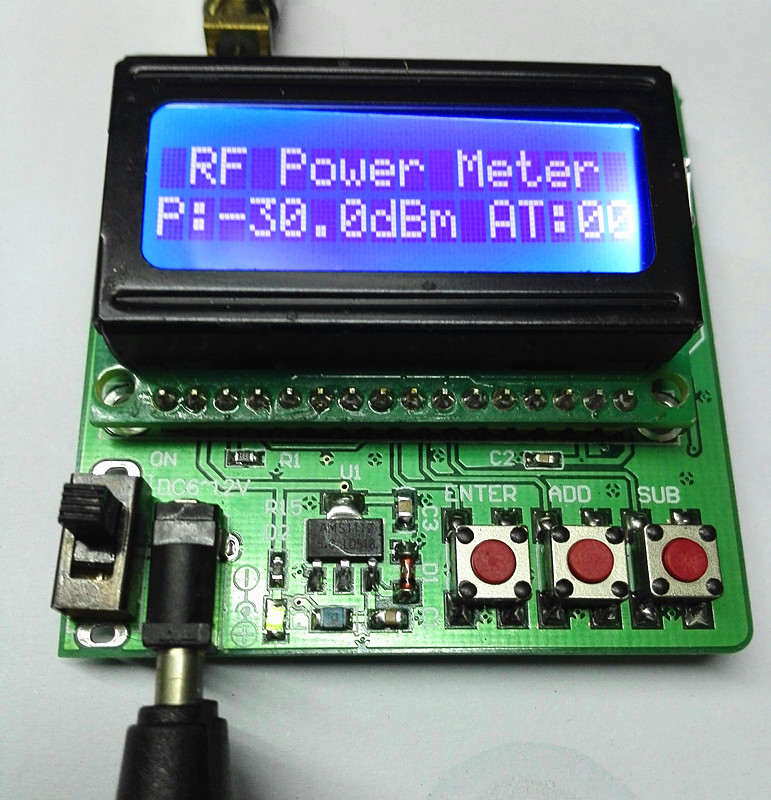

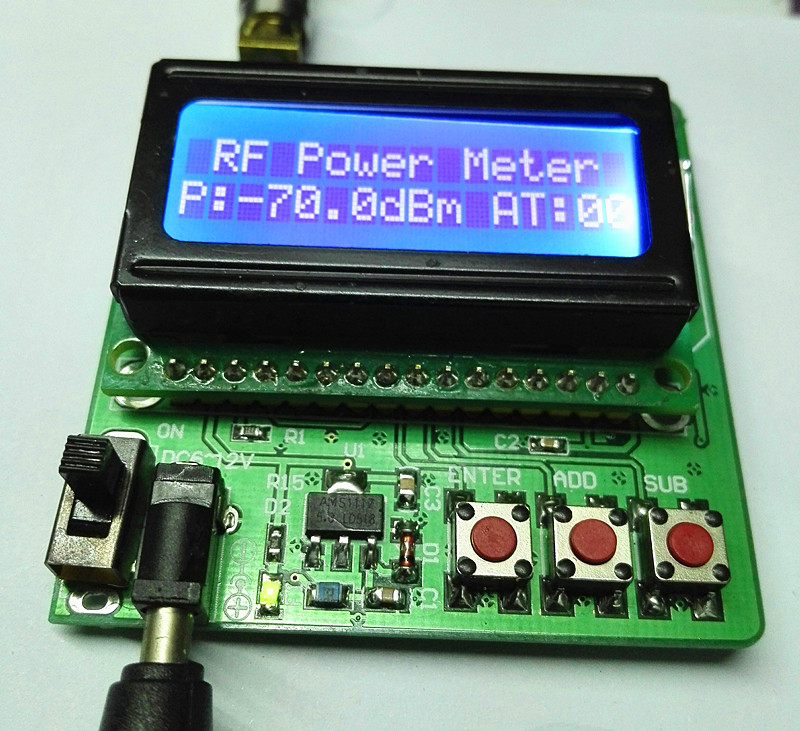

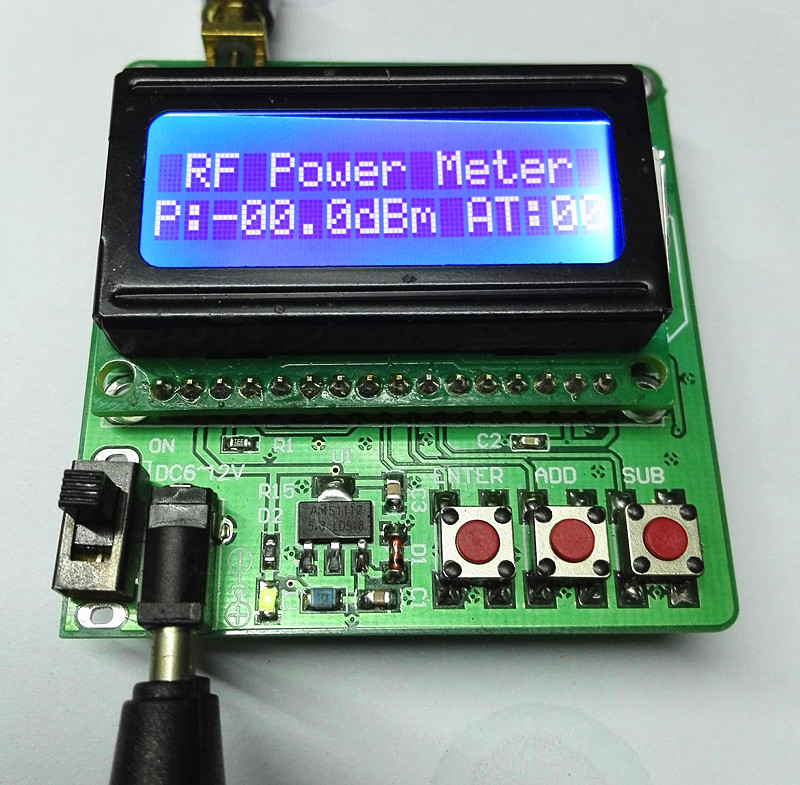

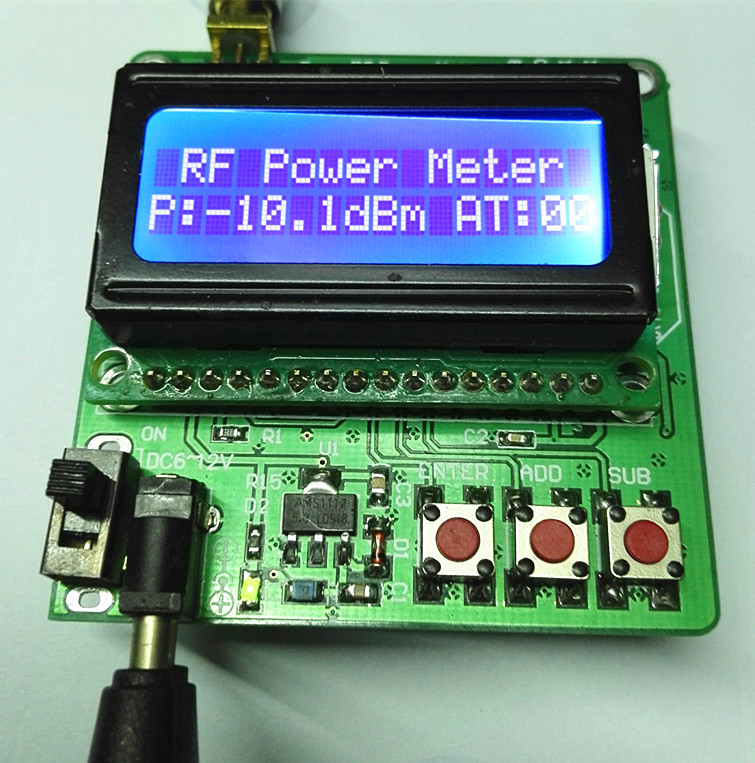

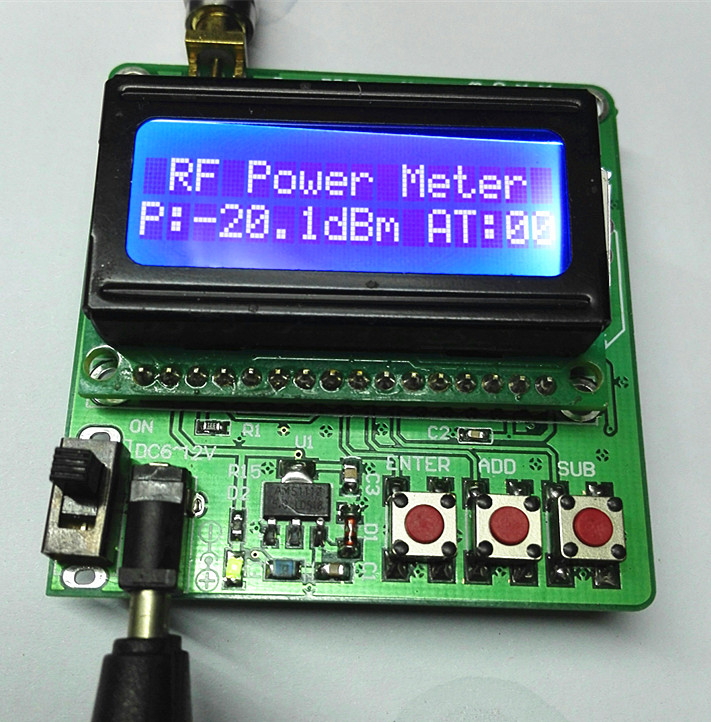

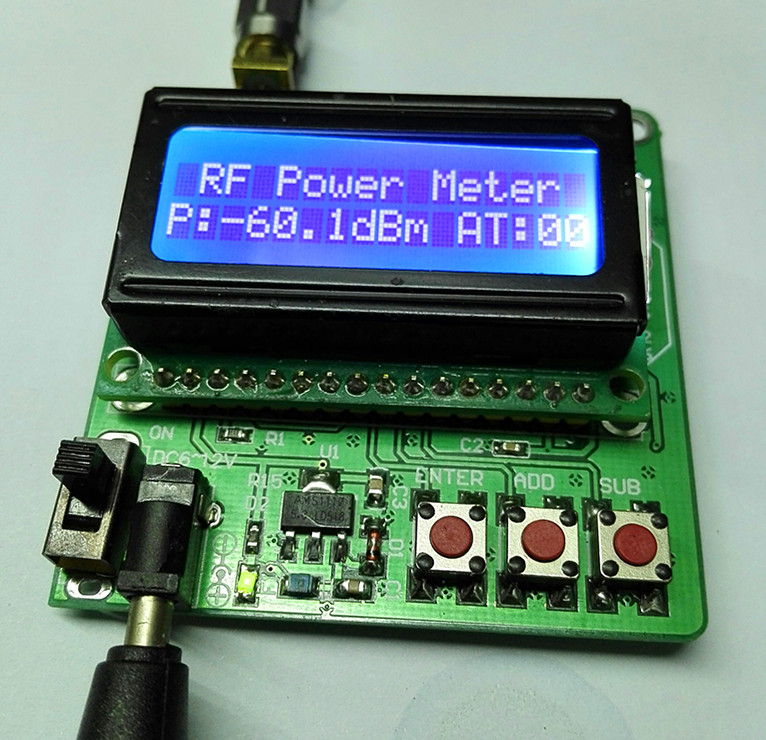

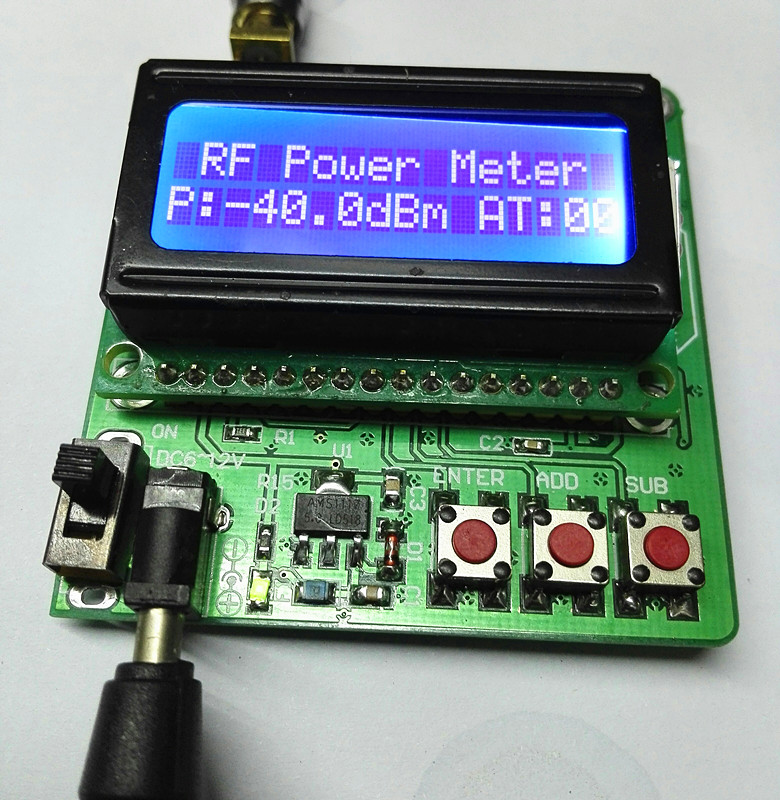

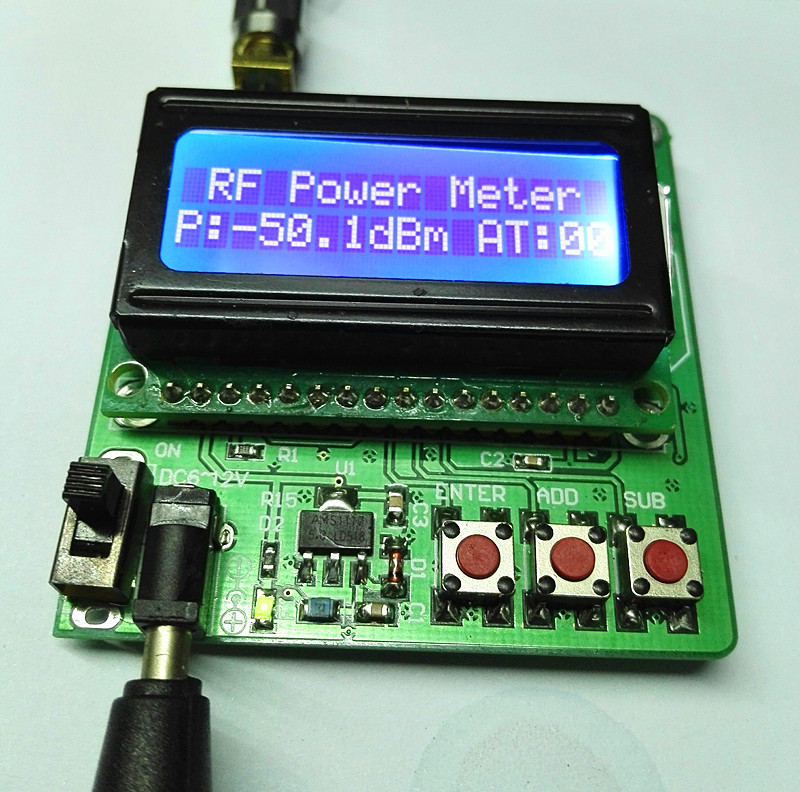

Below is the test chart after 0dBM passed Agilent 70DB attenuator

Package Included:
- 1 x RF Power Meter
