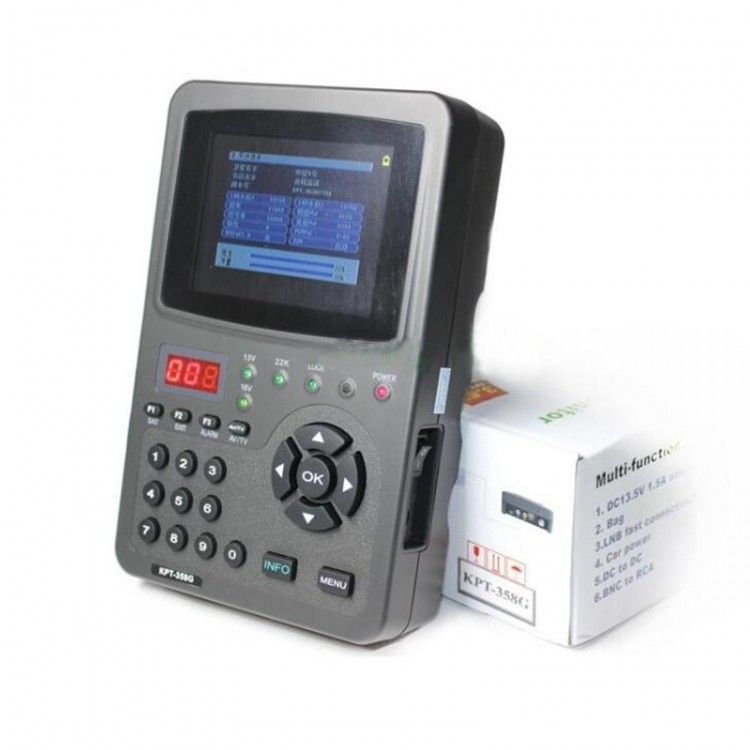

Digital Satellite Finder Meter w/3.5" LCD Explosion-Proof Screen 950MHz-2150MHz GX6101D Chip

Digital Satellite Finder Meter w/3.5" LCD Explosion-Proof Screen 950MHz-2150MHz GX6101D Chip

Advantages:
* 3.5 Inch High definition TFT LCD Screen which Can Play Channels
* Live FTA Digital Picture and Sound
* HDMI Output & AV Output and AV Input function
* Shows strength and quality readings
* LED digital tube: Synchronous display
* Sound and Light Alarm When Lock Signal
* Display Screen Add Glass Protection, Avoid being Pressed

Features:
- Built-in power supply, free of external power supply, the working time of star seeking reaches 3-4 hours (can be used as a 12V external power supply simultaneously);
- AV output and input function; with satellite reception image and signal quality display; signal quality synchronous LED display; unique satellite finder management; built-in high-frequency head protection circuit, built-in satellite signal warning (special finder signal quality change alarm prompt) , Support ChinaSat 9 ABS-S, DVB-S, DVB-S2, MPEG-4 and other high-definition satellite signal warning prompts, and provide signal bar synchronous display); satellite finding INF0 information double-amplified bar display, 13V/18V/22K/ The signal lock indicator is located on the machine panel and displayed synchronously.
- The machine adopts hand-held structure, small size and light weight. It is a special instrument for technicians of satellite TV receiving system engineering and monitoring engineering.
- The actual data display for the first, second, and third generations of the current ChinaSat 9 parameter test can be used. Beep change and LED quality change can be used to determine the strength of signal, and there is a signal amplification bar to enlarge the display. Image analysis DVB-S/MPEG-2 video decoding, ABSS, CVB2 signal beep warning and LED data display.

Specifications:
- Main chip solution: GX6101D
- LCD display: 3.5" TFT LCD
- Display size: 73*51 mm
- Menu languages: System languages: Chinese/English/Russian/French/Arabic
- Improvement: Compared with 968G, 358G adds a screen protector
- It is excellent in adjusting the compatibility of ChinaSat 9 household signal and HD signal, the signal quality value can reach 60-70, and the fine-tuning signal changes obviously, and the buzzer alarms.
- Buzzer alarm LNB short-circuit protection: The strength of signal can be judged by the change of the buzzer, and the adjustment can be completed without looking at the screen
- Signal catch: ChinaSat 9 households third-generation and fourth-generation high-definition signals, various special high-definition S2 format signals, all have signal quality value display, buzzer alarm and digital tube display.
- LNA input: F type male connector
- Input impedance: 75Ω(F)
- Frequency range: 950MHz-2150MHz
- Signal level: -65 to -25 dBm
- LNB power supply: 13/18V, Max. 400mA
- LNB switch control: 22KHz
- Video format: PAL/NTSC
- Decoding chip: For QPSK (compatible with SCPC and MCPC)
- Processor: 32bit processor (200MHz SDRAM: 16Mbyte)
- Speed rate: up to 15M bits/s
- Pixels: 320 x 240
- Audio mode: single channel
- Product size: 170 x 110 x 41 mm (LxWxThickness)

Package Included:
- 1 x Set of Satellite Finder
