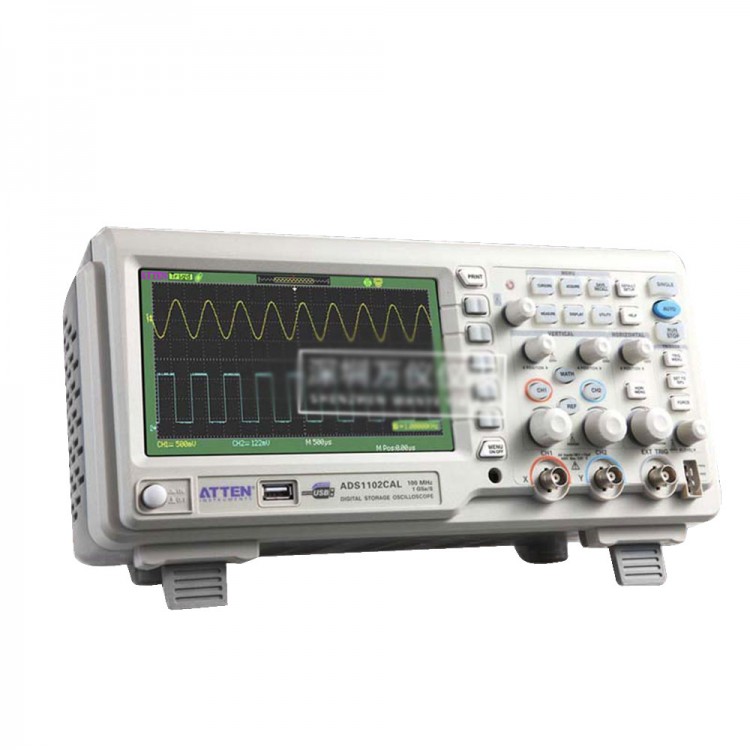

Digital Storage 100MHz Oscilloscope Scopemeter 2Channels 1GSa/s USB 7'' TFT LCD AC 110-240V GA1102CAL
Applications:
- The electronic circuit design and debugging
- Investigate the instantaneous signal
- Circuit function test
- Industrial control measur
Features:
- Brand new slim design, compact and more convenient to carry;
- Color TFT LCD display, waveform display more clear and stable;
- Rich trigger function: edge, pulse, video, slope, alternately;
- Unique digital filtering and waveform recording function;
- 6 Mpts waveform recording function, the maximum recording time 33.3 hours;
- 5 kinds of trigger functions: edge, pulse, video, slope, alternately;
- Pass / Fail function;
- 32 kinds of automatic measurement functions;
- 5 kinds of mathematical operations: +, -, *, FFT;
- Screen saver (1-5 minutes);
- 6 hardware frequency counter display real-time count;
- Two groups reference waveforms, 20 groups of common waveforms, 20 groups set up internal storage / recall; support waveform, set, CSV and bitmap files U disk external storage and recall;
- Manual, tracking, automatic cursor measurement functions;
- Channel waveform and FFT waveform while split-screen display;
- Analog channel waveform intensity and brightness adjustable mesh screen;
- Pop-up menu display mode, the user operation more flexible, natural;
- Rich interface display style: classic, modern, traditional, simple;
- Multilingual interface display, the English online help system;
- Independent channel control, button backlight design;
- Standard configuration interface: USB Host: Support U disk U disk storage system and through software upgrades; USB Device: Support PictBridge direct printing and connect the remote control and PC; RS-232.

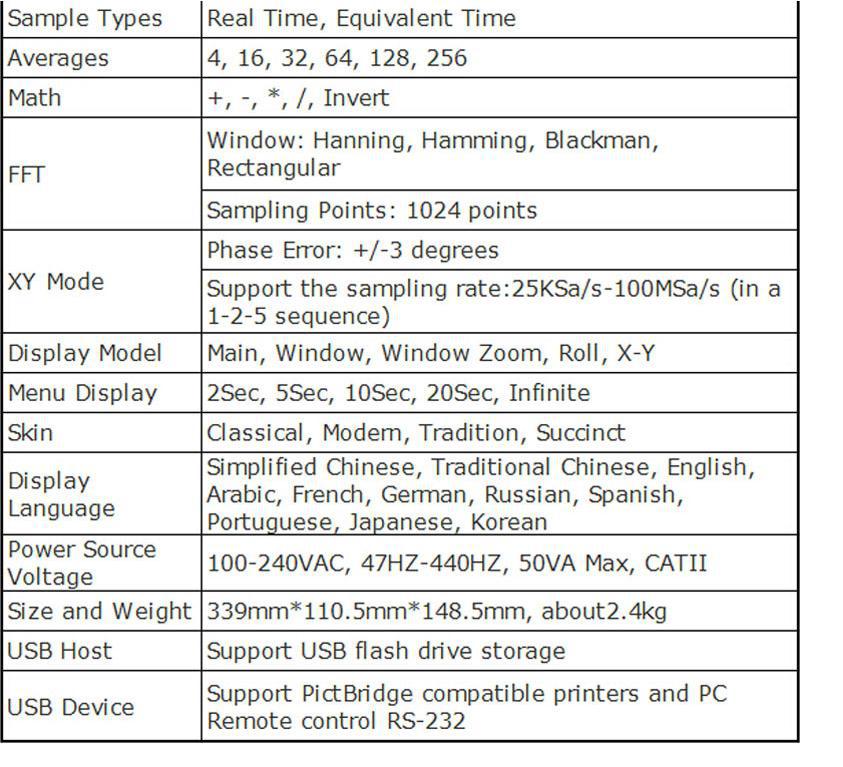

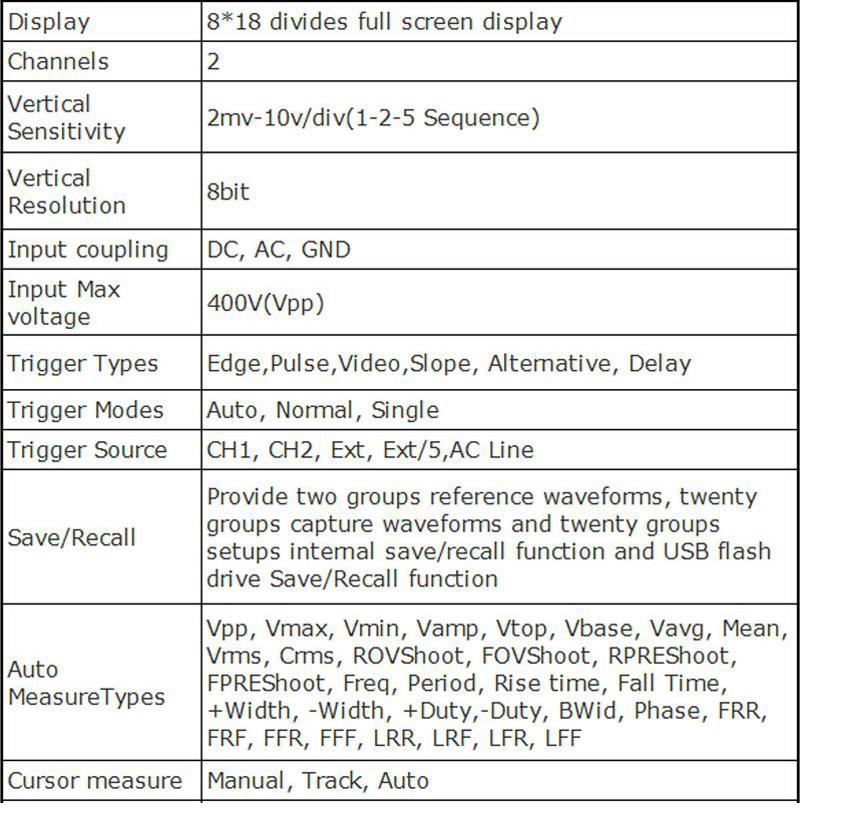

Specifications:
- Bandwidth: 100MHz
- Number of Channels: 2 channels + 1 external trigger channel
- Max real-time sampling rate: Single 1 GSa / S, dual-channel 500 MSa / S
- Equivalent sampling rate: 50 GSa / s
- Memory depth: Single 40K
- Rise time: <3.5ns
- Input impedance: 1MΩ || 17pF
- Timebase range: 2.5ns / div-50s / div, Roll: 100ms-50s / div
- Vertical Sensitivity: 2mv-10v / div (1-2-5 sequence)
- Vertical resolution: 8bit
- Display: TFT 7inch (178mm) LCD
Package included:
- 1 x Digital Oscilloscope
