Digital SWR WATT Meter 3.5" LCD For Walkie Talkie Handheld Transceiver DG-503
Introduction:
This digital SWR/Watt meter is highly accurate for measuring Forward Power, Reflected Power, and VSWR.
Features:
- 3.5 inch LCD digital display
- LCD backlight display is easy for users to read
- Simultaneously display the three indicators of [Forward Power], [Reverse Power] and [Right Wave Ratio], which can be read directly without any calibration.
- HF/VHF, UHF band switching button
- Equipped with 13.8V DC power cord
- The maximum measurable power range is up to 200 watts.
- High accuracy, low insertion loss
Specifications:
- Model: DG-503
- Frequency Range: 1.6-60MHz/125-525MHz
- Caibration point: 14MHz/50MHz/145MHz/435MHz
- Power Range: 0-200W
- Accuracy: (±5%)
- Minimum Power of SWR: 1W
- Input/output Connector: SO-239 M Head
- Weight (Net): 950g
- Insertion Loss: Less than 0.3dB
- Testing Function: Fwd/ref Power & VSWR ratio
- Input/output Impedance: 50ohm
- Dimension (W/H/D) mm: 140×82×122
- Accessories: Operation Manual, 13.8V DC wire

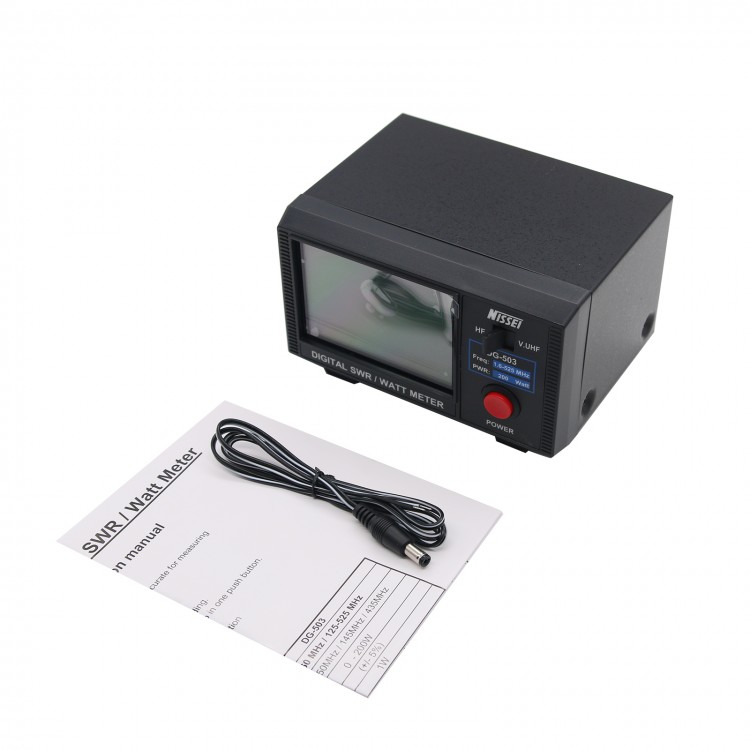

Package Included:
- 1 x DG-503 Digital SWR/Watt Meter
- 1 x User Manual
- 1 x 13.8V DC Wire
