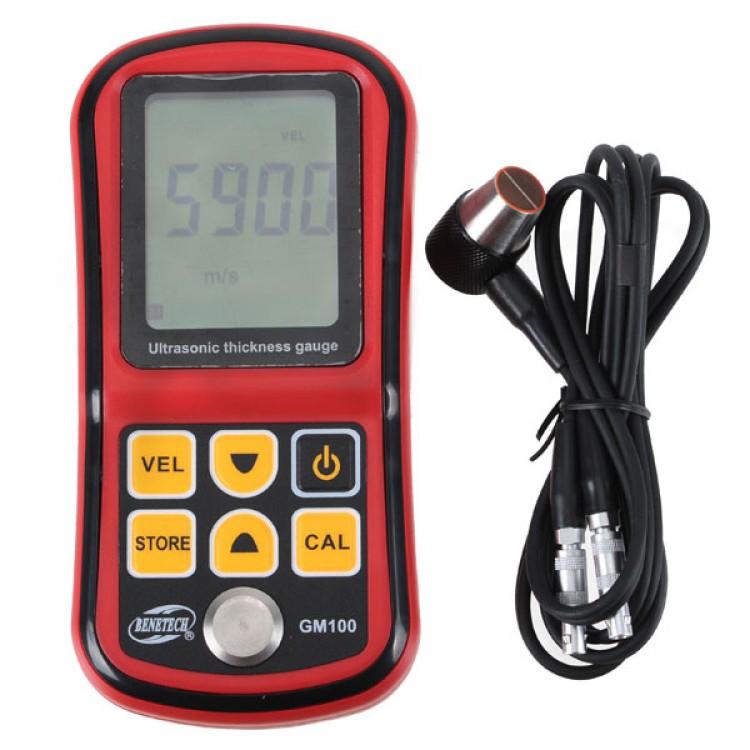

Digital Ultrasonic Thickness Meter Tester Gauge Velocity 1.2~225mm Metal GM-100
Descriptions:
- The Digital Ultrasonic Thickness Gauge is an intelligent that adopts ultrasonic measuring principle. Controlled by micro processor, offers immediate and precise measurement of thickness for most of industrial material.
- The measurement range of 1.20~225.00mm combined with ultrasonic wave velocity measurement function of 1000~9999m/s provides accurate measurement readings.
- Widely used in various precise measurements for different hardware/parts in industrial realm. One of its important applications is to monitor the level decreasing thickness during operation of various and pressure container.
- Diffusely applied in manufacture fields, metal processing as well as commercial inspection and can be applied for materials that conduct and reflect constant sonic velocity.
Features:
- Auto Calibration to assure the accuracy
- Auto linear compensation: this advanced software program enhances the precision by correcting the non-linear accuracy of transducer
- Use ▲ and ▼ keys to make a quick adjustment for the sound velocity/thickness and a quick recall to the stored data
- Coupling status indication: Observing the coupling icon to learn if the coupling is accomplished or not
- 10 thickness measurement storage and recall function available, which facilitated the height work or working in wild area
- Sound velocity measurement: with a given thickness by a sample hardware to measure the sound velocity, which avoid the further conversion or consultation of the table
- 12 sound velocity for different material which also adjustable
Specfications:
- LCD Digital display: 4 digits
- Minimum display unit: 0.1mm
- Working frequency: 5MHz
- Measurement Range: 1.2~225.0mm (Steel)
- Minimum limit for Tubes measurement: ϕ20 x 3mm (Steel)
- Accuracy: ± (1% H + 0.1 mm) (H denotes the measured thickness)
- Sound Velocity Range: 1000~9999m/s
- Measuring Sound Velocity with a given thickness
- Measuring Range: 1000~9999m/s
- When the given thickness over 20mm, the accuracy is ±1%; when the given thickness less than 20mm, the accuracy is ±5%
- Operating Temperature: 0~40°C (32~104°F)
- Power supply: 3 x 1.5 AAA Alkaline Batteries (Included)
- Operation Current:
Normal Operation Current ≤50mA
With Backlight turn on current ≤120mA
- Stand-by Current: ≤20 µA
- Size: approx. 72 x 146 x 29mm (2.83 x 5.75 x 1.14inch)
- Weight: approx. 202g (7.12oz) (Batteries and probe included)
- Low battery indication
- Auto power off mode designed to conserve battery life
- More than 10000 times long life keys
- The unit has a special memory that retains all of its setting even when the power is off
Sound Velocities of Common Materials
|
|||
Material | Velocity (m/s) | Material | Velocity (m/s) |
Aluminum | 6320 | Acetate Resin | 2670 |
Zinc | 4170 | Phosphor Bronze | 35830 |
Silver | 3600 | Turpentine | 4430 |
Gold | 3240 | Glass | 5440 |
Tin | 3230 | Incoloy Alloy | 5720 |
Iron/Steel | 5900 | Magnesium | 6310 |
Brass | 4640 | Monel Alloy | 6020 |
Copper | 4700 | Nickel | 5630 |
SUS | 5790 | Steel 4330 (mild) | 5850 |
Acrylic Resin | 2730 | Steel 330 | 5660 |
Water (20°C) | 1480 | Titanium | 6070 |
Glycerin | 1920 | Zirconium | 4650 |
Soluble Glass | 2350 | Nylon | 2620 |
Accessories included:
- 1 x Ultrasonic Thickness Meter
- 1 x 10mm, 5MHz Transducer
- 1 x 4mm Sample Block
- 1 x 50ml Bottle of Coupling Agent
- 1 x Operating Manual
- 3 x AAA Alkaline Batteries-
- Standard Factory Package
