| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $25.68 | $25.15 | $24.37 | $23.32 | Contact US |
Digital Volume Control Board Stereo Audio Electronic Volume Control Board HiFi 12V NJM1109
Features:
- Volume Control Board: 91.44 x 68.58mm/3.6 x 2.7 inches
- Decode Board: 50.8 x38. 1 x 43.18mm/2 x 1.5 x1.7 inches
- Wide Control Range: -107.5dB to 10dB
- Accuracy: 1dB/step
- Output Noise Voltage: 15.89μV
- THD+N: 0.0327%
- SNR: 92.2dB
- Single Ended Audio Signal Input and Output
- LED Status Indicator
- Flexible Connection and Easy Installation

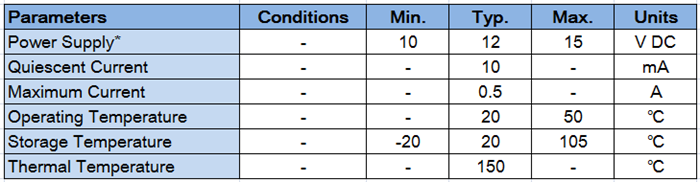

Specifications:
- Typical parameters @+25℃, powered by 12V DC.

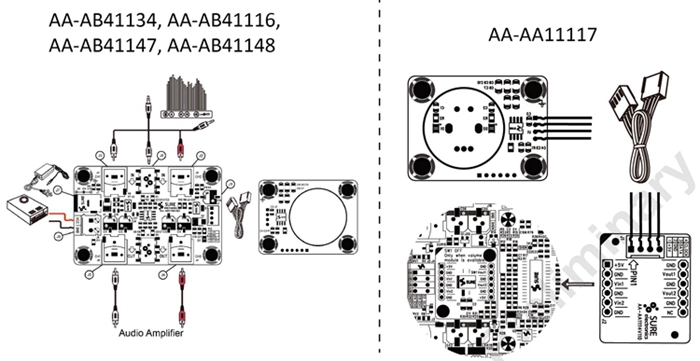

Connection:

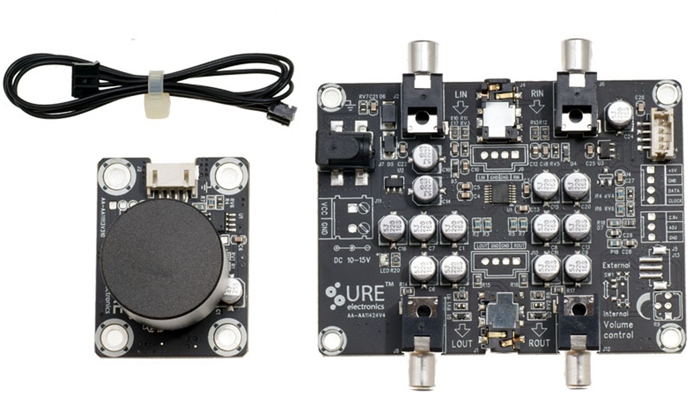

Package Included:
- 1 x Digital Volume Control Board
- 1 x Decode Board
- 1 x Connector Cable
