DING SHINE M-98E 160Wx2 Hifi Bluetooth Amplifier TDA7498E BT4.0 Power Amp for Floorstanding Speakers

DING SHINE M-98E 160Wx2 Hifi Bluetooth Amplifier TDA7498E BT4.0 Power Amp for Floorstanding Speakers

Features:
1. New original TDA7498E (for ST) digital power amp chip of high power and high fidelity
2. Output filter adopts LC filter capacitors composed of red ring inductors and film capacitors for Philips and Siemens
3. Hifi 7400uf capacitor for ELNA used for power coupling to ensure energy supply under large dynamics and powerful bass
4. Audio input coupling uses a large number of audiophile capacitors for ELNA, WIMA, etc.
4. Complete input interface: Various input audio sources include USB (U disk), SD card, coaxial input, optical input, Bluetooth input (version 4.0), RCA analog input (when Bluetooth and analog RCA audio signals are connected at the same time, Bluetooth playing is of top priority), etc. Its output interfaces can be connected to various passive speakers, fixed resistance speakers, etc.
5. Enlarged aluminum heat sink ensures that the machine can be used for a long time.
6. Using Bluetooth 4.0 transmission module. It can be connected to audio source devices such as mobile phones to realize wireless connection. (At present, the theoretical distance of Bluetooth 4.0 transmission is 10m/32.8ft; the distance for lossless sound quality is about 5-6m/16.4-19.7ft; when it exceeds 9m/29.5ft, its sound is sometimes intermittent, which is not due to the malfunction of the machine. It can not be used through walls, because there are also intermittent situations when using it between two rooms.)

Specifications:
- Output power: 160W+160W/4Ω; 80W+80W/8Ω
- Input voltage: 12~32V (maximum withstand voltage 36V)
- Input power current: more than 4A is recommended
- Input signal: U disk/SD card/Bluetooth 4.0/optical/coaxial/analog AUX RCA (gold-plated) stereo input
- Bluetooth device: XZD-Audio
- Impedance: 4Ω, 6Ω, and 8Ω
- Chip efficiency: 85%
- Signal-to-noise ratio: 86DB
- Frequency response: 20HZ-20KHZ
- U disk support capacity: 32GB (songs are stored under the directory of the U disk)
- SD card support capacity: 32GB
- Music format support: MP3, WMA, APE, FLAC, and WAV
- Supported file system: FAT16, FAT32, and EXFAT/FAT64
- Chassis material: all aluminum
- Chassis process: drawing, oxidation coloring, and CNC processing (not easy to fade)
- Screen printing process: laser engraving
- Product Dimensions: 150 x 117 x 35mm/5.9 x 4.6 x 1.4" (LxWxH)
- Weight: 558.5G/1.2LB

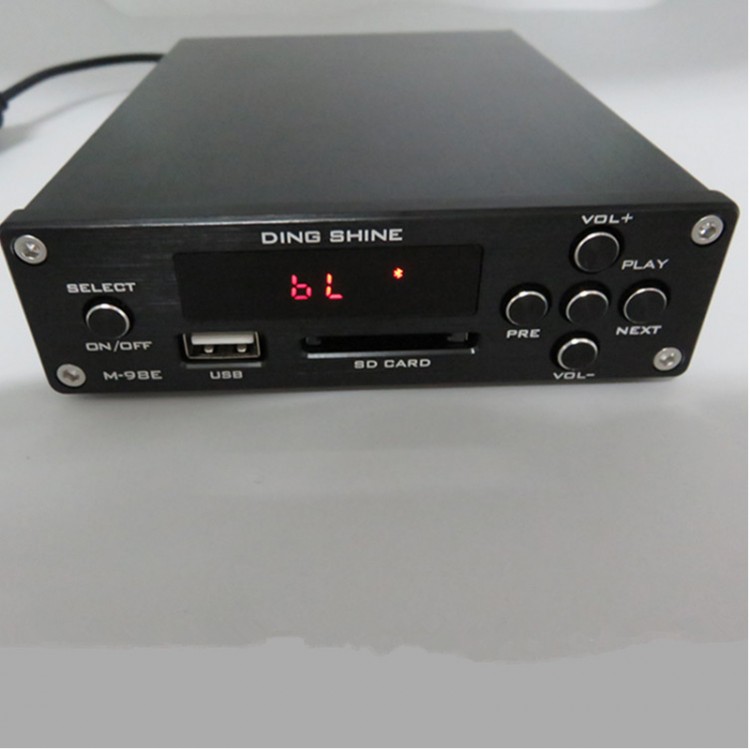

Functions:
- 4.0 Bluetooth input (XZD AUDIO)
- SELECT ON/OFF : Long press to turn it on/off; short press to select input sources
- USB: U disk input socket
- SD CARD: SD card input jack
- PRE: Previous song
- NEXT: next song
- PLAY: play/pause
- VOL+: turn up
- VOL-: turn down
- RF: Bluetooth antenna interface
- OPT: Optical input interface
- COAX: coaxial input interface
- ANALOG INPUT: AUX analog signal input interface
- ROUT: power output of the right channel; connected to speakers
- LOUT: power output of the left channel; connected to speakers
- POWER: DC socket; inner positive and outer negative (5.5x2.5)

Package Included:
- 1 x Power Amplifier
- 1 x Power Cord

Note:
- It should be used with a DC power adapter. Only in this way can it be connected to a household AC 220V power supply.
- If you do not have a DC power adapter, it is recommended to purchase our power amp with an adapter. Thank you!
