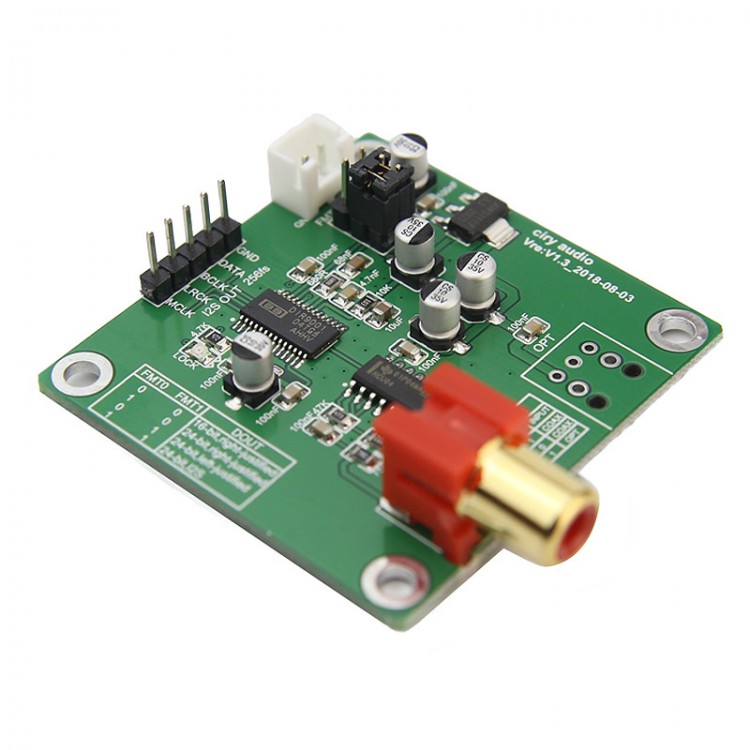

DIR9001 Coaxial Receiver Audio Receiver Module SPDIF To I2S 24Bit 96KHz Without Optic Fiber Port
Optional Versions:
- Without optic fiber port
- With optic fiber port
Module Introduction:
The new version removes manual switch, and the input is changed to automatic switch.
When COAX is input alone, it is in coaxial input mode.
When OPT is input alone, it is in optical fiber input mode (optional optic fiber port).
When OPT and COAX are input at the same time, it is in coaxial input mode, and the optical fiber will be automatically disconnected.
To use OPT input, you need to unplug COAX.
Specifications:
- Sampling rate: 24Bit, 96kHz
- System clock frequency: 256fs
- Power supply voltage: 5V
- Input interface: coaxial RCA port, optional optical fiber port
- Output interface: standard IIS, left-justified, right-justified, the format can be changed by yourself
Format Setting:
FMT1 FMT0 DOUT
0 0 16-bit, MSB-first, right-justified
0 1 24-bit, MSB-first, right-justified
1 0 24-bit, MSB-first, left-justified
1 1 24-bit, MSB-first, IIS
Package Included:
- 1 x Board
