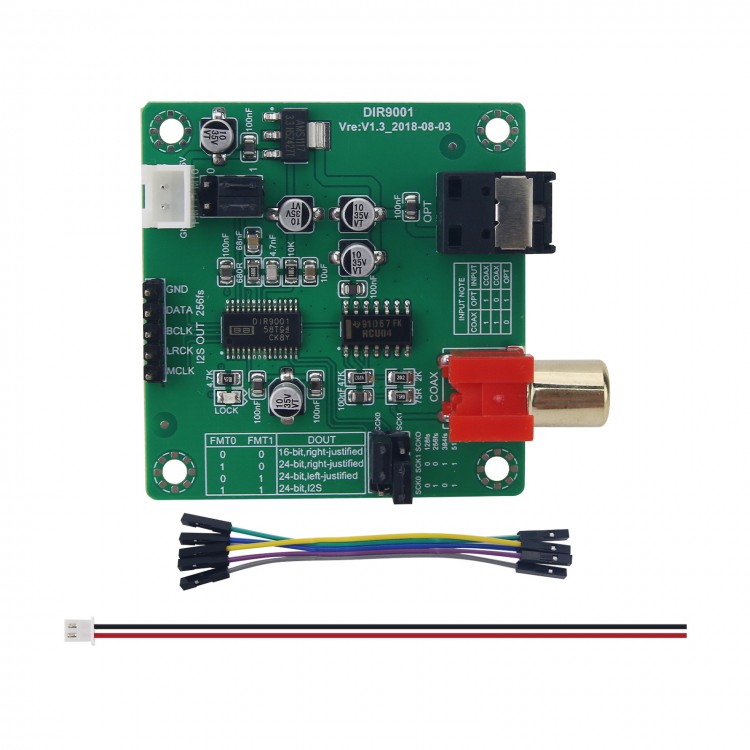

DIR9001 Coaxial Receiver Optical Receiver Module SPDIF To I2S 24Bit 96KHz With Optic Fiber Port

DIR9001 Coaxial Receiver Optical Receiver Module SPDIF To I2S 24Bit 96KHz With Optic Fiber Port

Optional Versions:
- Without optic fiber port
- With optic fiber port

Module Introduction:
The new version removes manual switch, and the input is changed to automatic switch.

When COAX is input alone, it is in coaxial input mode.

When OPT is input alone, it is in optical fiber input mode (optional optic fiber port).

When OPT and COAX are input at the same time, it is in coaxial input mode, and the optical fiber will be automatically disconnected.

To use OPT input, you need to unplug COAX.

Specifications:
- Sampling rate: 24Bit, 96kHz
- System clock frequency: 256fs
- Power supply voltage: 5V
- Input interface: coaxial RCA port, optional optical fiber port
- Output interface: standard IIS, left-justified, right-justified, the format can be changed by yourself

Format Setting:
FMT1      FMT0      DOUT
0              0            16-bit, MSB-first, right-justified
0              1            24-bit, MSB-first, right-justified
1              0            24-bit, MSB-first, left-justified
1              1           24-bit, MSB-first, IIS

Package Included:
- 1 x Board
