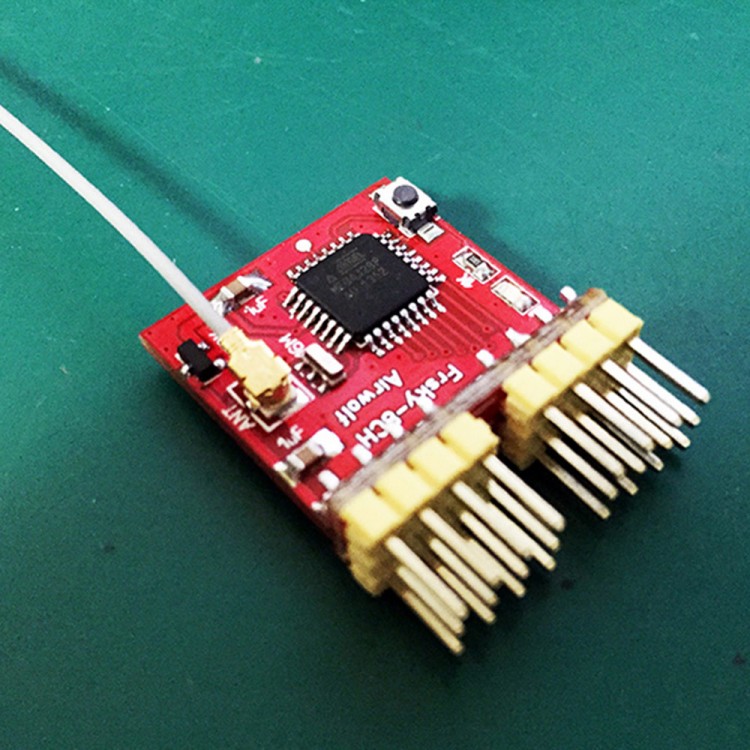

DIY FRSKY 8CH FPV Receiver w/PPM Output Compatible w/X9D(PLUS) DJT DFT DHT for Drone Quadcopter

DIY FRSKY 8CH FPV Receiver w/PPM Output Compatible w/X9D(PLUS) DJT DFT DHT for Drone Quadcopter

Specification:
- Compatible with RSKY series remote controller and UHF
- 8CH receiver
- Weight: About 5g
- For fixed wing, aircraft, FPV drone etc.
- Compatible with FRSKY X9D remote controller (D8 mode), XJT(D8 mode), DJT,DFT, DHT,etc.

Frequency method:
- X9D remote controller,D8 mode , channel 1-8, 8 receiver channel in frequency jumper cap and then power on. Led lights, remote controller to select the bind, and receiver led will flash slowly that means the completion of the frequency, remote control exit of frequency mode, and re-power to the receiver.

- DJT, DFT tuner hold the tuner button to open the remote control power. At this time, the tuner into on frequency mode, 8 receiver channel in frequency jumper cap and then power on, to complete frequency when the LED flashes slowly. At this time, restart  receiver.

- XJT tuner dip switch chooses D8 mode, then the frequency is as above mentioned.

PPM output mode:
Use frequency jumper cap, lateral short joint 1-3 signal, channel 4 will be ppm output can be used to connect the flight control, or wireless analog, or wireless coach (note, here the 1-3 just 1 and 3, don't put 2 short take into account and to skip 2)

Out of control protection:
Since only to provide the firmware, so currently only supports third channel out of control protection, can not own definition, no matter any way to control the various channels, please keep the throttle channel in the third channel.

Package List:
- 1 x 8CH Receiver
