DJI E305 Driving Force Combo 2312E Brushless Motor+20A ESC+9450 Prop for Hexacopter FPV Photography
Specifications:
- Battery: 4S Lipo
- Max torque: 850g/ axis
- Recommending take off weight: 350---400g/ axis
- Operaitng temp: -10----40degree
ESC:
- Max permitting voltage: 17.4V
- Max permitting current (continuous): 20A
- Max permitting peak current (3 secs): 30A
- PWM input signal level: 3.3V/ 5V compatible
- Compatible signal frequency: 30-450Hz
- Battery: 3S--4S Lipo
- Weight (no cable): 12.5g
- Weight (with cable): 27g
Motor:
- Stator size: 23*12mm
- KV value: 800rpm/V
- Weight: 56g
Propeller:
- Dia: 24*12.7cm
- Weight: 13g

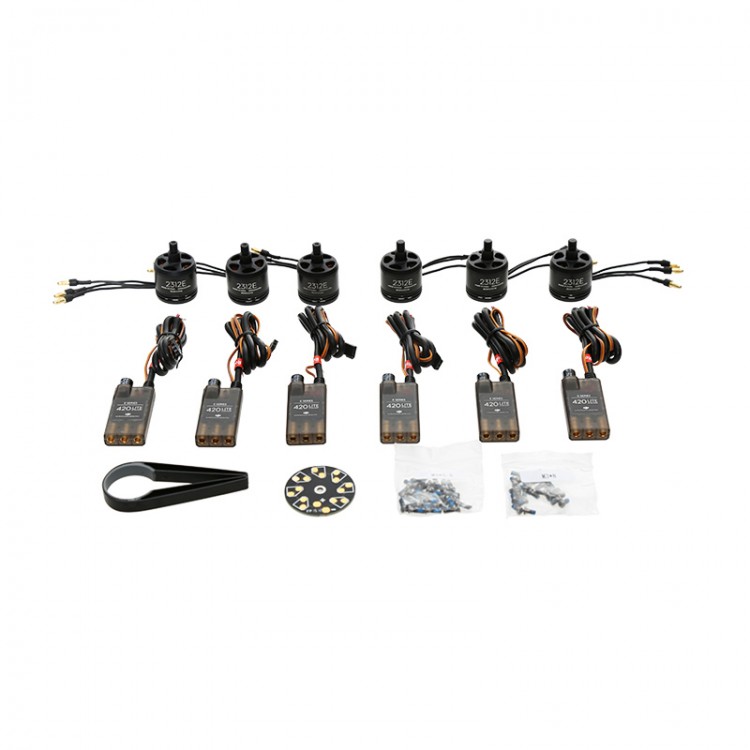

Package includes:
- 2312E motor x 3 pairs
- 9450 plastic propeller x 4 pairs
- 420LITE ESC x 6
