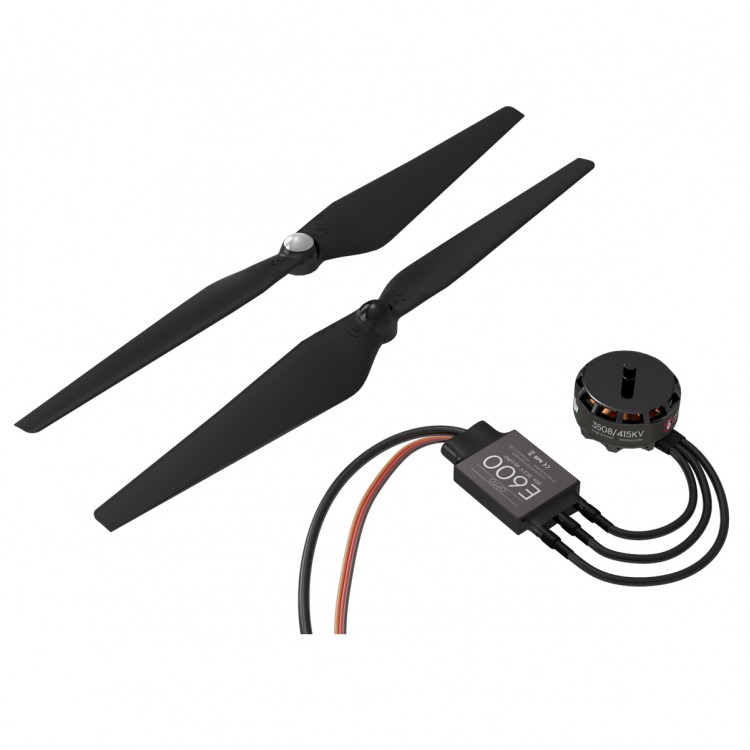

DJI E600 6pcs Motor + 6pcs ESC & Propeller Upgrade Pack for DJI & Large Hexacopter High Efficiency
this listing is for DJI hexacopter and other large hexacopter,high efficiency power make sure long flying time
Package list:
- 6 x DJI 415kv motor
- 6 x E600 ESC 10A opto
- 5 pair x prop(CW +CCW)
- 1 x parts pack
Specification:
E300 E600
| RECOMMENDED LOAD | 300 g/axis | 600 g/axis |
|---|---|---|
| MAXIMUM THRUST | 600 g/axis | 1600 g/axis |
| WORKING TEMPERATURE | -5 °C ~ 40 °C | -5 °C ~ 40 °C |
| RECOMMENDED BATTERY | 3S LiPo | 6S LiPo |
| UNITS PER PACKAGE | Quad or Hexa | Quad or Hexa |
| ESC | ||
| CURRENT | 15 A OPTO | 20 A OPTO |
| SIGNAL FREQUENCY | 30 Hz~450 Hz | 30 Hz~450 Hz |
| VOLTAGE | 11.1 V~14.8 V | 14.8 V~25.2 V |
| BATTERY | 3S~4S LiPo | 4S~6S LiPo |
| Motor | ||
| STATOR SIZE | 22×12 mm | 35×8 mm |
| KV | 920 rpm/V | 415 rpm/V |
| WEIGHT | 50 g | 90 g |
| Rotor | ||
| DIAMETER /THREAD PITCH | 24×11 cm 9.4×4.3 inch | 33×11 cm 12×4.2 inch |
