DJI IOSD Mark II OSD + 2.4G BT Datalink Bluetooth & iPad Ground Station for A2 WooKong-M Flight Control

DJI IOSD Mark II OSD + 2.4G BT Datalink Bluetooth & iPad Ground Station for A2 WooKong-M Flight Control

DJI IOSD Mark II OSD Features:
- Highly integrated, beautiful and practical, compact size
- Support DJI professional autopilot system
- Real-time accurate flight data & video signal superposition
- Support double video source input, switchable during flight
- Remote video link channels in real-time switch
- Flight Log Function
- Free Upgradable Online
- Built-in BEC module, support 3s-6s LiPo
- User-friendly Assistant Software

DJI IOSD Mark II OSD Specification:
- Video Input Model: PAL/NTSC
- Video Output Model: PAL/NTSC
- Temperature: -20℃~60℃
- Size: 52mm X 41mm X 11mm
- Weight: 56g
- Hardware :Voltage: 3S~6S
- Current(Typical Value): 60mA@25.2V;103mA@12.6V
- Rated Power: 1.25W
- Controller Supported: A2/WKM/Naza-M/Naza-M V2
- Software Supported
- iOSD Information Transmission
- Video Transmission, Two Video Signal Channels Input & Switch
- Channel Switch Supported for the Wireless Video Transmitter Module specified by DJI
- DJI Z15 Supported

DJI 2.4G BT Datalink Description:
- Provide communications between the Ground end and the Air end using the DJI bidirectional data communication modules; the iPAD Ground Station communicates with the Ground end using the BTU module;
- Use the 2.4G Bluetooth Datalink Assistant Software to upgrade the firmware of the 2.4G Bluetooth Datalink and the BTU module;
- Provide bidirectional communications with large dataflow within the specified distance of the remote control.

Important: The map of Mainland China downloaded from Mainland China IP addresses has differences with the actual geographic environments. If users download the map of Mainland China from foreign IP addresses, which will be more accurate.

DJI 2.4G BT Datalink features:
- Friendly interface design;
- Joystick control on touch screen;
- Single waypoint function, click desired point and go;
- Waypoints function, edit a routine and go;
- Flight route template;
- Editable Home point & auto Go Home supported;
- One key takeoff & landing;
- Flight simulator supported;
- Customized joystick mode supported;
- Accurate flight time monitoring;
- Three map orientations setting;
- Voice guidance function;
- Real-time alarming function;
- Routes saving and reloading supported;
- Chinese and English UI supported;
- Cloud Storage supported;

Flight control systems supported:
- 2.4G Bluetooth Datalink: ACE ONE, WKM, NAZA-M, NAZA-M V2;
- iPAD Ground Station: WKM, NAZA-M, NAZA-M V2;

DJI 2.4G BT Datalink :
- All the firmware of the flight control systems should be upgraded to the latest version.
- The firmware of NAZA-M and NAZA-M V2 should be upgraded to version 4.00, which is coming soon.

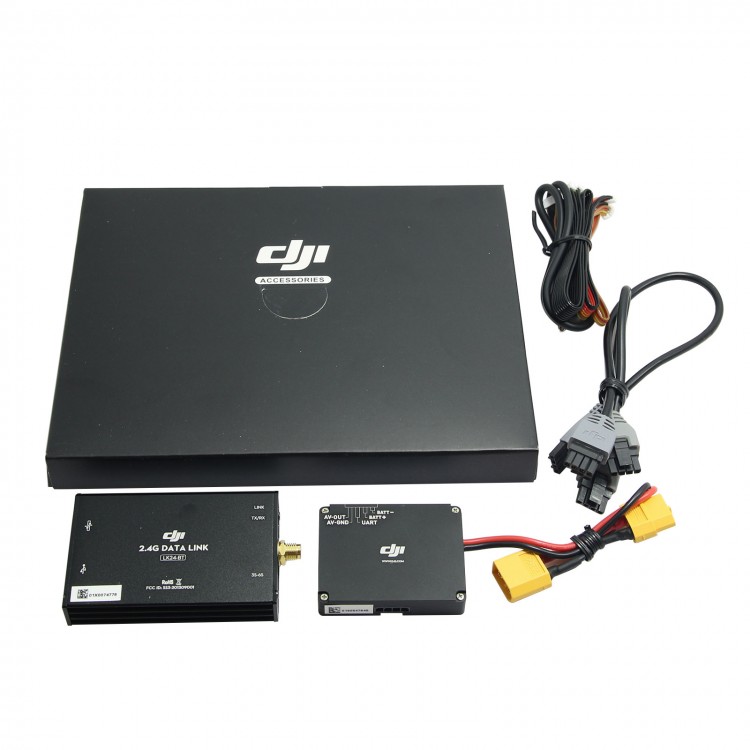

Package included:
- 1 x 2.4G Ground end
- 1 x 2.4G Air end
- 1 x BTU module
- 1 x CAN-Bus cable
- 1 x USB cable
- 1 x DV power cable
- 1 x CD
- 1 x DJI IOSD Mark II OSD
- Cables
