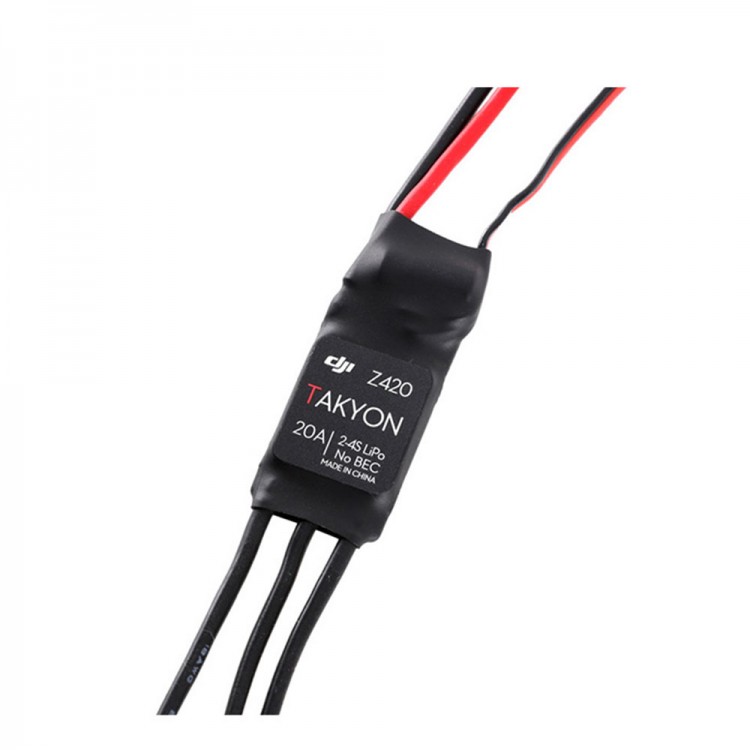

DJI Takyon Z420 ESC Electronic Speed Controller for FPV Aircraft RC Drone Multicopter
Parameters:
- Model: DJI Takyon Z420 ESC / Electronic Speed Controller
- Maximum voltage: 17.4V
- Support battery： 2-4S Lipo
- Maximum current: 20A
- Maximum current (peak) <3s: 30A
- Motor RPM: 280,000rpm
- Maximum comptible with throttle signal frequency: 500Hz
- Mximum compatible with Oneshot signal frequency: 600Hz
- weight: 13.2g
- Operating temperature: -10~40 deg C
- Size: 42*18*9mm
- Compatible with motor: 1804/1806/2204/2208/2212/2216/2808/3506,etc.
- Support parameters adjusting by PC ,need to buy updater.
Package List:
- 1 x DJI Takyon Z318 ESC
