DJI WooKong-M Flight Controller w/IMU GPS + iOSD Mark II+DJI 2.4GHz Datalink Bluetooth & iPad Ground Station Super Combo

DJI WooKong-M Flight Controller w/IMU GPS + iOSD Mark II+DJI 2.4GHz Datalink Bluetooth & iPad Ground Station Super Combo

WooKong-M Professional Flight Controller + IMU + GPS & Compass Features:
- Advanced Stabilization Controller for Multi-Rotor Platforms (S900/S1000+)
- Supports 9 Different Multi-Rotor Configurations and Features a Customized Motor Mixer
- Precise GPS for Position and Altitude Stabilization
- Multiple Flight Control Modes and Intelligent Switching
- Intelligent Orientation Control (IOC) and Point of Interest (POI)
- Supports General, PPM, and S-Bus Receivers
- Supports Ground Control Station (GCS) for iPad
- Enhanced Failsafe Features, Including Auto Return-to-Home
- Single Motor Failure Protection
- Two Levels of Low Voltage Protection and Auto Return-to-Home
- Built-In Motor Arm/Disarm Mode
- Compatible with DJI Video Downlink, iOSD, Ground Station, Zenmuse Gimbals, and Future Products
- New Assistant Software for Smartphone

WooKong-M Professional Flight Controller + IMU + GPS & Compass Specification:
- Support 4 inch/6 inch/8 inch propeller
- Support ESC: 400Hz frequency
- Recommended remote control: PCM or 2.4Ghz, at least 5 channels, and support all channels out-of-control protection
- Recommended power supply: DC4.5-12V
- Power consumption: Max. 5W(0.9A@5.8V,0.5A@7.4V,0.4A@8V)
- Operating temperature: -5 deg c~+60 deg C
- Software system requirements: Windows XP / Windows Vista / Windows 7 / Windows 8

Flight characteristics:
- Hovering accuracy:Vertical direction: +-0.5m;Horizontal direction: + -2m
- Wind resistant ability: < 8m/s (17.7mph)
- Vertical velocity: 6m/s

Hardware specification:
- Total weight: < = 118g (mounted on the aircraft parts)
- Main controller Size: X 39.6mm x 15.8mm 51mm
-  IMU Size: 40mm x 31mm x 26mm
- GPS and compass module: 9mm X 50mm(diameter)
- LED indicator light module: 25mm x 25mm x 7mm

Built in function:
- Three flight modes
- Out of control hover
- The built-in Yuntai augmentation
- Low voltage protection
- Automatic return & automatic landing

DJI IOSD Mark II OSD Features:
- Highly integrated, beautiful and practical, compact size
- Support DJI professional autopilot system
- Real-time accurate flight data & video signal superposition
- Support double video source input, switchable during flight
- Remote video link channels in real-time switch
- Flight Log Function
- Free Upgradable Online
- Built-in BEC module, support 3s-6s LiPo
- User-friendly Assistant Software

DJI IOSD Mark II OSD Specification:
- Video Input Model: PAL/NTSC
- Video Output Model: PAL/NTSC
- Temperature: -20℃~60℃
- Size: 52mm X 41mm X 11mm
- Weight: 56g
- Hardware :Voltage: 3S~6S
- Current(Typical Value): 60mA@25.2V;103mA@12.6V
- Rated Power: 1.25W
- Controller Supported: A2/WKM/Naza-M/Naza-M V2
- Software Supported
- iOSD Information Transmission
- Video Transmission, Two Video Signal Channels Input & Switch
- Channel Switch Supported for the Wireless Video Transmitter Module specified by DJI
- DJI Z15 Supported

DJI 2.4G BT Datalink Description:
- Provide communications between the Ground end and the Air end using the DJI bidirectional data communication modules; the iPAD Ground Station communicates with the Ground end using the BTU module;
- Use the 2.4G Bluetooth Datalink Assistant Software to upgrade the firmware of the 2.4G Bluetooth Datalink and the BTU module;
- Provide bidirectional communications with large dataflow within the specified distance of the remote control.

Important: The map of Mainland China downloaded from Mainland China IP addresses has differences with the actual geographic environments. If users download the map of Mainland China from foreign IP addresses, which will be more accurate.

DJI 2.4G BT Datalink features:
- Friendly interface design;
- Joystick control on touch screen;
- Single waypoint function, click desired point and go;
- Waypoints function, edit a routine and go;
- Flight route template;
- Editable Home point & auto Go Home supported;
- One key takeoff & landing;
- Flight simulator supported;
- Customized joystick mode supported;
- Accurate flight time monitoring;
- Three map orientations setting;
- Voice guidance function;
- Real-time alarming function;
- Routes saving and reloading supported;
- Chinese and English UI supported;
- Cloud Storage supported;
 Flight control systems supported:
- 2.4G Bluetooth Datalink: ACE ONE, WKM, NAZA-M, NAZA-M V2;
- iPAD Ground Station: WKM, NAZA-M, NAZA-M V2;

DJI 2.4G BT Datalink :
- All the firmware of the flight control systems should be upgraded to the latest version.
- The firmware of NAZA-M and NAZA-M V2 should be upgraded to version 4.00, which is coming soon.

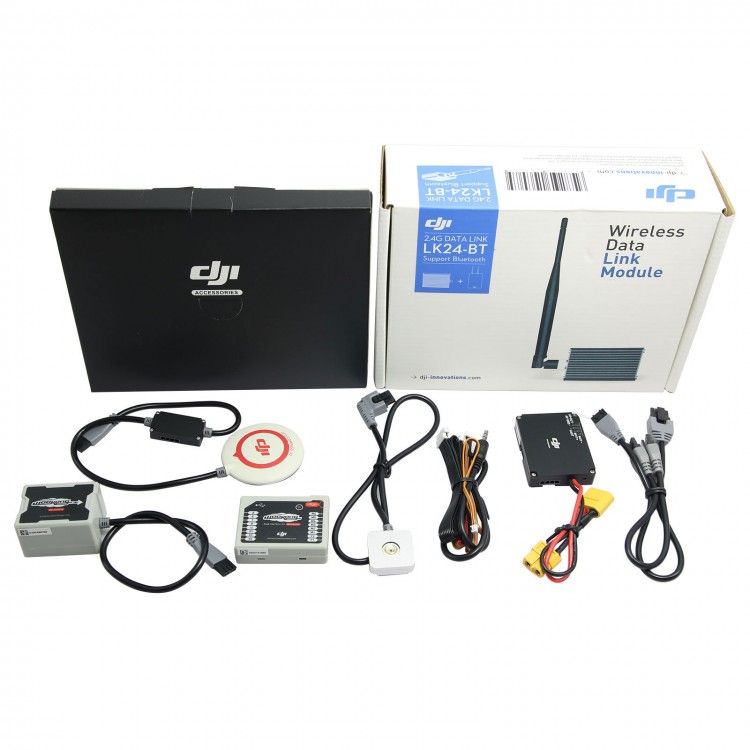

Package included:
- 1 x Flight Control
- 1 x IMU
- 1 x GPS
- 1 x 2.4G Ground end
- 1 x 2.4G Air end
- 1 x BTU module
- 1 x CAN-Bus cable
- 1 x USB cable
- 1 x DV power cable
- 1 x CD
- 1 x DJI IOSD Mark II OSD
- Cables
