Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $165.21 | $161.84 | $156.78 | $150.04 | Contact US |
DKGP10 3-54MHz Amateur Radio End-Fed Telescopic Antenna Shortwave Antenna for Urban Balcony & Window
Video:
https://b23.tv/WmARCm
Latest Version:
Compared with the previous generation, its volume has been reduced. Some rarely used circuits have been removed, and its antenna tuner is much smaller and its function remains unchanged.
Specifications:
- Transmitting frequency: 3.5Mhz-54Mhz amateur section (and non-amateur section)
- Power: CW FM 100W; SSB 200W
- Standing wave: less than 1.5 (refer to the adjustment method)
- Receiving frequency: 0.5-500Mhz
- Length of separated parts:
* Extension rod 58 cm/22.8 inch; rod body after antenna being retracted: 63 cm/24.8 inch (with error)
* Effective antenna element lengthening: 560cm/18.4ft
* Antenna stretched length: 650cm/21.3ft
- Net weight: 2.3KG/5.1LB
Features:
- DKGP10 3.5-54Mhz 10-band balcony antenna
- It is suitable for novices because it is easy to use and complicated adjustments are not required

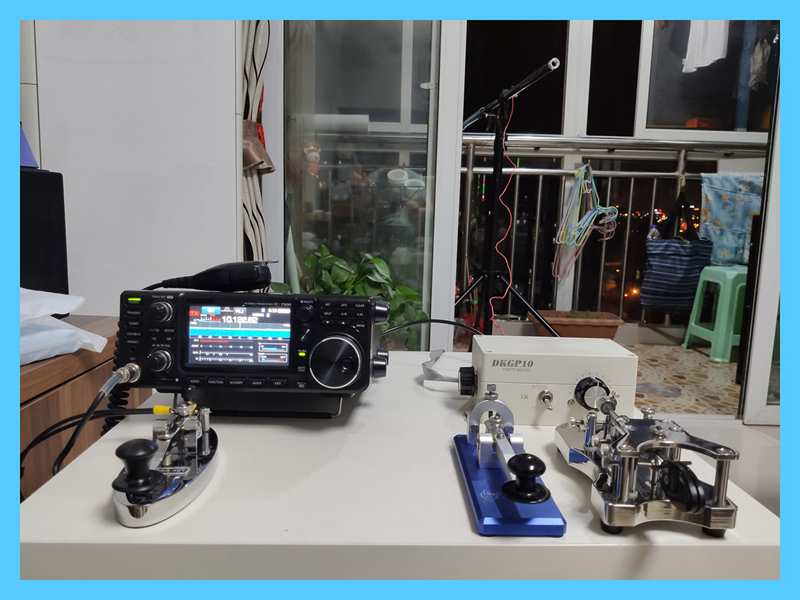

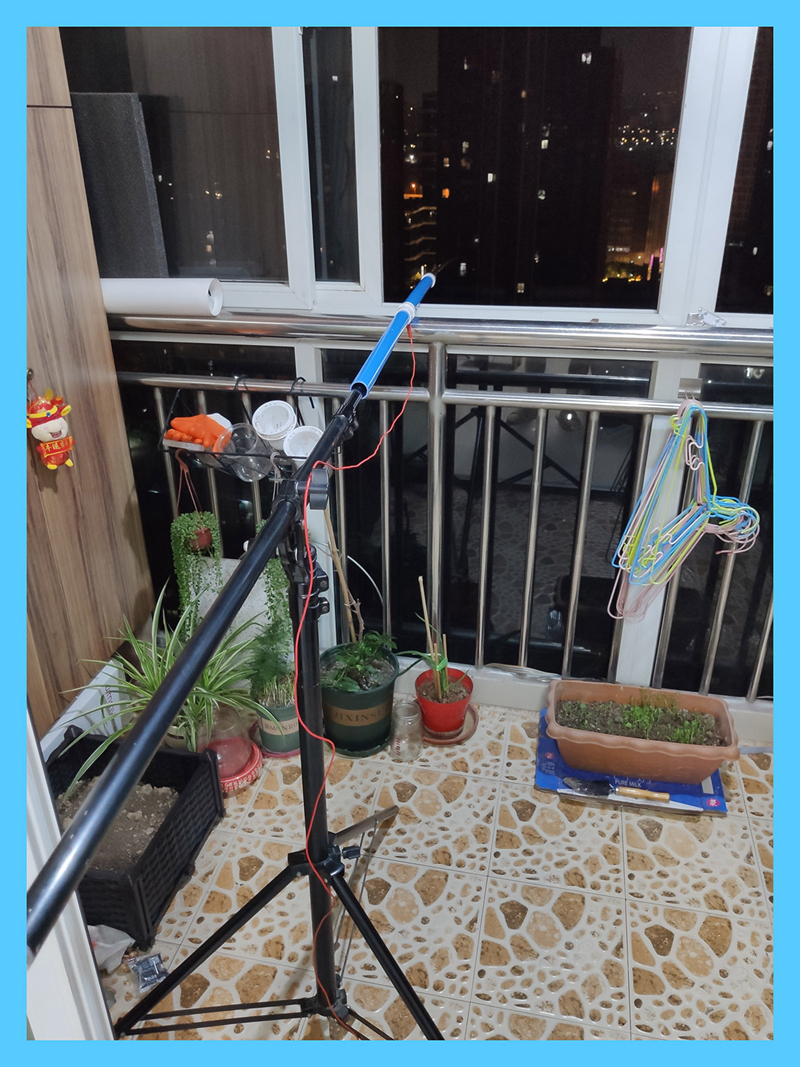

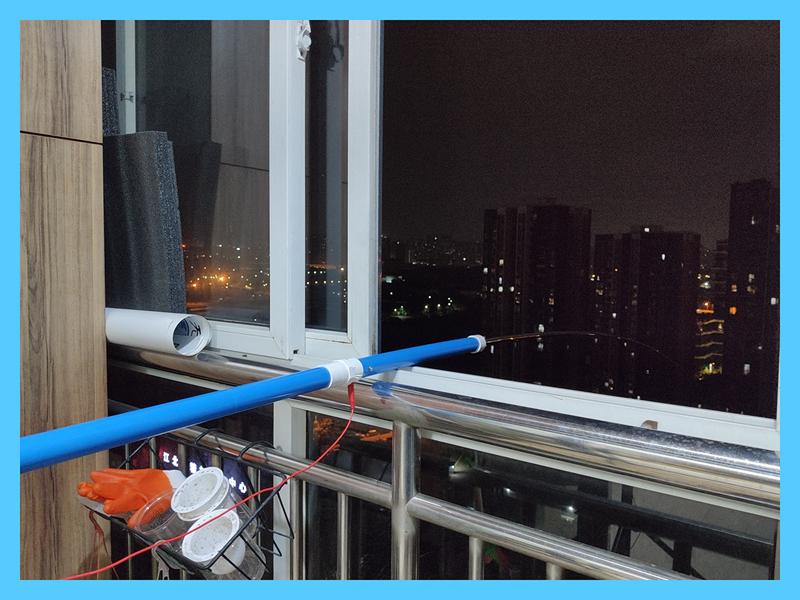

- The shortwave antenna is suitable for urban balcony and window erection. No need to drop the wire downstairs, only move 6m/19.7ft of the antenna out of your balcony
Frequency Bands for Balcony Use:
* 3.5-3.9Mhz, 80m/262.5ft (antenna is too short and not efficient)
* 5.3305-5.3665Mhz, 60m/196.9ft
* 7-7.100Mhz, 40m/131.2ft
* 10.100-10168Mhz, 30m/98.4ft
* 14-14.350Mhz, 20m/65.6ft
* 18.068-18.168Mhz, 17m/55.8ft
* 21-21.450Mhz, 15m/49.2ft
* 24.890-24.990Mhz, 12m/39.4ft
* 28-29.700Mhz, 10m/32.8ft
* 51-53Mhz, 6m/19.7ft
Attention:
- The above bands can be realized by putting up the antenna on the balcony or in the field.
- It supports full-band receiving and can be used for SDR receivers. VHF and UHF can also be received.

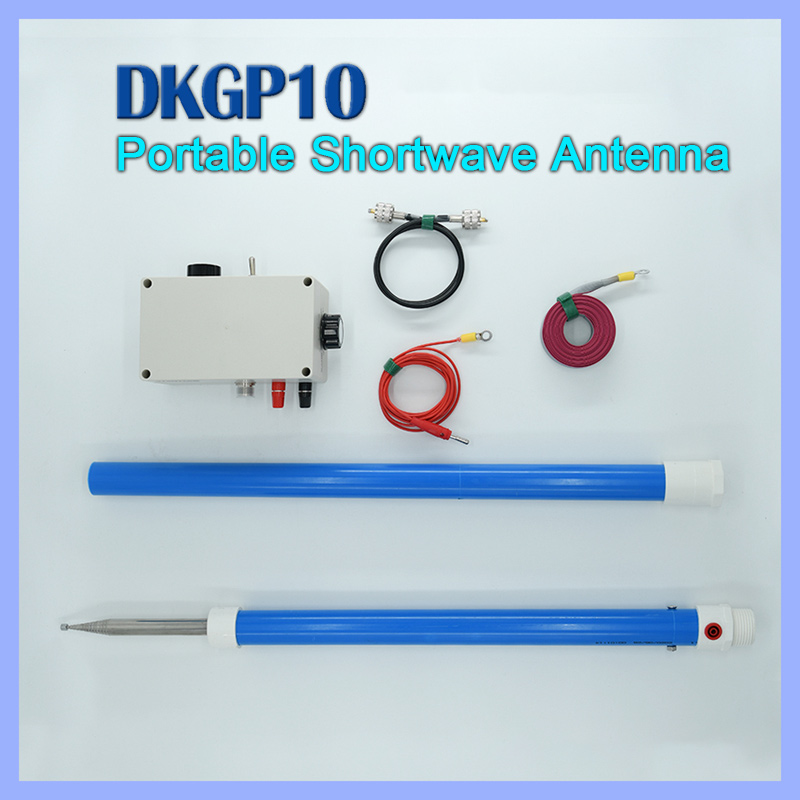

Package Included:
- 1 x Telescoping Antenna (Two Sections)

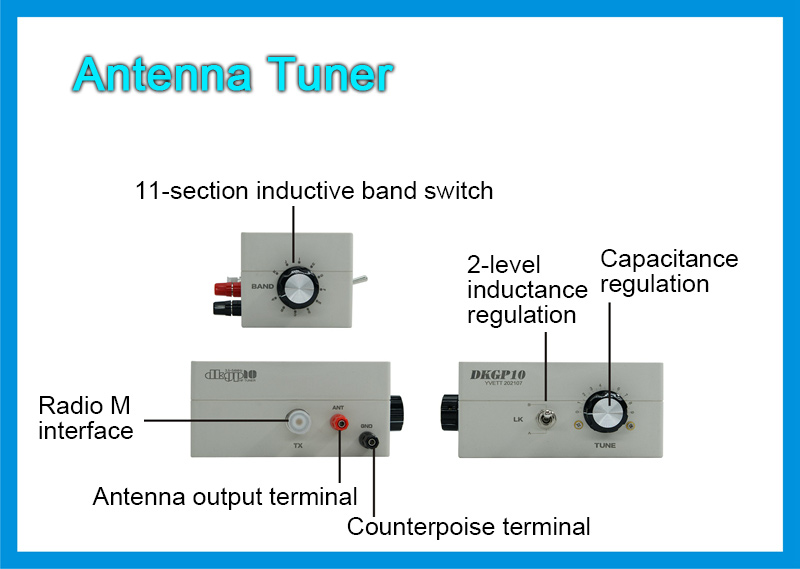

- 1 x End-Fed Antenna Tuner Box
- 1 x 3.5M/11.5FT FFC Cable Counterpoise
- 1 x 3M/9.8FT End-Fed Box Cable
- 1 x 0.5M/1.6FT 50-3 Feeder Line
- 1 x User Manual
Note:
- It is hand-made and there are scratches on PVC pipes. Please make sure that you don't mind before purchasing. Thank you!
- Other items pictured are not included, for demonstration purposes only.
