DKP6012 CNC Regulated Power Supply Step Down DC Power Supply Voltage Current Capacity Meter w/ Fan

DKP6012 CNC Regulated Power Supply Step Down DC Power Supply Voltage Current Capacity Meter w/ Fan

Description:

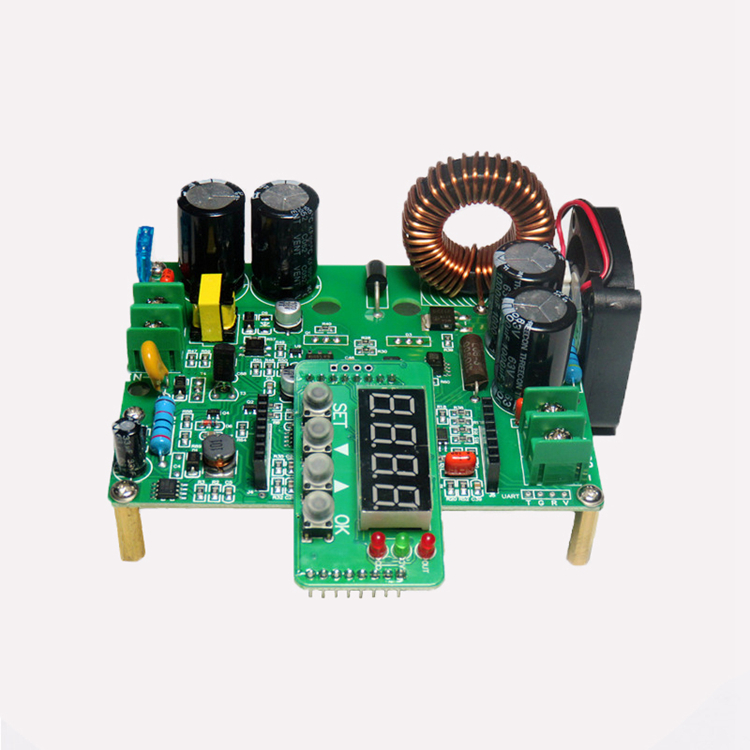

As a full-digital display-programmable buck module (DC-DC), DKP6012 boasts small size, high power, high efficiency, and stable operation. It uses advanced microprocessor control. Voltage and current can be accurately adjusted by pressing buttons. It supports constant voltage and constant current output. By reserved ports, it can communicate with the single chip or computer, making the secondary development easier.

It is equipped with four-digit LED digital tube that displays output voltage and output current in real time. At the same time, the number-controlled buck module with a working status indicator, you can view the working status in real time. Automatic output is enabled after it is powered on. This feature can be turned on or off as needed. In addition, the unit also has a button lock function. The lockable button prevents users from incorrectly adjusting the output voltage and output current.

Features:
- Adjustable CNC regulated power supply
- With a 4-digit display screen
- Can display real-time output voltage, current, capacity, and time
- Change the display modes manually and automatically
- Set to output automatically when it is powered on
- Button lock function to avoid wrong adjustment of output voltage and current
- Constant voltage and constant current output
- Using advanced microprocessor
- With buttons to adjust output voltage and current precisely
- High quality power devices. CV and CC loops composed of peripheral precision op amps greatly improve module performance
- Two 0.8 mm double-wire winding large current inductors; inputs adopt two 470uF/100V electrolytic capacitors. Output uses two 1000uF/63V electrolytic capacitors
- Full digital display makes it easy to use
- With oscilloscope function, a dynamic changed voltage current curve can be displayed.
- The module has working status indicators - OUT (OUTPUT) and CV (Constant Current) indicators, which can view the working status in real time
- Power surface interface: digital tube display and patch process make the product more beautiful

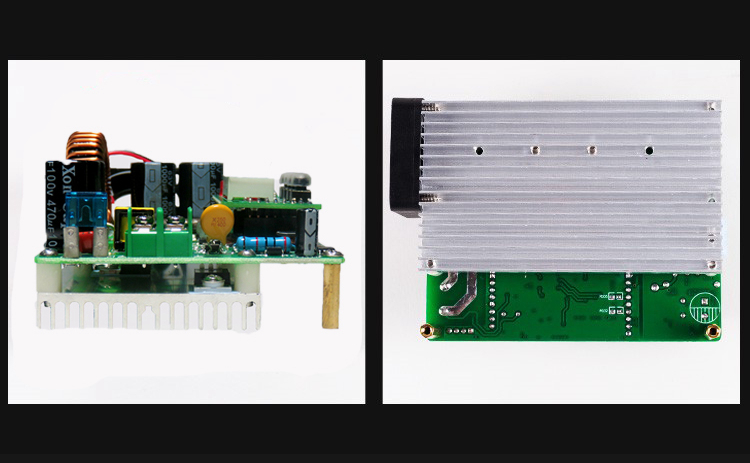

- Heat Sink and cooling fan for better heat dissipation performance
- With host computer software to monitor

Specifications:
- Input voltage: 10V~65V
- Adjustable output voltage: 0~60V
- Adjustable output current: 0~12A
- Output power: 0~720W
- Output voltage setting resolution: 10mV
- Output current setting resolution: 10mA
- Power effect: CV less than 0.5% + 10mV; CC less than 1% + 10mA
- Load effect: CV less than 0.5% + 10mV; CC less than 1% + 10mA
- Output ripple: < 50MVPP (input 54V, output 12V, current 5A)
- 100Hz wave transmission ratio: <1/10000
- Typical efficiency: 94% (input 54V, output 30V, current 5A)
- Voltage and current display accuracy: 10mV, 10mA
- Voltage display error: ± 1% + 20mV
- Current display error: ± 2% + 20mA
- Response time: <50ms
- Storage: M0 ~ M9, a total of 10 sets of parametric storage
- Way of heat dissipation: heat sink and fan
- Operating environment: 0~40℃
- Storage environment: -20 to 70℃
- Use environment: indoor use; maximum humidity 80%

Package Included:
- 1 x DC Buck Converter Module
