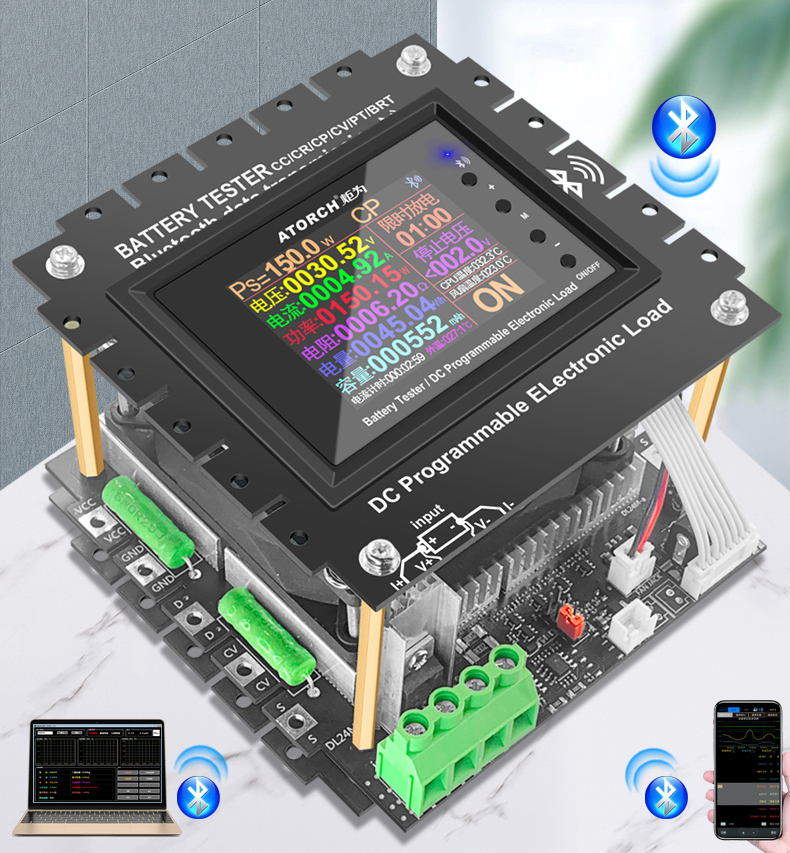

DL24MP-150 200V 150W DC Programmable Electronic Load Battery Tester Bluetooth Data Transmission

DL24MP-150 200V 150W DC Programmable Electronic Load Battery Tester Bluetooth Data Transmission

Features:
- Test battery internal resistance capacity; electronic load with a color display
- High-power load is used for discharge and aging tests. Applicable to all USB chargers, power banks, and batteries. To test parameters and operations such as voltage, current, power, capacity, discharge, resistance, time-limited discharge settings, and stop voltage settings for various power adapters and other power supply equipment
- Compatible with three online operating systems APP (for Android, Apple, PC computer system)

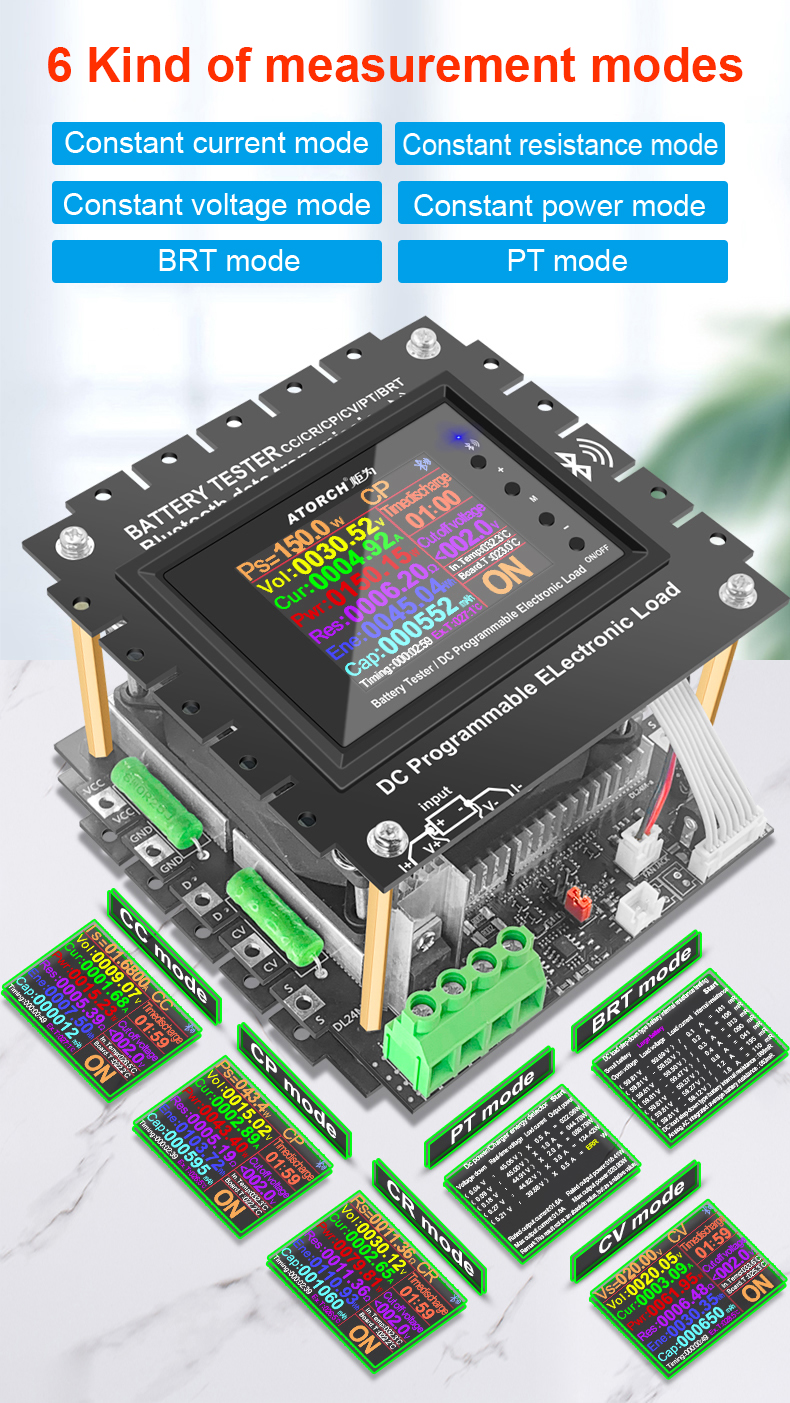

- Six powerful functions (constant current, constant power, constant resistance, constant voltage, intelligent one-key measurement of internal resistance, and intelligent one-key power supply test)
- Automatic detection of battery internal resistance, current and power of DC power supply and charger

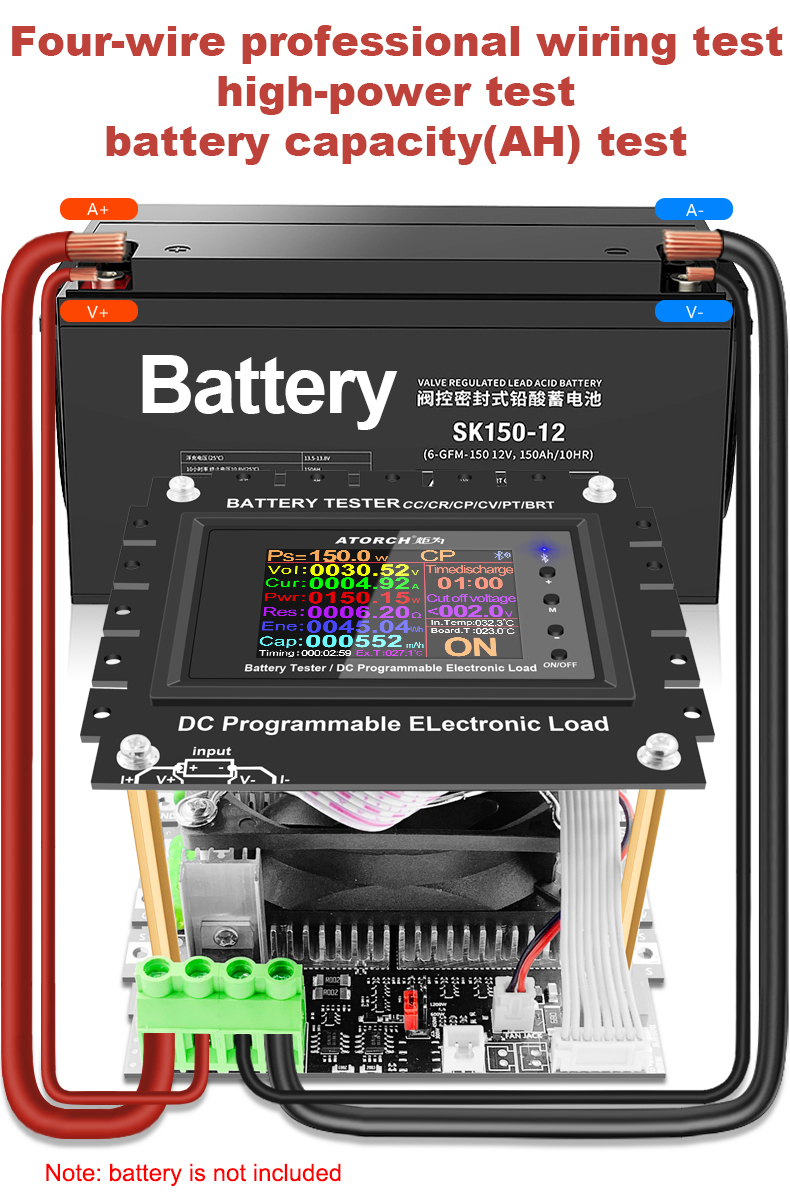

- Support 4-wire and 2-wire wiring systems. The four-wire system has higher detection accuracy and is more professional. 150W high power discharge aging test. When using the four-wire wiring method, the voltage measurement is not affected by the voltage drop of the wire, making the voltage measurement more accurate. It can be used to test various data such as voltage, current and capacity of various lithium batteries and other batteries. During long-term 150W load discharge aging test, the temperature should be maintained at about 50~80℃. Intelligent temperature control light effect fan and built-in large discharge tube make the power larger and more reliable. Test the overall capacity, use time and aging performance of batteries

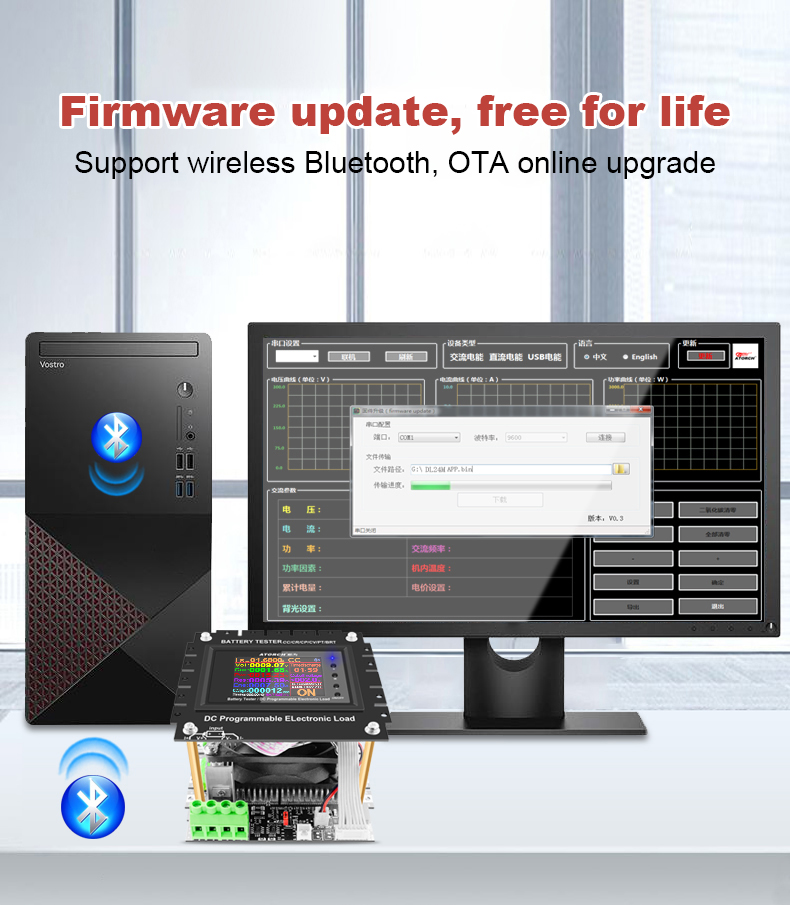

- Lifetime free firmware upgrade function. The host computer OTA Bluetooth air upgrade. Our engineers will continuously update the product firmware and release new firmware according to user needs to obtain better optimization and more functions, and provide lifetime free upgrade services
- Six operating modes: constant current operation, constant voltage operation, constant power operation, constant resistance operation, one-key measurement of internal resistance, one-key measurement of power supply

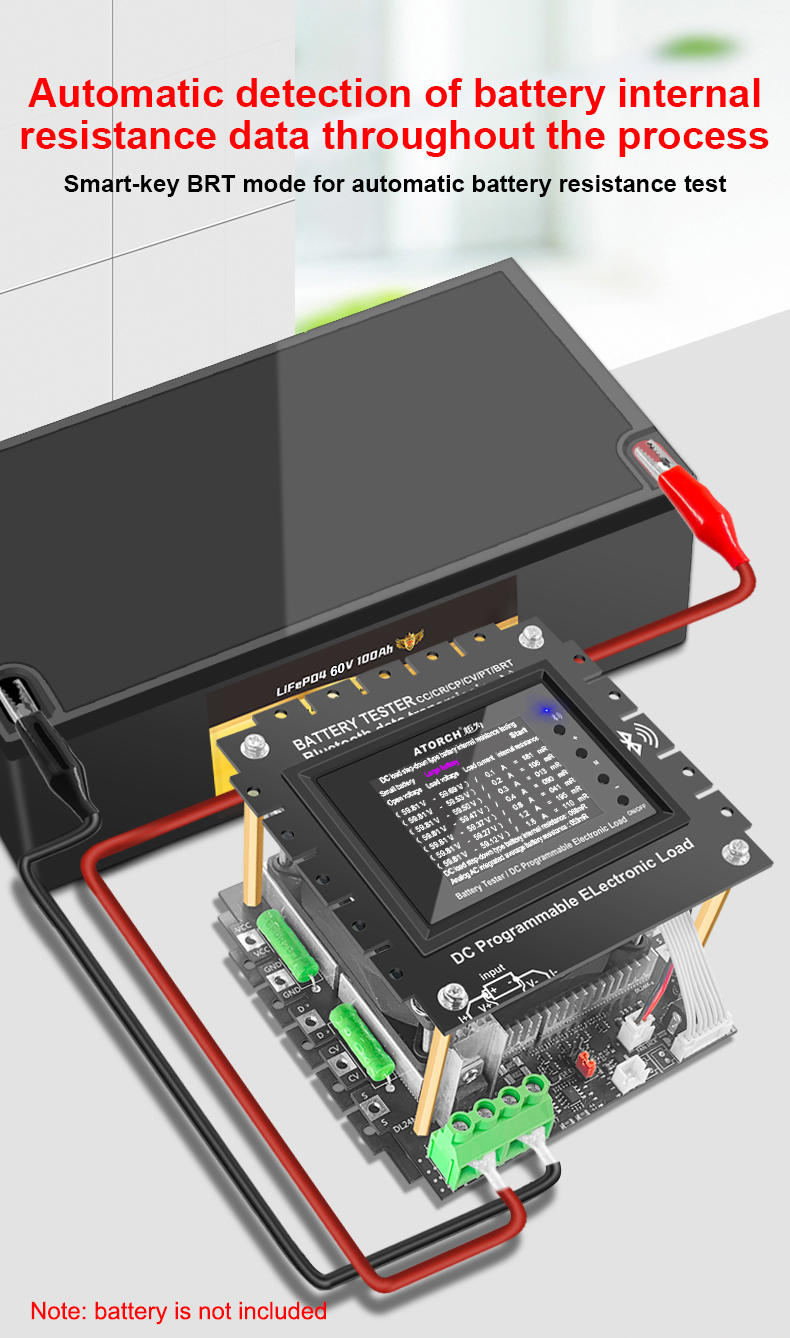

- BRT mode of automatic battery internal resistance test: Engineers research and summarize the operation logic and physical basis of countless battery internal resistance testers, and innovate again. The intelligent one-key detection of battery internal resistance results in the form of a list report truly realizes intelligence, featuring simplicity and humanization

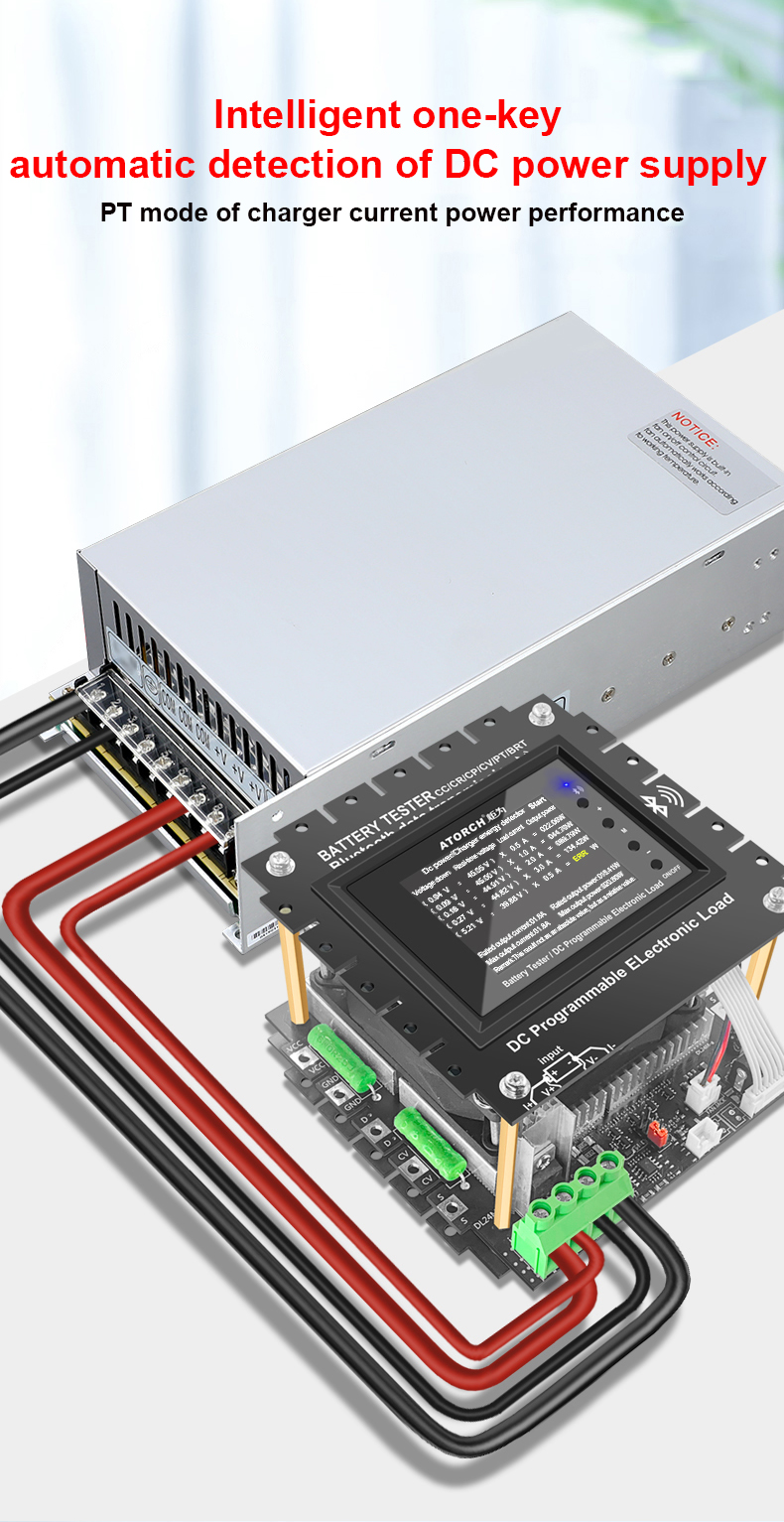

- One-key automatic detection of DC power supply. PT mode for charger current power performance. By long pressing the menu M key to the mode flashing, wait a moment after pressing the + key for PT mode, it automatically enters into the DC power supply/charger automatic-detector mode. Plug in the power supply and charger under test, and then short press the start button, and after it automatically starts running for a period of time, its report shows 4 important numerical results, making the complicated test instantly simplified and accurate, and easy to use

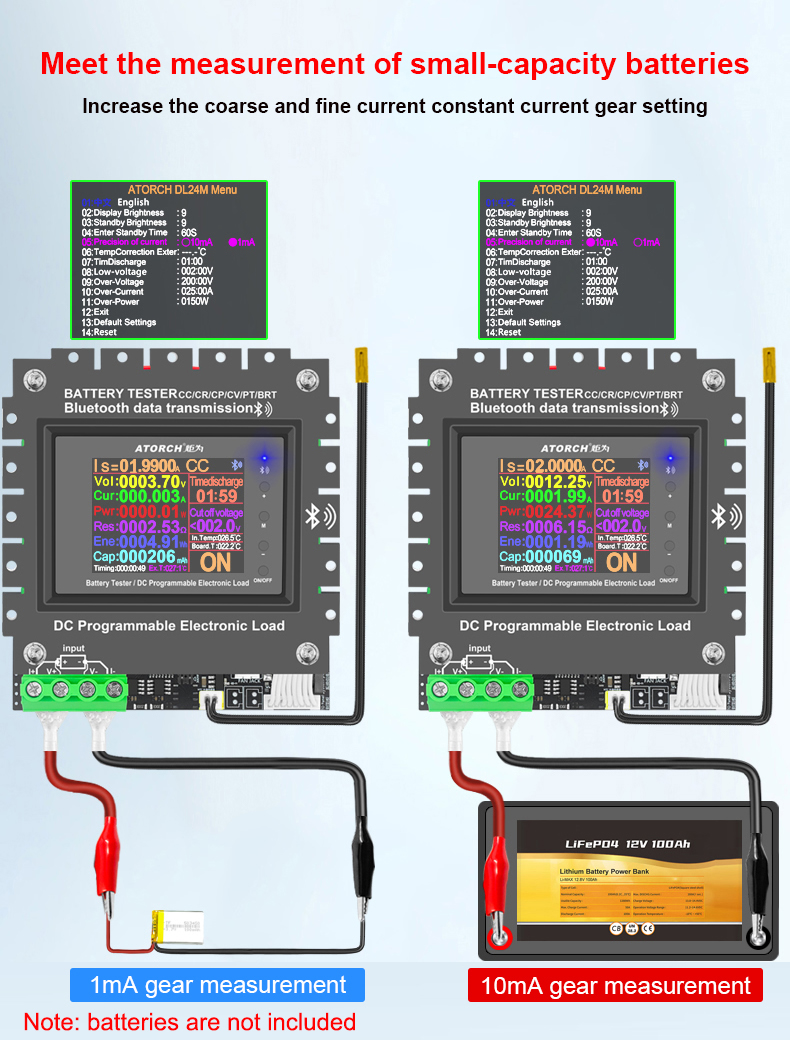

- To test small-capacity batteries; coarse and fine constant current settings. In order to meet the needs of testing ultra-small capacity when setting a small current constant current mode, the engineer has added a selection of 10mA gear and 1mA gear in the background to meet the precise test of constant current discharge at different precision resolutions for batteries of different capacities

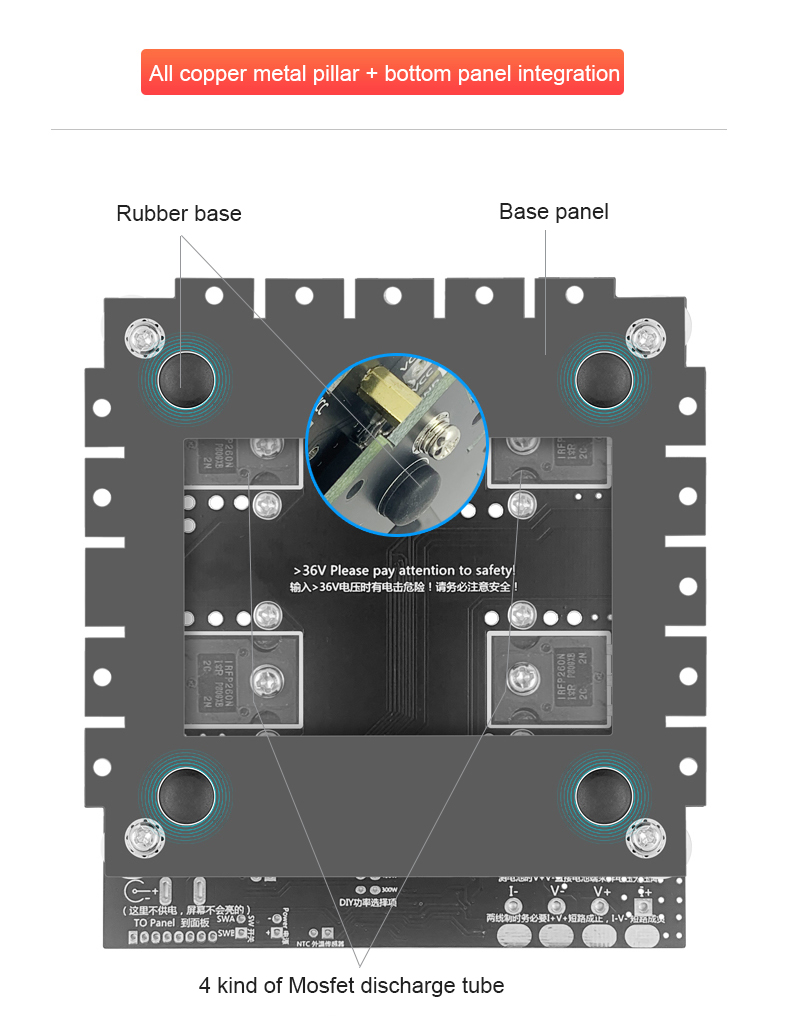

- All-copper metal column + bottom panel integration: This time, the integrated installation method of protecting the key panel and the bottom panel is adopted, which strengthens the protection of the circuit and improves the convenience of application. Good heat dissipation performance during discharge and easy placement

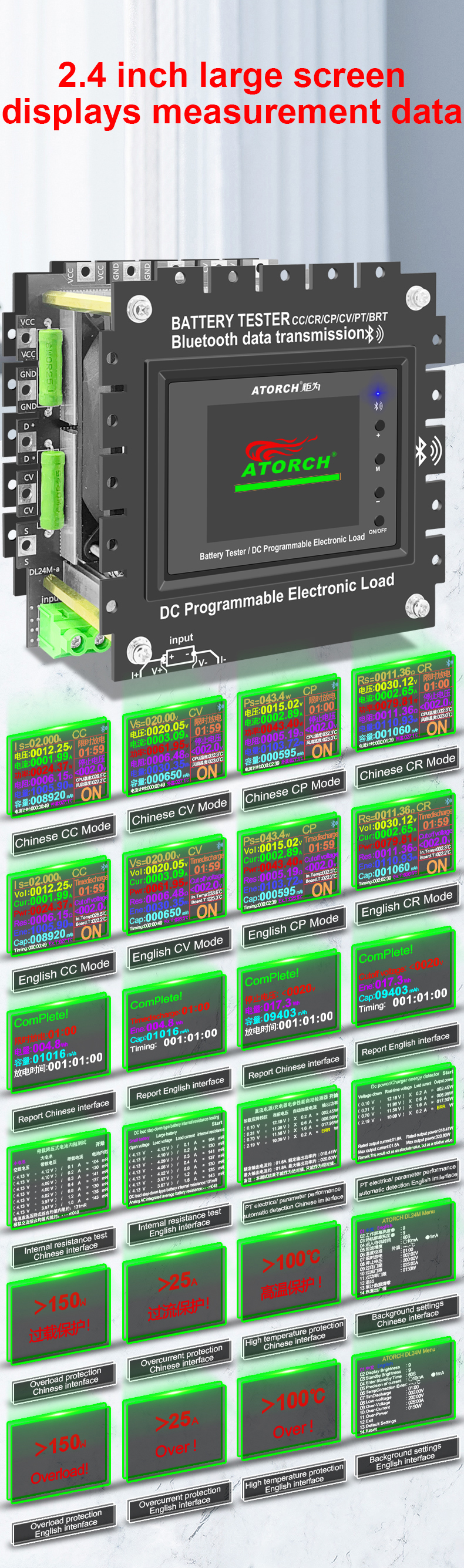

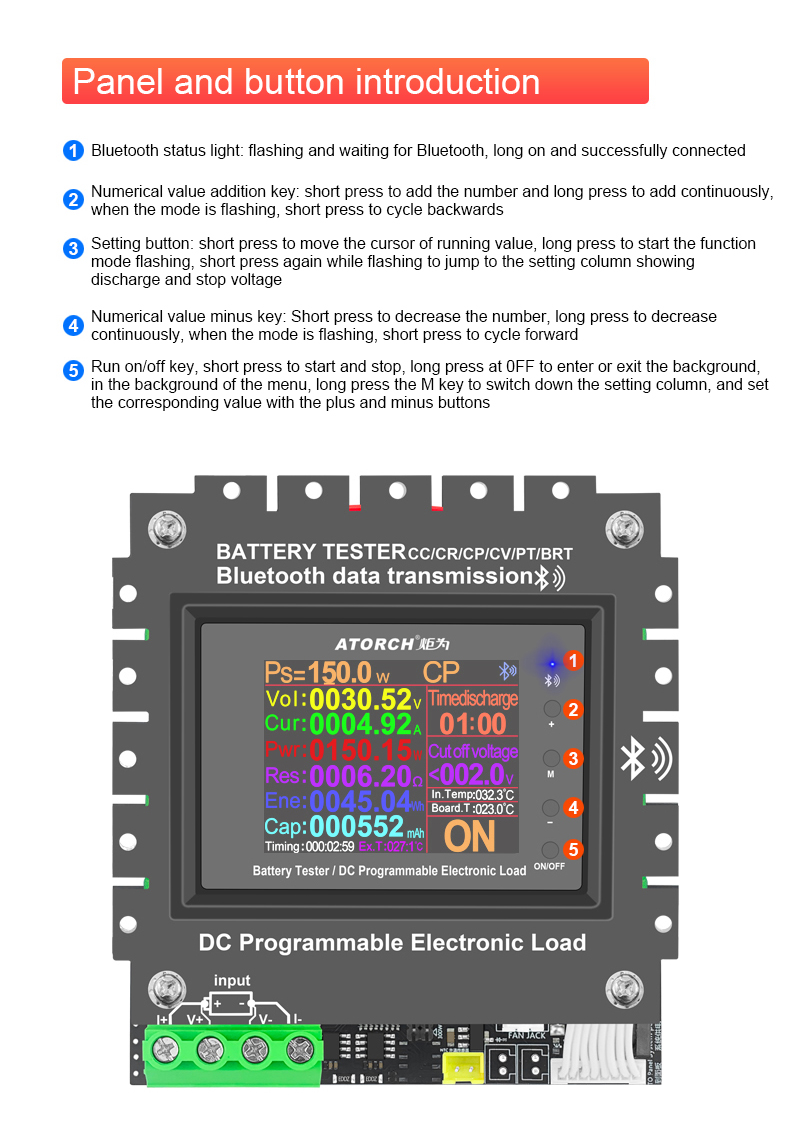

- 2.4" HD color screen: The large screen supports Chinese and English display, and can display a variety of parameters. Switch between different function interfaces by pressing buttons

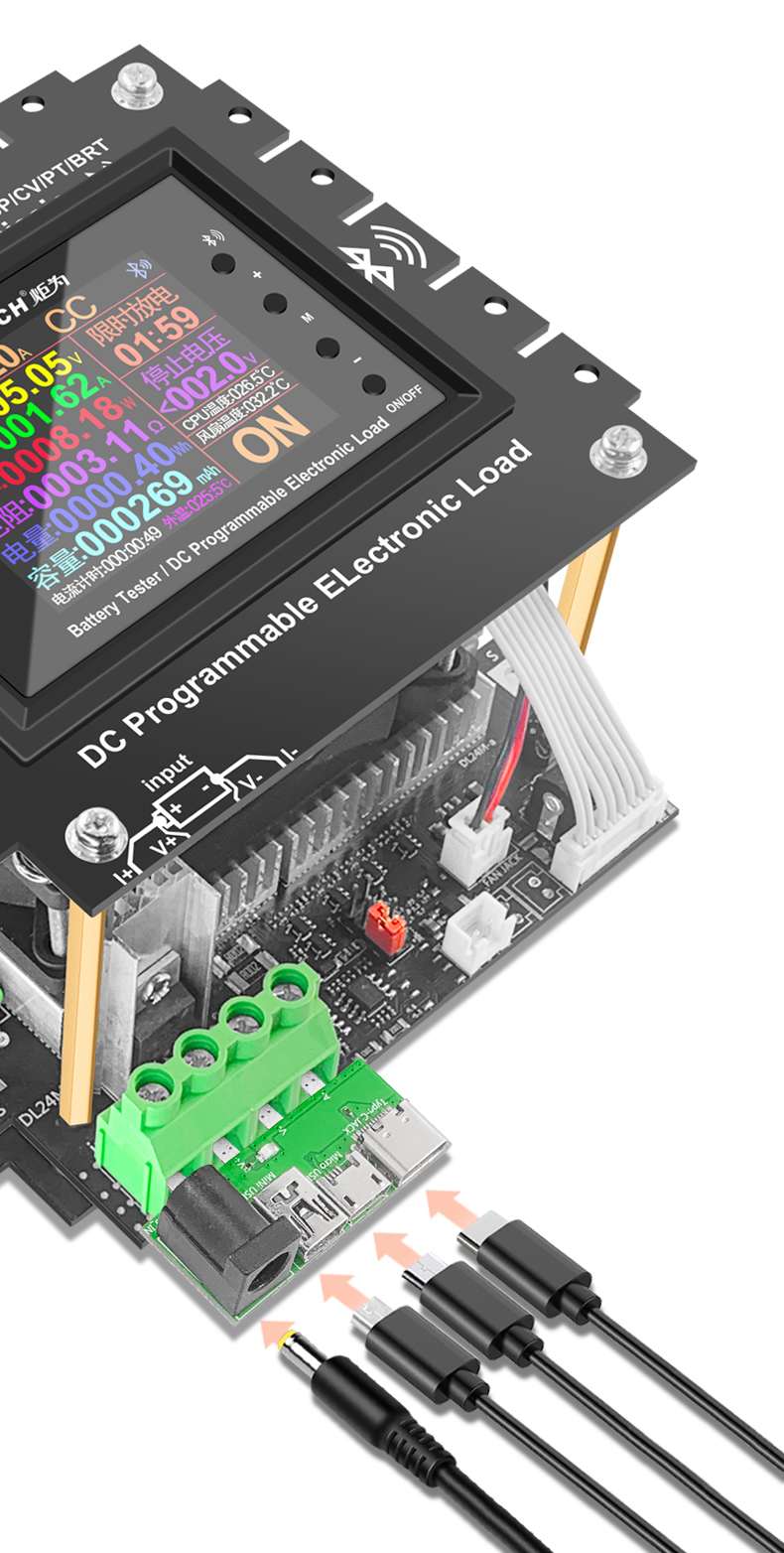

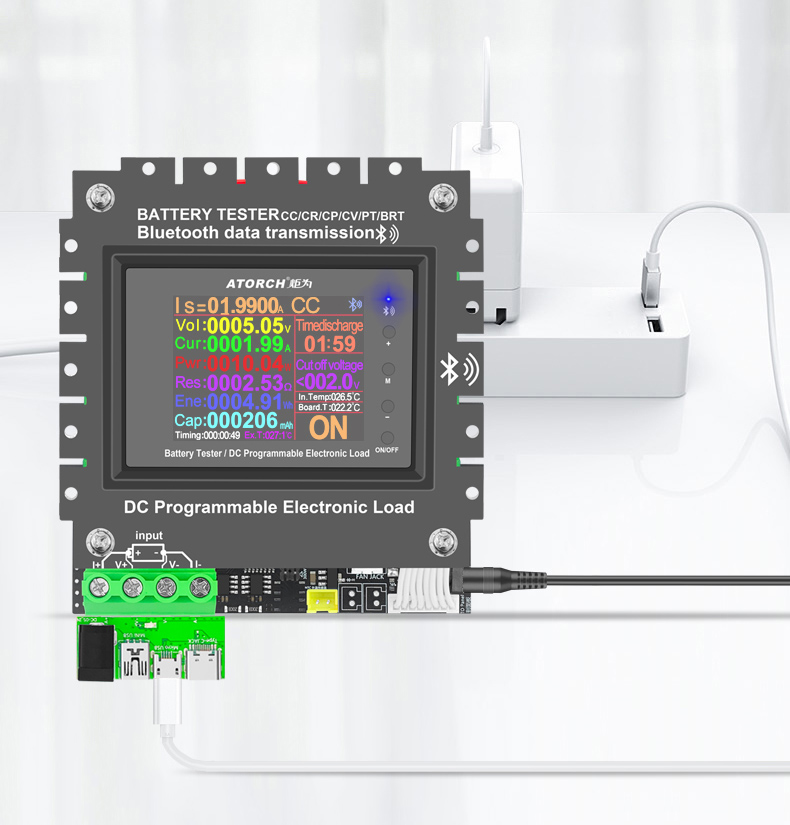

- Used to test the quality of various wires. Test the charging speed and quality of charging cables and data cables. It can test various cables such as for Android, Type-C cable and Mini, and test the voltage drop of the cables. Displays a variety of detection data on one screen

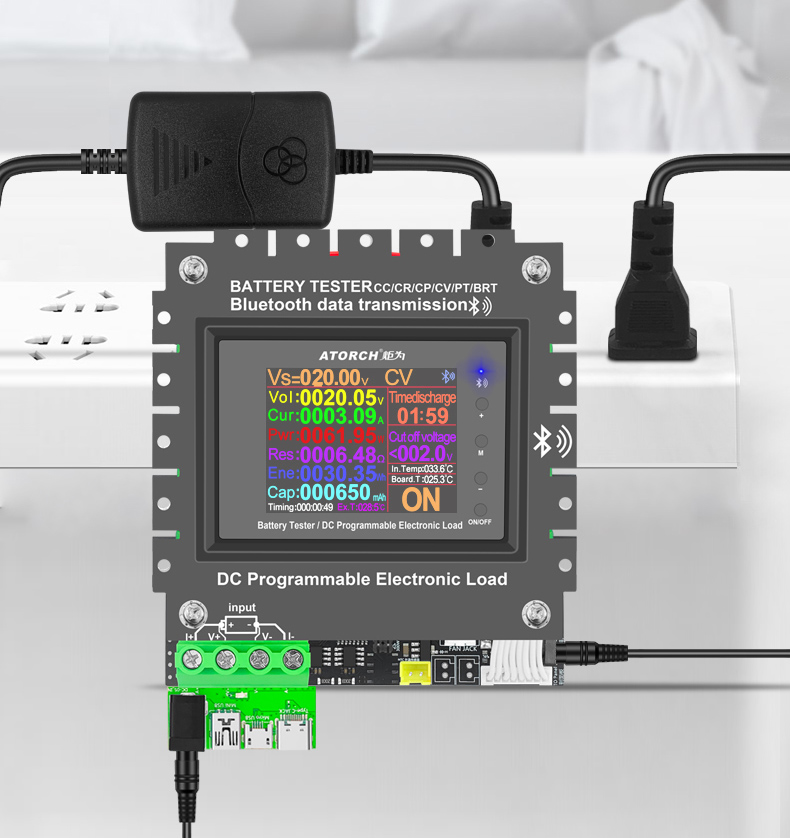

- Test parameters such as current, voltage and power of DC power adapter. Use the DC power supply to connect the DC power supply port of the load instrument, and then precisely adjust the current through the "setting" button to test the voltage and rated current value of the power supply. The DC power supply can also be aged for a long time. Powerful function and simple operation; convenient and quick test

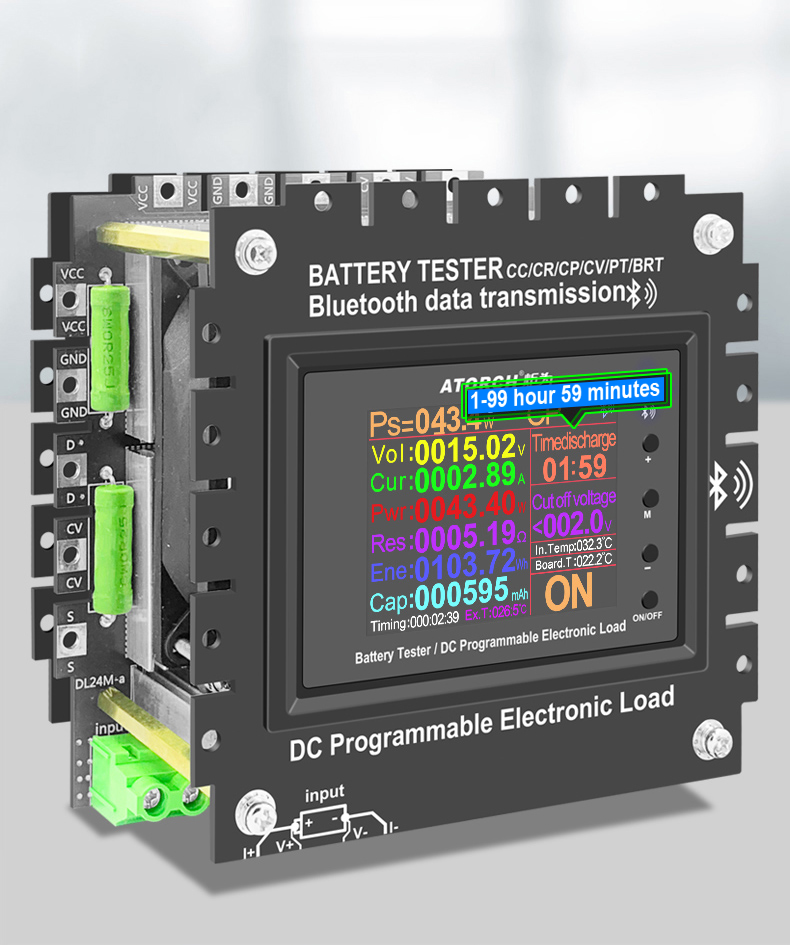

- Timed constant current discharge aging function. Long press the setting button, and then short press the setting button when it flashes to switch to "limited time discharge" to set the timing to achieve discharge aging. The time-limited discharge can be set to any duration from 1 to 99 hours and 59 minutes. When the countdown reaches the set time, the discharge will automatically stop, which can be used as a timer to turn off the aging effect of constant current discharge

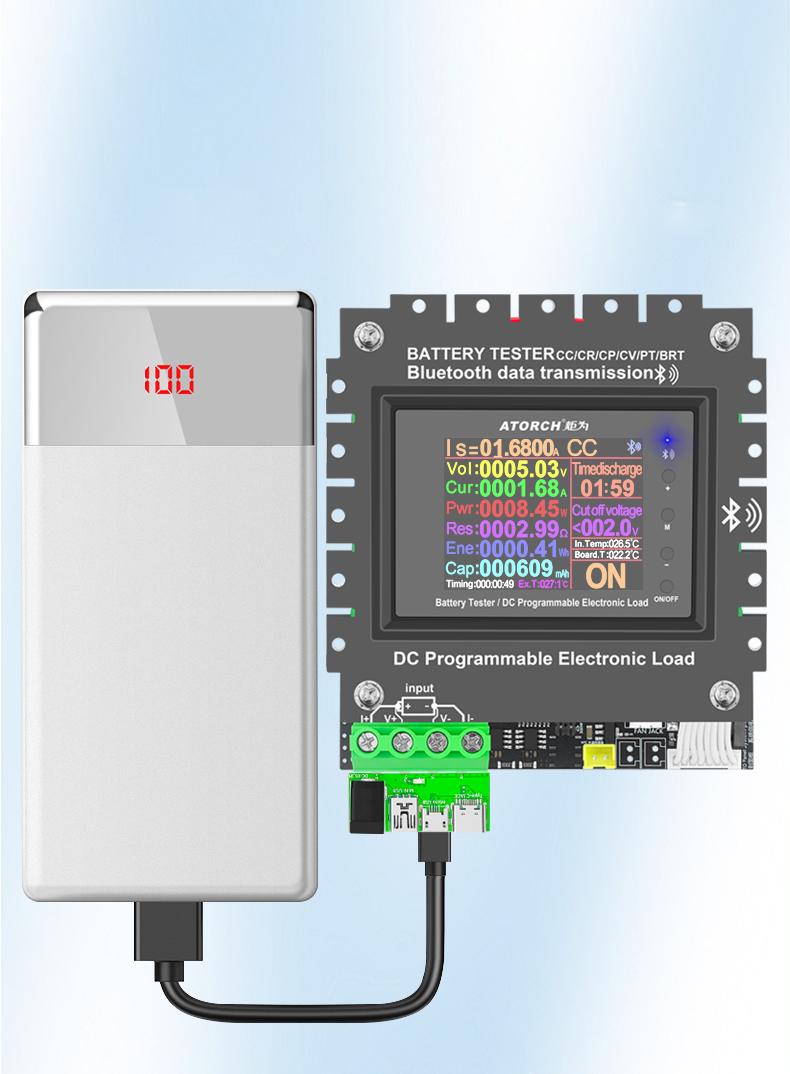

- Test the power bank capacity. We first clear the display data to zero, and then connect a power bank and the load to discharge the power bank until the power of the power bank is used up. The capacity mAh value displayed on the screen is multiplied by the ratio of lithium battery to output voltage value and charging efficiency to obtain the nominal capacity of the power bank

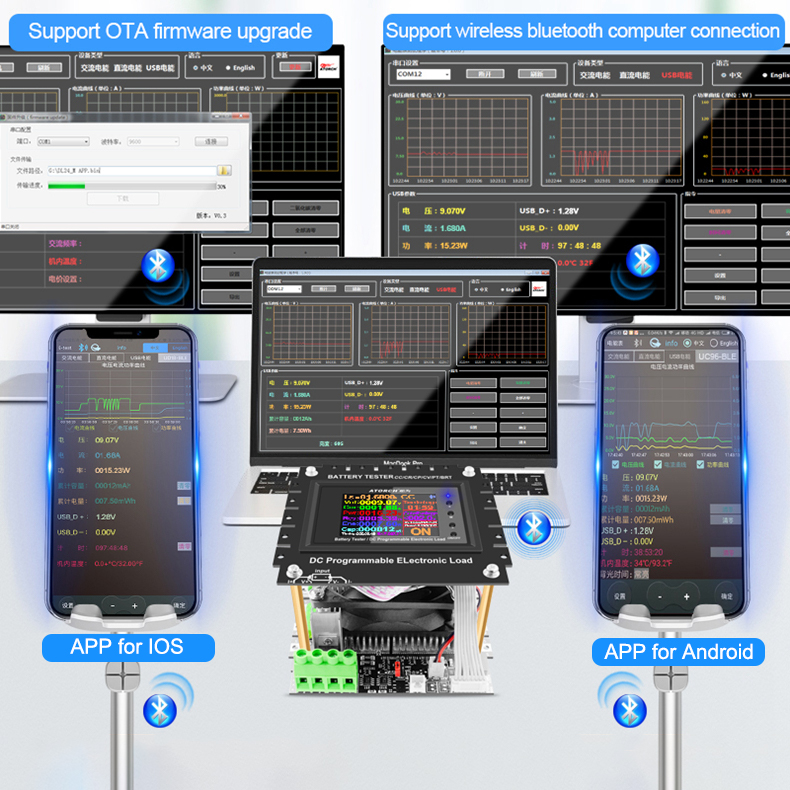

Bluetooth connection for computer and phone APP for Apple/Android:
① For Apple mobile phones: Please search E_test in the app store to download and install, then click the Bluetooth APP icon to open the software, then click the Bluetooth icon on the top of the software to enter and select DL24M-BLE to connect to the phone, and you can realize the remote control setting and measurement functions of the mobile phone. Through the mobile phone users can view the discharge status, data, discharge voltage, current, power curve, etc. of the device.
② For Android phones: Scan the QR code to download the corresponding APP software. After the installation is complete, open the software and click the Bluetooth icon to enter and select DL24M-BLE to use it online.
③ PC computer online: add the Bluetooth device as a serial device of DL24M-BLE, scan the QR code to download the corresponding APP software and save it. There is no need to install and directly open the software and select the newly added Bluetooth serial port model to be successfully used online.
④ The host computer OTA Bluetooth air upgrade. Free firmware update function. Our engineers will continue to update the product firmware and release new firmware according to user needs to obtain better optimization and more functions. Users buy once, free upgrade for life!

Technical Parameters:
- Test voltage: 0-200V
- Test current: 2mA-25A
- Discharge power: voltage X current <150W
- Constant load regulation: +/-3%+3 bytes

Attention:
- In applications, the law of energy conservation should be followed, and the voltage multiplied by the current cannot exceed the maximum power threshold, otherwise there is a risk of burning the equipment.

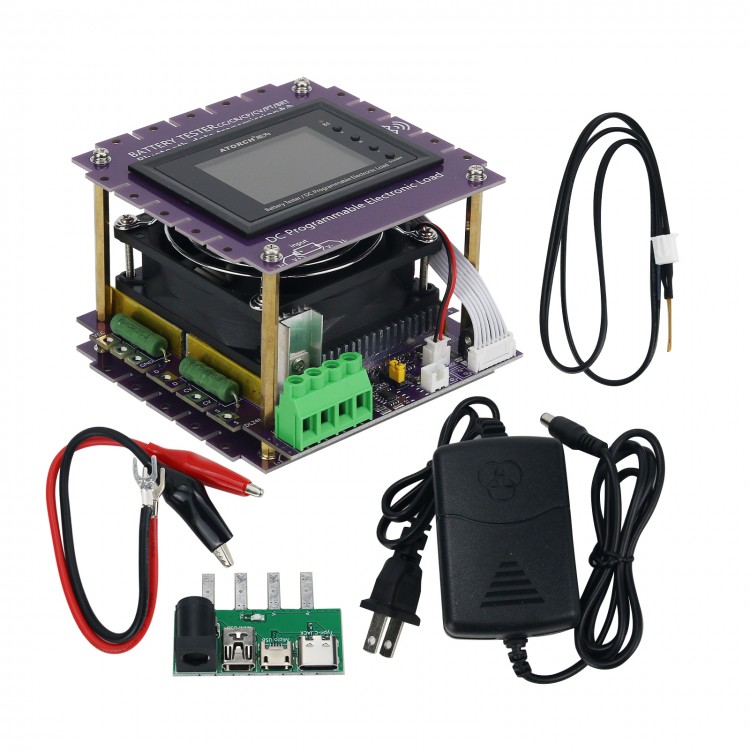

Package Included:
- 1 x Electronic Load
- 1 x DC Power Supply
- 1 x 10A Red Test Cable
- 1 x 10A Black Test Cable
- 1 x Temperature Probe
- 1 x Adapter Board for Cable Test

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
- Batteries are not included.
