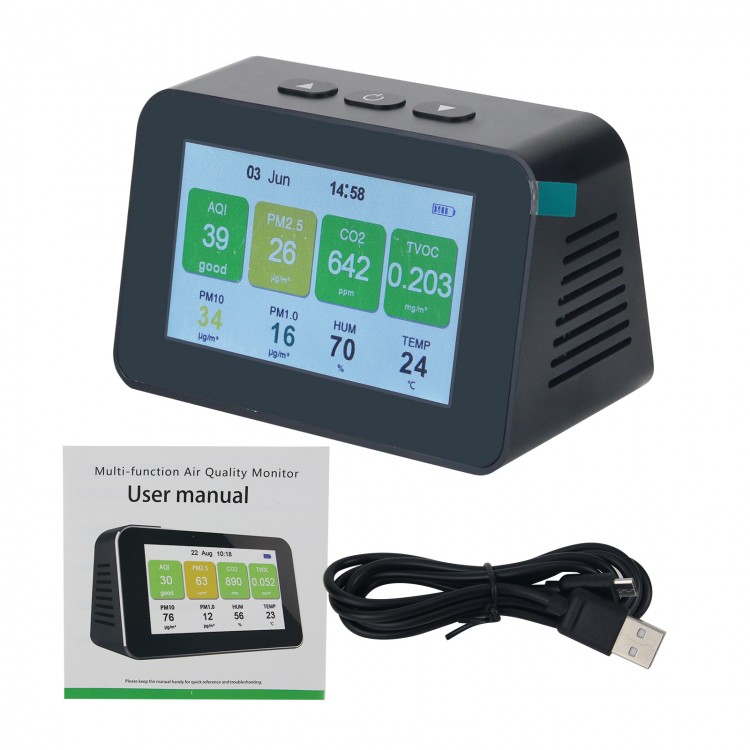

DM601 Air Quality Detector CO2 Detector PM2.5 PM1.0 PM10 TVOC Temperature Humidity Monitor

DM601 Air Quality Detector CO2 Detector PM2.5 PM1.0 PM10 TVOC Temperature Humidity Monitor

Product Introduction:
This product is a multifunctional air quality monitor that detects Carbon dioxide (CO2), Total Volatile Organic Compounds (TVOC), Particulate Matter <2.5 micron-sized particles (PM2.5/1.0/10), Temperature, and Humidity with clock and record function. As a scientific air quality detection device, it combines multiple air sensors with a built-in fan to allow real-time monitoring of Carbon dioxide (CO2), total volatile organic compounds (TVOC), PM2.5/1.0/10, temperature, and humidity on its digital LCD display.

Features:
- You can use it in your home, outdoors, in your car and wherever you want.
- With a variety of functions, you can meet a variety of detection needs.
- Independent sensors, such as carbon dioxide sensor, dust laser sensor, TVOC sensor, temperature and humidity sensor, make the detection results more accurate and professional.
- History records, you can compare the data and see the change.
- Detection range: AQI (0-500), PM2.5 (0-999ug/M³), CO2 (0-5000ppm), TVOC (0.001-9.999Mg/M³)
- Processor for ARM, fast computing speed, more accurate detection results.
- It can detect PM2.5, PM1.0, PM10, CO2, TVOC, Temperature and Humidity.

AQI air quality grade range:
Air quality level    AQI average standard value      color
Excellent                              0- 100                             green
Good                                 101 - 300                           yellow
Poor                                    300-500                            Red

Product Specifications:
- Display method: 4.3” LCD screen display, 480x270 pixels
- Atmospheric pressure: 86Kpa-106Kpa
- Detection method for CO2: Infrared (NDIR)
- Detection method for PM: Laser Scattering
- Sampling time: 1.5 seconds
- Product Size: 131*78*67.5 mm
- Detection temperature: -10℃ to 50℃
- Relative humidity: 20% - 85%
- Storage temperature: -10℃ to 60℃
- Concentration unit for CO2: PPM
- Concentration unit for PM: ug/m³
- Concentration unit for HCHO and TVOC: mg/m³
- Power source: Lithium battery with 3000mAh capacity
- 5V DC power charging via micro-USB port
- Product weight: 400g

Technical indicators:
PM2.5, PM1.0, PM10 technical indicators:
- Measuring range: 0-999mg/m³
- Resolution: 1ug/m³
- Measuring principle: Laser light Scattering

TVOC technical indicators:
- Measuring range: 0.001-9.999mg/m³
- Resolution: 0.001mg/m³
- Measuring principle: Electrochemistry

Temperature and humidity technical indicators:
- Measuring range: 0-50℃
- Humidity range: 20%-85% RH
- Measurement accuracy: ±1℃
- Measurement accuracy: ±4% RH

Package Included:
- 1 x Set of Air Quality Detector
