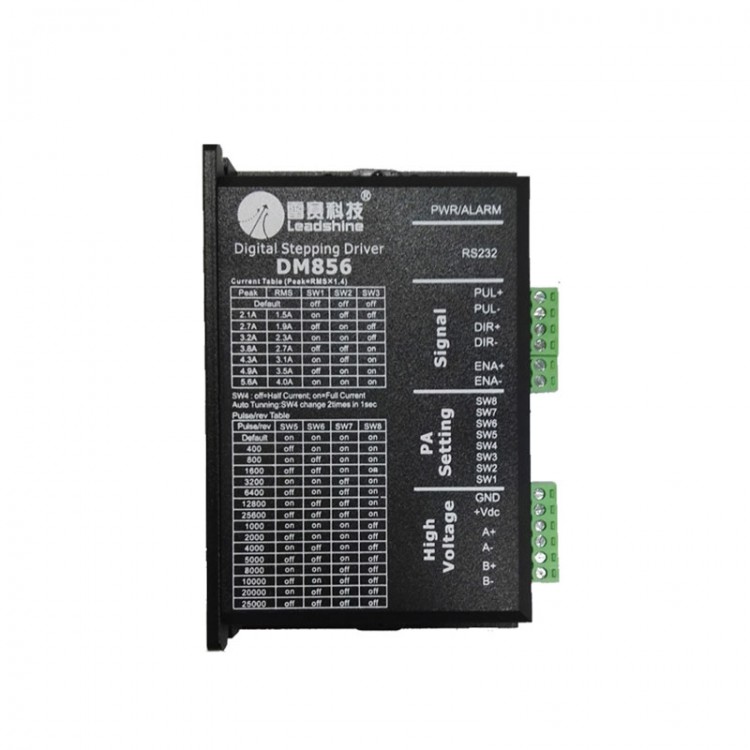

DM856 Leadshine Stepper Drive 20-80 VDC Input 0.5-5.6A Output Current Motor Driver

Availability: In stock, usually dispatched in 1 business day

  • Price:$41.99
  • Price in reward points: 420 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $41.15 $40.31 $39.05 $37.37 Contact US
Quantity:

DM856 Leadshine Stepper Drive 20-80 VDC Input 0.5-5.6A Output Current Motor


Description:
- The Leadshine DM856 is a versatility fully digital stepping driver based on a DSP with advanced control algorithm. The DM856 is the next generation of digital stepping motor controls. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. Motor auto-identification and parameter auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drivers in the markets. Its unique features make the DM856 an ideal solution for applications that require low-speed smoothness

Key Features

- Anti-Resonance, provides optimum torque and nulls mid-range instability
- Motor auto-identification and parameter auto-configuration technology, offers optimum responses with different motors
- Multi-Stepping allows a low resolution step input to produce a higher microstep output for smooth system performance
- Microstep resolutions programmable, from full-step to 102400 steps/rev
- Supply voltage up to +80 VDC
- Output current programmable, from 0.5A to 5.6A
- Pulse input frequency up to 200 KHz
- TTL compatible and optically isolated input
- Automatic idle-current reduction
- Suitable for 2-phase and 4-phase motors
- Support PUL/DIR and CW/CCW modes
- Over-voltage, over-current, phase-error protectio

Electrical Specifications:

- Output Peak Current: 0.5~5.6A (4.0 RMS)
-  Input Voltage: +20~80VDC
- Logic Signal Current: 7~16mA (Typical 10mA)
- Pulse Input Frequency: 0~200kHz
- Isolation Resistance: 500MΩ

Operating Environment and other Specifications(Tj = 25℃/77℉):

- Cooling: Natural Cooling or Forced cooling
- Environment: Avoid dust, oil fog and corrosive gases
- Ambient Temperature: 0℃ - 50℃
- Humidity: 40%RH-90%RH
-  Operating Temperature: 70℃ MAX
-  Vibration: 5.9m/s2 Max
-  Storage Temperature: -20℃ - 65℃
- Weight: Approx.280g (10oz)
