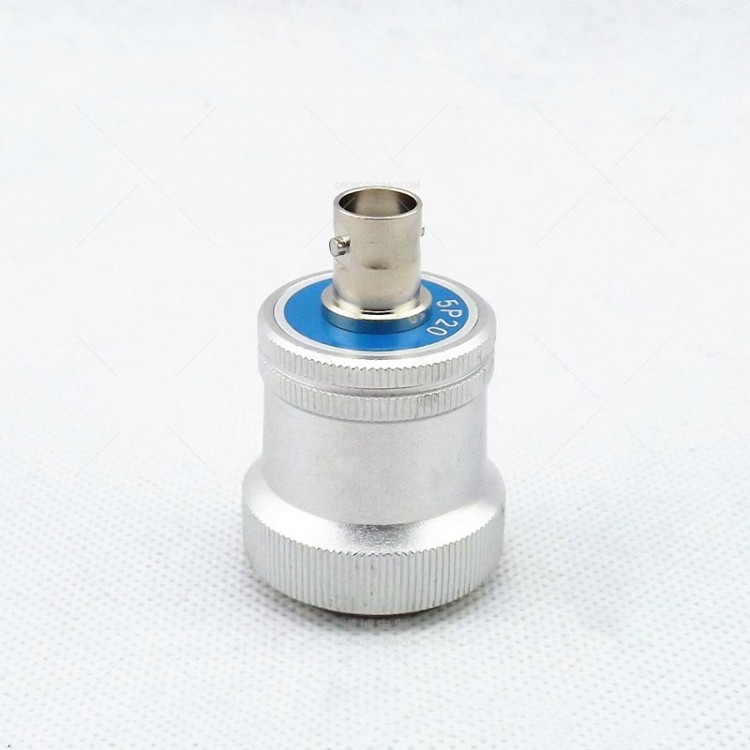

DOBO 5P20 (5MHz) Straight Ultrasonic Probe with Aluminum Alloy Shell for Ultrasonic Flaw Detectors

DOBO 5P20 (5MHz) Straight Ultrasonic Probe with Aluminum Alloy Shell for Ultrasonic Flaw Detectors

Description:
The straight probe is a single-crystal probe used for vertical flaw detection, which is mainly used for longitudinal wave flaw detection. The straight probe is composed of a socket, a shell, a protective film, a piezoelectric crystal, a sound-absorbing material, etc. More details:
• The transmission/reception of ultrasonic waves is done by the piezoelectric crystal;
• The protective film is made of corundum sheets with high hardness, which are wear-resistant;
• Aluminum alloy shell with sandblasted/passivated surface;
• Sound absorption materials are used to absorb noise from the back of the crystal;
• The socket is an electrical signal interface and is connected to the instrument via a probe cable.

The ultrasonic wave generated by the straight probe is a longitudinal beam perpendicular to the probe surface. Straight probe is widely used. Typical uses include forgings, castings, bars, plates, shafts, etc.

Features:
- The probe has good abrasion resistance
- Higher sensitivity than protective film probes
- Quality material and excellent performance
- Can be held firmly thanks to its non-slip surface
- The commonly used interface is Q9 (BNC) which can be customized

Application Fields:
- General flaw detection
- Ultrasonic flaw detection of metal parts with uncomplicated structure
- Ultrasonic flaw detection of plates, forgings, castings and blank materials
- Detection of hierarchical structure and stacked structure

Package Included:
- 1 x Ultrasonic Probe

Packaging Details:
- G.W.: 0.22kg
